MICRO SWITCH 微動開關

MS-1890
DIP mini micro switch

MS-1890

立式DIP 微動開關 FEATURE ‧ 9.80mm*8.30mm ‧ Vertical DIP ‧ Reflow soldering APPLICATIONS ‧ Mainly used in the three-dimensional design of mobile phones, CD players, wireless phones, MP3 players, digital laptops, DVDs, digital cameras, etc...


產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
工作溫度範圍/Operating temperature range-15°C ~ +70°C
操作力/Operating force120g
尺寸/Dimension9.80mm*8.30mm
機械壽命/Mechanical Life1,000,000 Cycles
接觸電阻/Contact Resistance100MΩ
絕緣電阻/Insulation resistance100 MΩ Mim. 250V DC
承受電壓/Withatand VoltageAC 500V 1 Minute

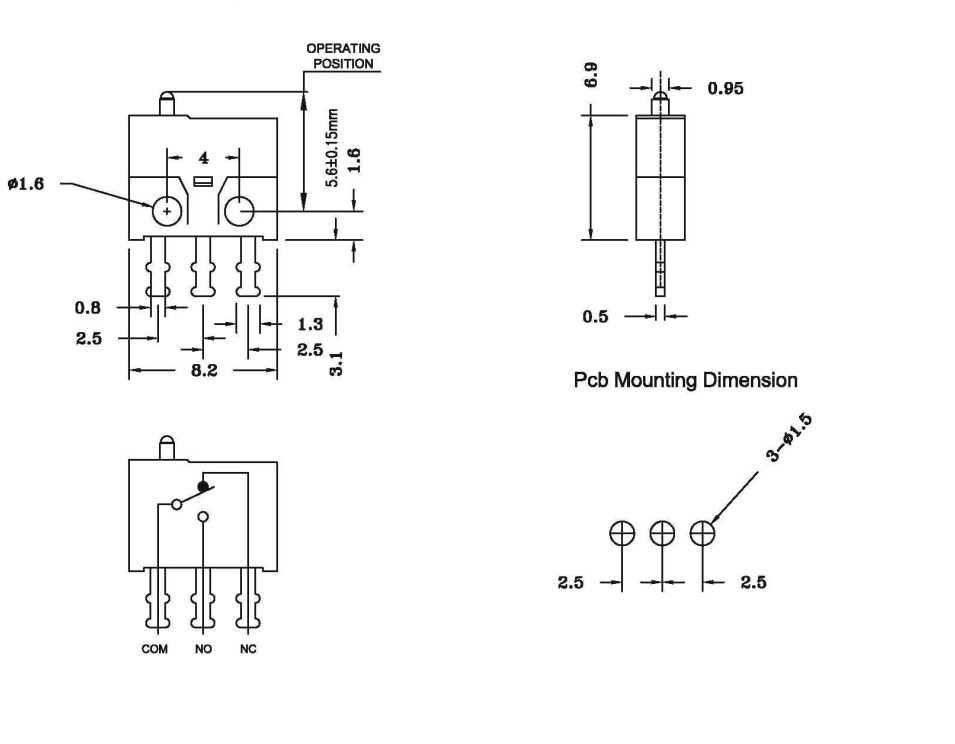

DIMENSIONS

ModelDimensions
MS-1890

MS-1890MS-1890

MS-1890
