SENSORY SWITCH 感應開關

VS-342
Vibration sensor switch

VS-342

傳感開關 FEATURE ‧Φ3.40mm ‧Vibration trigger APPLICATIONS ‧ Digital photo frame rotation, automation device, household appliances, tire pressure monitoring, Smart meter , water meter ,smart gas

檔案下載 產品詢價

產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
電壓/Voltage1.5-12V
電流/Current＜20mA
導通時間/ON timeabout 2ms
閉路電阻/Closed circuit resistance＜30A
開路電阻/Open circuit resistance＜10mA
耐溫/Temperature resistance-40℃+80℃
使用壽命/Service life2000000 times

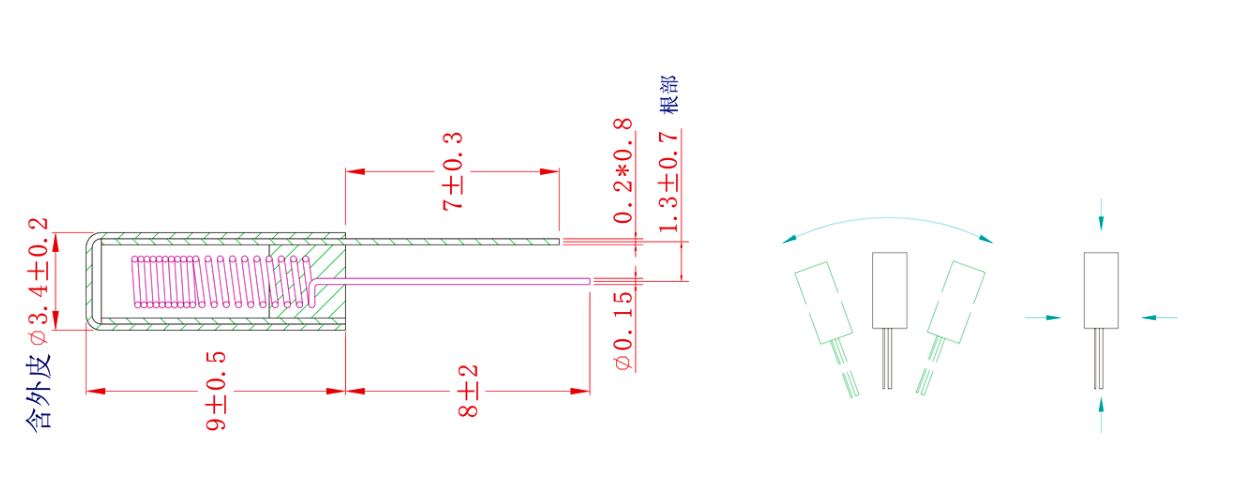

DIMENSIONS

Unit:mm

ModelDimensions

VS-342VS-342

VS-342
