MICRO SWITCH 微動開關

MS-1140
DIP micro switch

MS-1140

臥式DIP 微動開關 FEATURE ‧ 12.80mm*6.50mm ‧ Horizontal DIP APPLICATIONS ‧ Mainly used in the three-dimensional design of mobile phones, CD players, wireless phones, MP3 players, digital laptops, DVDs, digital cameras, etc...


產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
工作溫度範圍/Operating temperature range-25°C ~ +85°C
操作力/Operating force20~40g
尺寸/Dimension12.80mm*4.80mm
機械壽命/Mechanical Life1,000,000 Cycles
接觸電阻/Contact Resistance50MΩ
絕緣電阻/Insulation resistance100 MΩ Mim. 250V DC
承受電壓/Withatand VoltageAC 250 V 1 Minute

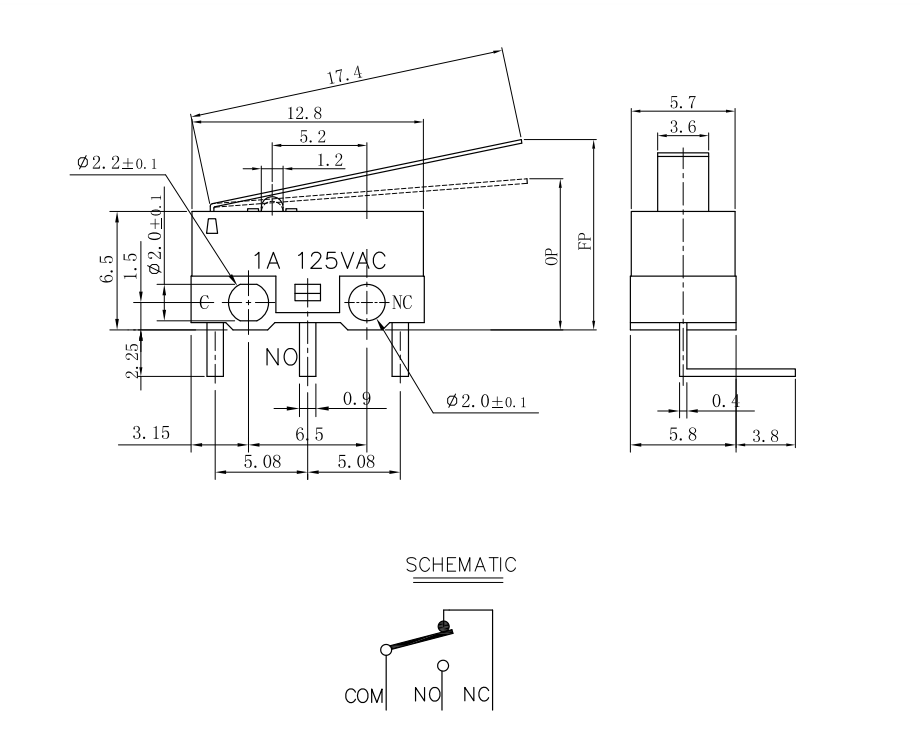

DIMENSIONS

ModelDimensions
MS-1140MS-1140


MS-1140
