MICRO SWITCH 微動開關

MS-1157
DIP micro switch

MS-1157

臥式DIP 微動開關 FEATURE ‧ 19.80mm*10.60mm ‧ Horizontal DIP APPLICATIONS ‧ Mainly used in the three-dimensional design of mobile phones, CD players, wireless phones, MP3 players, digital laptops, DVDs, digital cameras, etc...


產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
工作溫度範圍/Operating temperature range-25°C ~ +80°C
操作力/Operating force25g,40g
尺寸/Dimension19.80mm*10.60mm
機械壽命/Mechanical Life100,000 Cycles
接觸電阻/Contact Resistance50MΩ
絕緣電阻/Insulation resistance100 MΩ Mim. 500V DC
承受電壓/Withatand VoltageAC 1,000 V 1 Minute

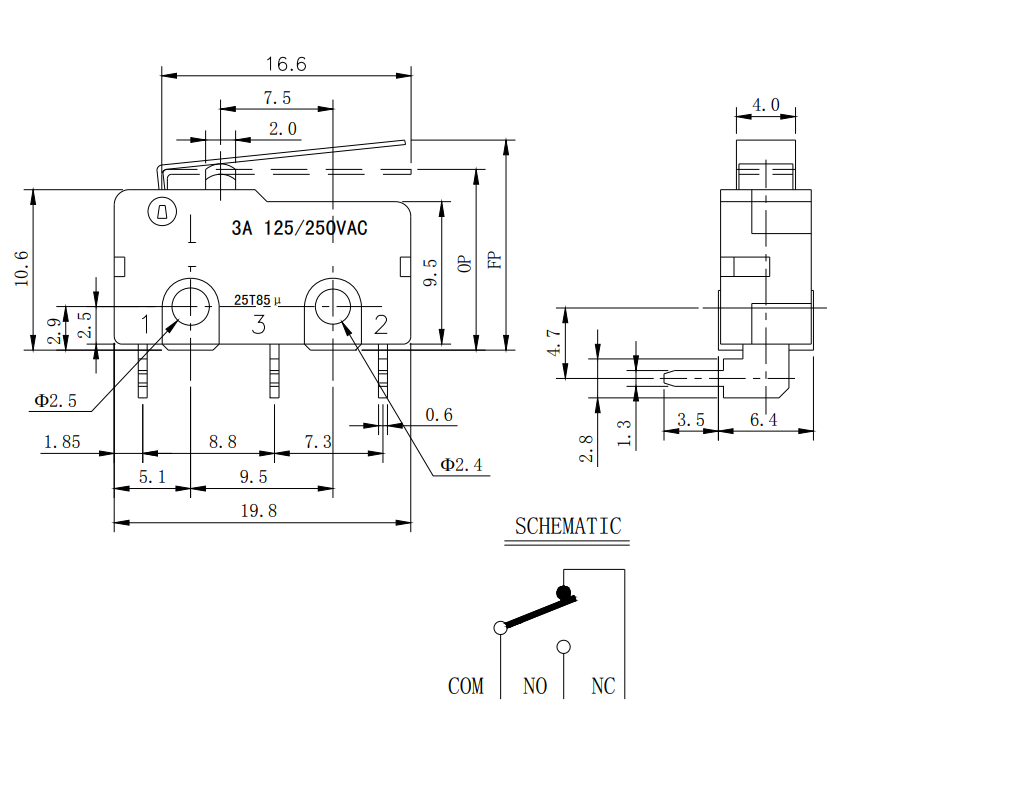

DIMENSIONS

ModelDimensions
MS-1157MS-1157

MS-1157
