RJ/ TRANSFORMER SOCKET RJ/ Transformer 插座

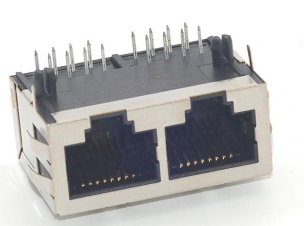

RJ45-9903 1X2 全包 扁針
RJ45 network interface series

RJ45-9903 1X2 全包 扁針

RJ45網絡接口 FEATURE ‧31.20mm*21.30mm ‧9903 1X2 full package flat needle APPLICATIONS ‧ LCD TV, router, switch, tablet PC, projector


產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
額定電壓/Rated voltage125VAC RMS
電流/Current1.5AMP
接觸電阻/Contact resistance50MILLIOHMS MAX
絕緣電阻/Insulation resistance

500VDC

介電強度/Dielectric strength

1000VAC RMS 50HZ 1MIN

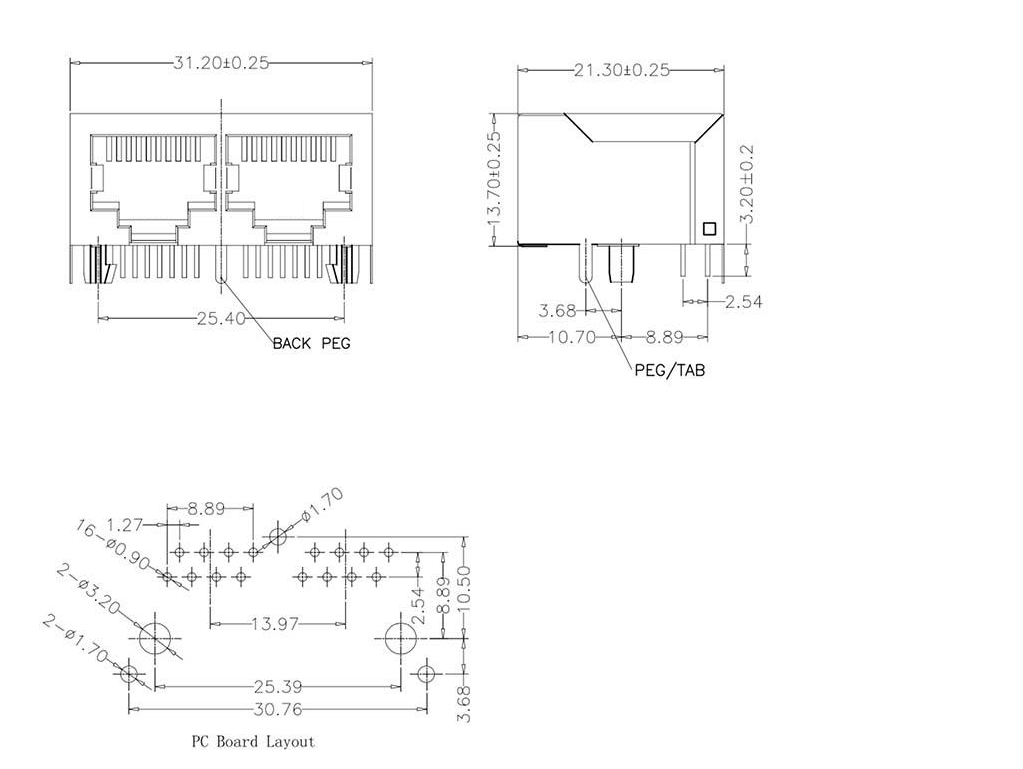

DIMENSIONS

Unit:mm

ModelDimensions

RJ45-9903 1X2 全包 扁針RJ45-9903 1X2 全包 扁針

RJ45-9903 1X2 全包 扁針
