RJ/ TRANSFORMER SOCKET RJ/ Transformer 插座

RJ45-8405 1X1 雙鐵腳式
RJ45 network interface series

RJ45-8405 1X1 雙鐵腳式

RJ45網絡接口 FEATURE ‧18.65mm*15.74mm ‧8405 1X1 double iron foot type APPLICATIONS ‧ LCD TV, router, switch, tablet PC, projector

檔案下載 產品詢價

產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
額定電壓/Rated voltage125VAC RMS
電流/Current1.5AMP
接觸電阻/Contact resistance50MILLIOHMS MAX
絕緣電阻/Insulation resistance

500VDC

介電強度/Dielectric strength

500VAC RMS 50HZ 1MIN

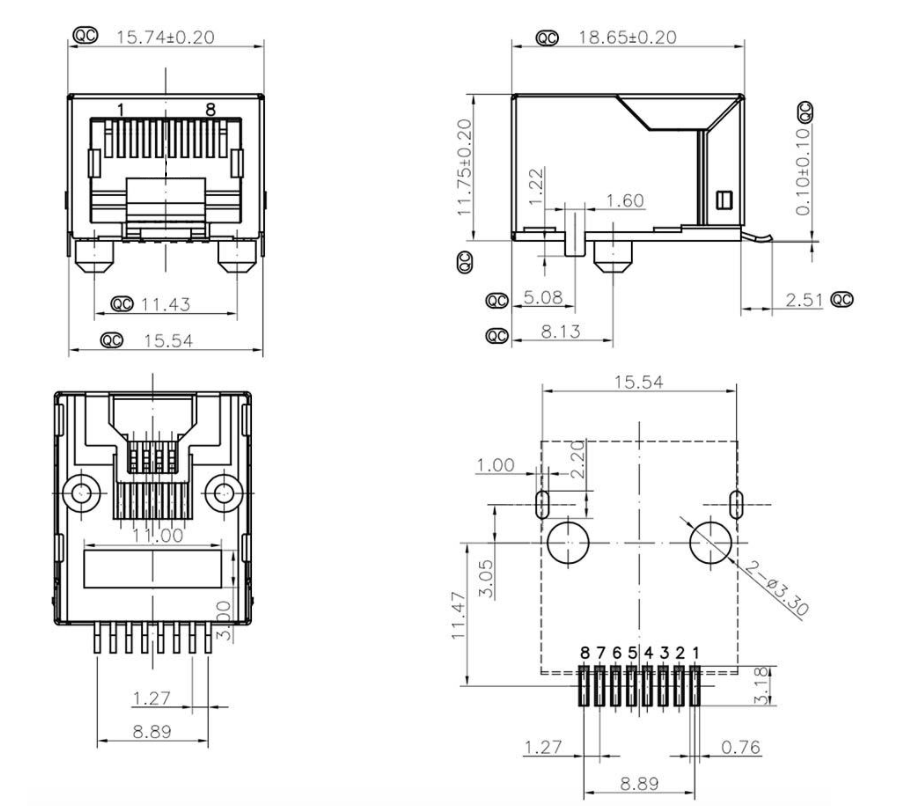

DIMENSIONS

Unit:mm

ModelDimensions

RJ45-8405 1X1 雙鐵腳式RJ45-8405 1X1 雙鐵腳式

RJ45-8405 1X1 雙鐵腳式
