RJ/ TRANSFORMER SOCKET RJ/ Transformer 插座

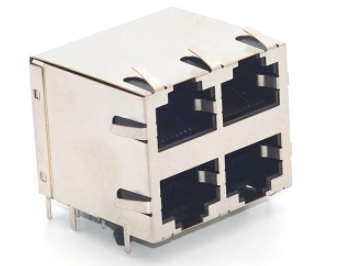

RJ45-  880A 2X2 反彈 扁針
RJ45 network interface series

RJ45- 880A 2X2 反彈 扁針

RJ45網絡接口 FEATURE ‧28.00mm*25.30mm ‧880A 2X2 rebound flat needle APPLICATIONS ‧ LCD TV, router, switch, tablet PC, projector


產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
額定電壓/Rated voltage125VAC RMS
電流/Current1.5AMP
接觸電阻/Contact resistance50MILLIOHMS MAX
絕緣電阻/Insulation resistance

500VDC

介電強度/Dielectric strength

1000VAC RMS 50HZ 1MIN

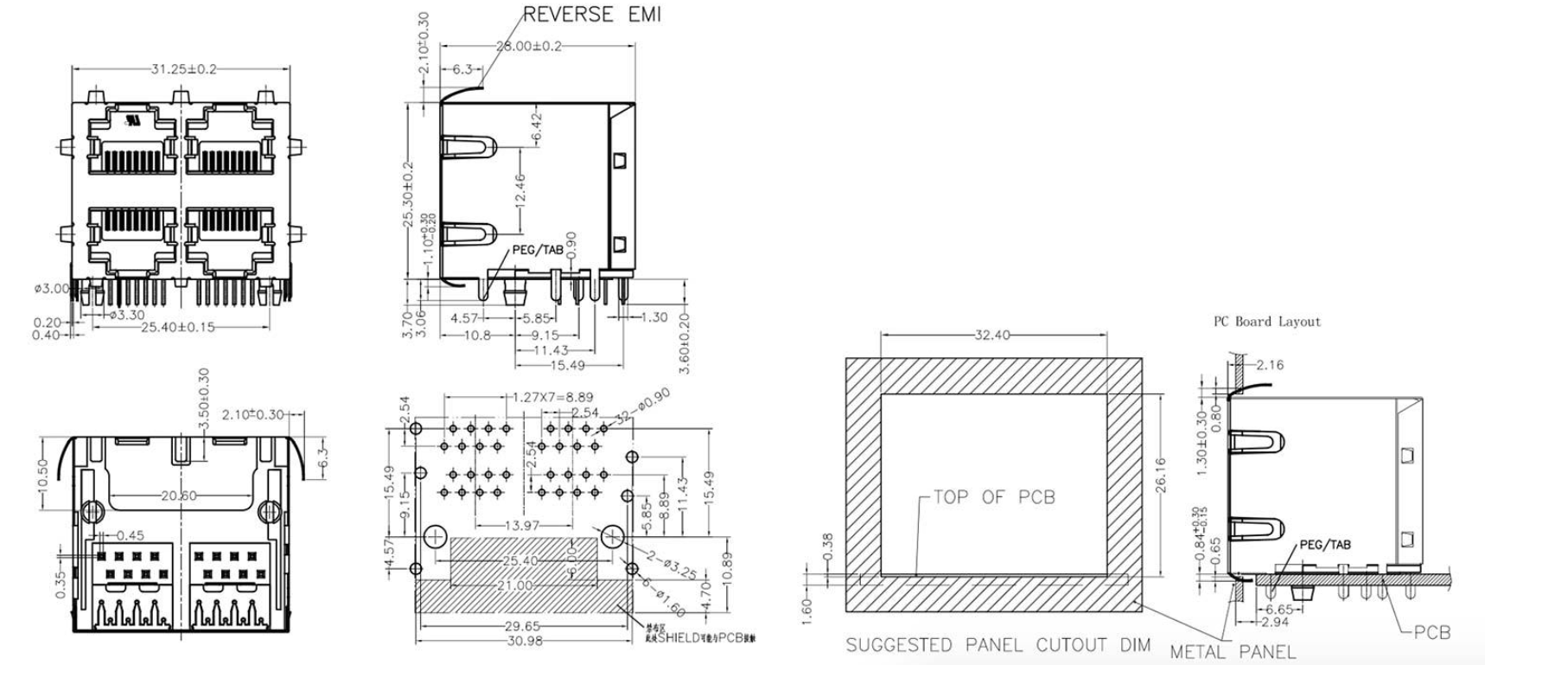

DIMENSIONS

Unit:mm

ModelDimensions

RJ45-880A 2X2 反彈 扁針RJ45-  880A 2X2 反彈 扁針

RJ45-  880A 2X2 反彈 扁針
