RJ/ TRANSFORMER SOCKET RJ/ Transformer 插座

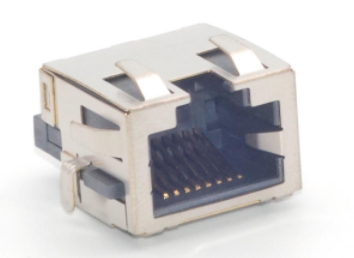

RJ45-8103 1X1 全包 無燈
RJ45 network interface series

RJ45-8103 1X1 全包 無燈

RJ45網絡接口 FEATURE ‧17.33mm*16.20mm ‧8103 1X1 full package without light APPLICATIONS ‧ LCD TV, router, switch, tablet PC, projector


產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
額定電壓/Rated voltage125VAC RMS
電流/Current1.5AMP
接觸電阻/Contact resistance50MILLIOHMS MAX
絕緣電阻/Insulation resistance

500VDC

介電強度/Dielectric strength

1000VAC RMS 50HZ 1MIN


DIMENSIONS

Unit:mm

ModelDimensions

RJ45-8103 1X1 全包 無燈RJ45-8103 1X1 全包 無燈

RJ45-8103 1X1 全包 無燈
