RJ/ TRANSFORMER SOCKET RJ/ Transformer 插座

RJ45-880B 2X1 反彈 圓針
RJ45 network interface series

RJ45-880B 2X1 反彈 圓針

RJ45網絡接口 FEATURE ‧31.23mm*17.03mm ‧880B 2X1 rebound round needle APPLICATIONS ‧ LCD TV, router, switch, tablet PC, projector


產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
額定電壓/Rated voltage125VAC RMS
電流/Current1.5AMP
接觸電阻/Contact resistance50MILLIOHMS MAX
絕緣電阻/Insulation resistance

500VDC

介電強度/Dielectric strength

1000VAC RMS 50HZ 1MIN

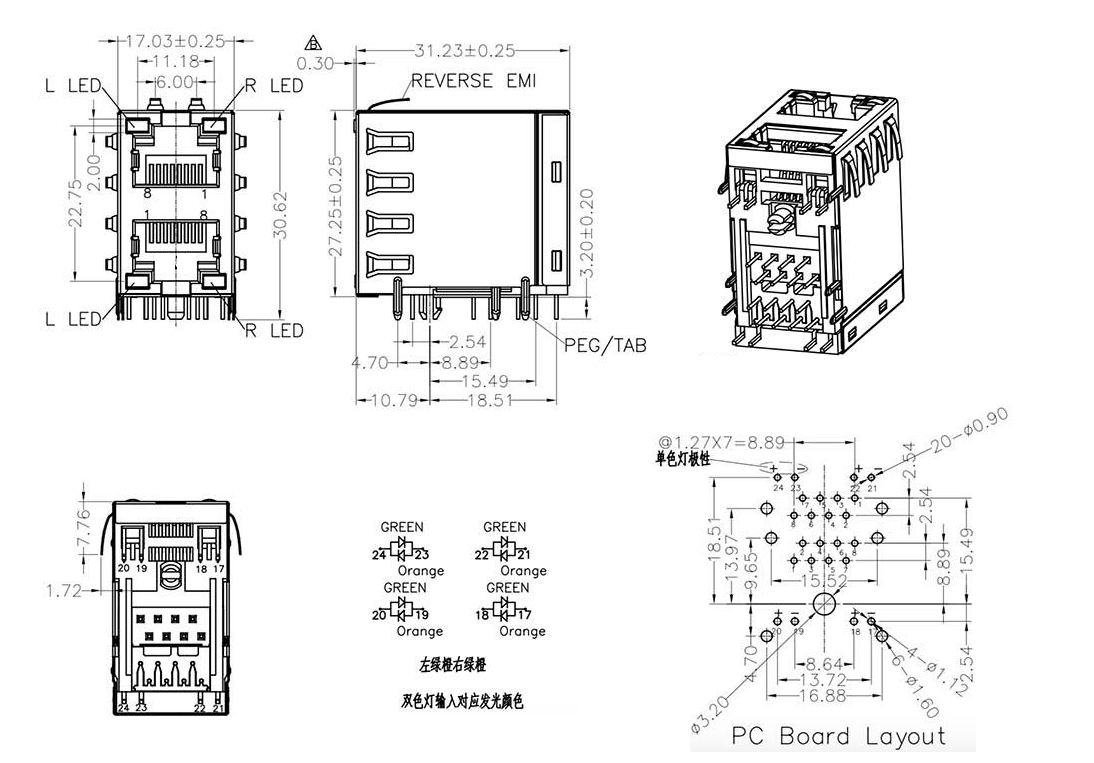

DIMENSIONS

Unit:mm

ModelDimensions

RJ45-880B 2X1 反彈 圓針RJ45-880B 2X1 反彈 圓針

RJ45-880B 2X1 反彈 圓針
