RJ/ TRANSFORMER SOCKET RJ/ Transformer 插座

RJ11-524G 1X1 4P
RJ11 network interface series

RJ11-524G 1X1 4P

RJ11網絡接口 FEATURE ‧14.00mm*13.35mm ‧524G 1X1 4P APPLICATIONS ‧ LCD TV, router, switch, tablet PC, projector

檔案下載 產品詢價

產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
額定電壓/Rated voltage125VAC RMS
電流/Current1.5AMP
接觸電阻/Contact resistance50MILLIOHMS MAX
絕緣電阻/Insulation resistance

500VDC

介電強度/Dielectric strength

1000VAC RMS 50HZ 1MIN

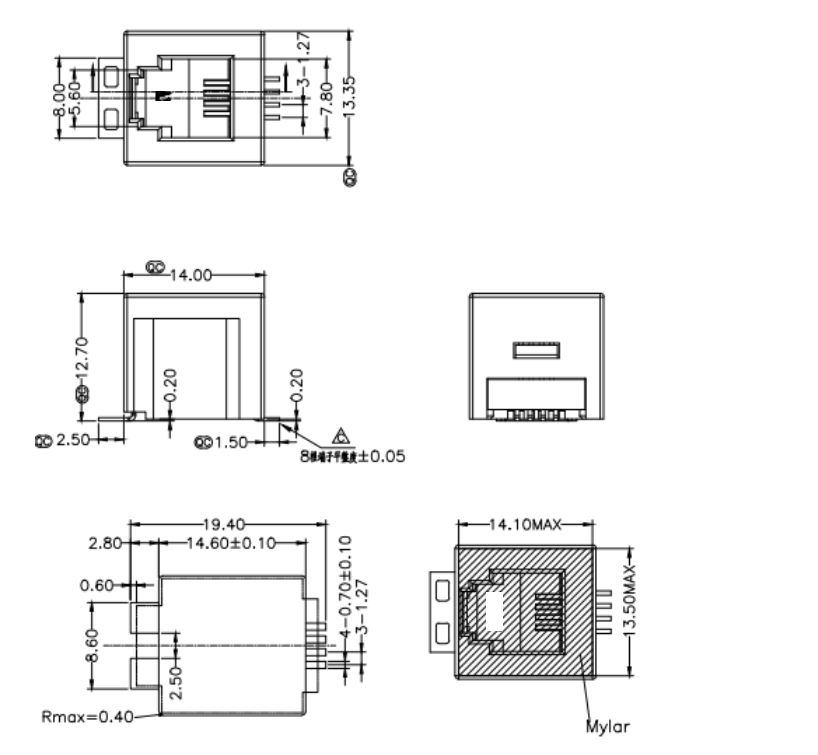

DIMENSIONS

Unit:mm

ModelDimensions

RJ11-524G 1X1 4PRJ11-524G 1X1 4P

RJ11-524G 1X1 4P
