OPTICAL FIBER SOCKET Optical 光釬插座

OFT-629
OFT-629
Optical fiber terminal + 3.5mm headphone jack

OFT-629

光纖端子+3.5mm耳機插座+接收or發射 FEATURE ‧18.10mm*10.80mm ‧Optical fiber receiving + launch APPLICATIONS ‧ Audio signal and optical signal mutual conversion, mainly used for LCD TV, set-top box, player, high-fidelity audio, DVD, optical fiber connector

檔案下載 產品詢價

產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
正向電壓/Forward Voltage2.7~5.5
工作頻率/working frequency192KHZ
尺寸/size17.90mm*8.05mm
頻率/frequency

25M

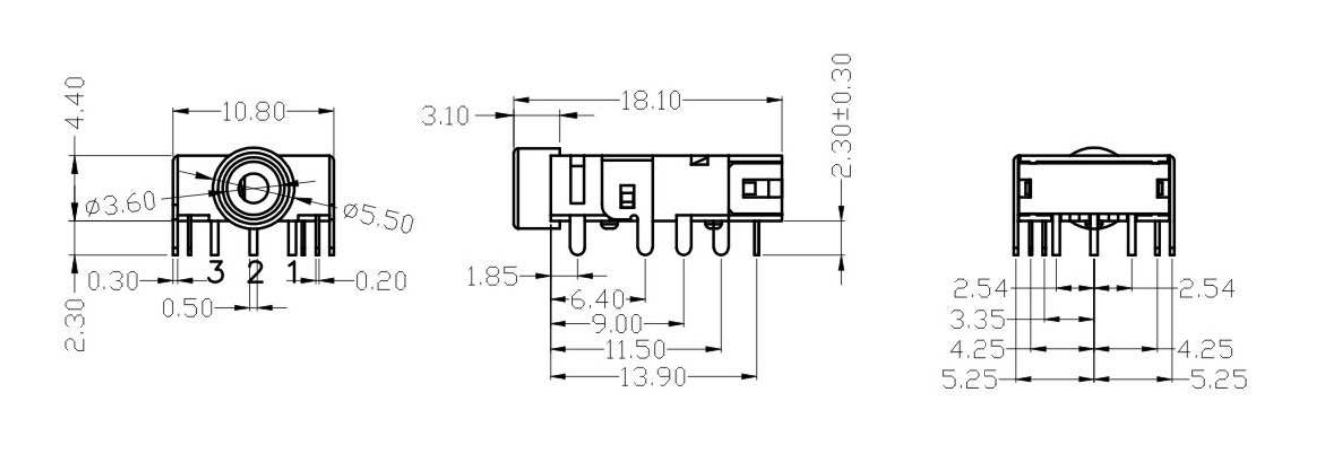

DIMENSIONS

Unit:mm

ModelDimensions

OFT-629OFT-629

OFT-629
