PIN 排針

PIN0.8-001

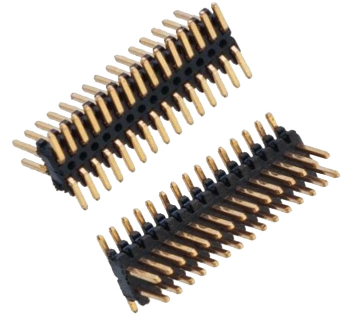

0.8mm pitch double row needle

PIN0.8-001

SMT VERTICAL / PIN CONNECTOR 0.8mm*1.2mm FEATURE ‧ 0.8mm pitch ‧ Single plastic stand APPLICATIONS ‧ Used in general connection devices in electronics, electrical appliances, meters, etc.


產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
工作溫度範圍/Operating temperature range-40℃ to +105℃
絕緣電阻/Insulation resistance

1000MΩ Min

耐壓/Withstand voltage

AC 500V/min

尺寸/Dimension0.8mm*1.20mm
額定電流/Rated current

0.75 APM

接觸阻抗/Contact resistance

20mΩ Max

DIMENSIONS



Unit:mm

ModelDimensions
PIN0.8-001PIN0.8-001



PIN0.8-001
