PIN 排針

PIN1.0-004

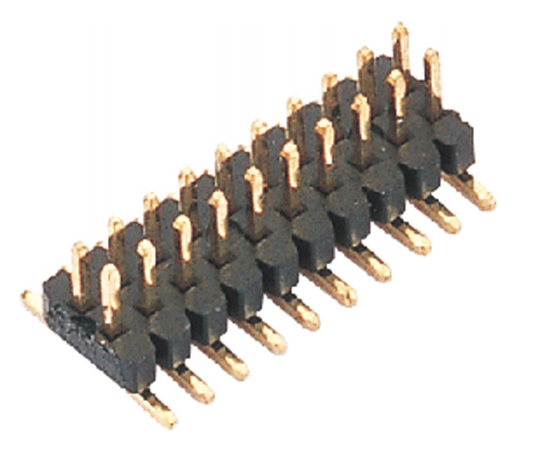

1.0mm pitch double row needle

PIN1.0-004

SMT VERTICAL / PIN CONNECTOR 1.0mm/1.50mm FEATURE ‧ 1.00mm pitch ‧ Single plastic stand APPLICATIONS ‧ Used in general connection devices in electronics, electrical appliances, meters, etc.


產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
工作溫度範圍/Operating temperature range-40℃ to +105℃
絕緣電阻/Insulation resistance

1000MΩ Min

耐壓/Withstand voltage

AC 500V/min

尺寸/Dimension1.0mm/1.5mm
額定電流/Rated current

0.75 APM

接觸阻抗/Contact resistance

20mΩ Max

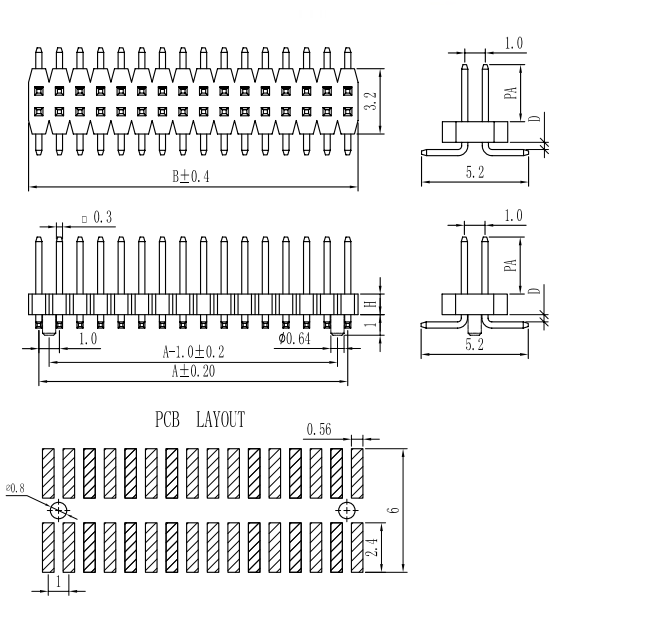

DIMENSIONS




Unit:mm

ModelDimensions

PIN1.0-004

PIN1.0-004



PIN1.0-004
