線夾

WA2-2A
Wiring clamp terminal series

WA2-2A

接線夾端子 FEATURE ‧54.50mm*24.30mm ‧Easy to install and low cost ‧With insulation, anti-vibration APPLICATIONS ‧ Transformers, circuit breakers, transformers, isolation switches, wall sleeves, audio, power amplifiers, etc.


產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
額定負荷/Rated loadAC 50V 3A

接觸電阻/Contact resistance

≤0.03Ω

絕緣電阻/Insulation resistance≥100MΩ
線保持力/Line retention

1kgf

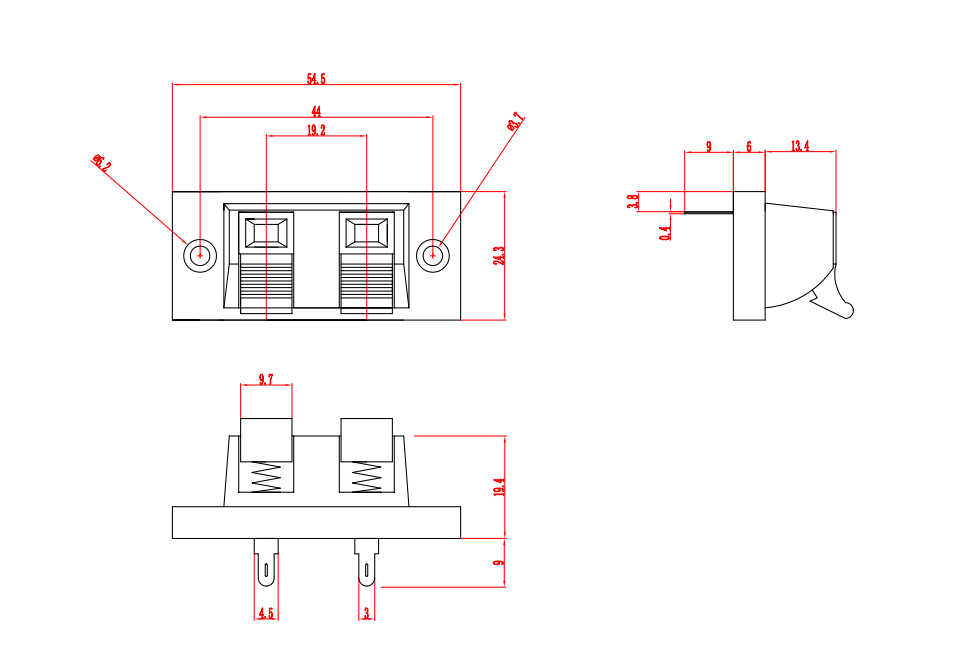

DIMENSIONS

Unit:mm

ModelDimensions

WA2-2AWA2-2A


WA2-2A
