PIN 排針

PIN1.27-007

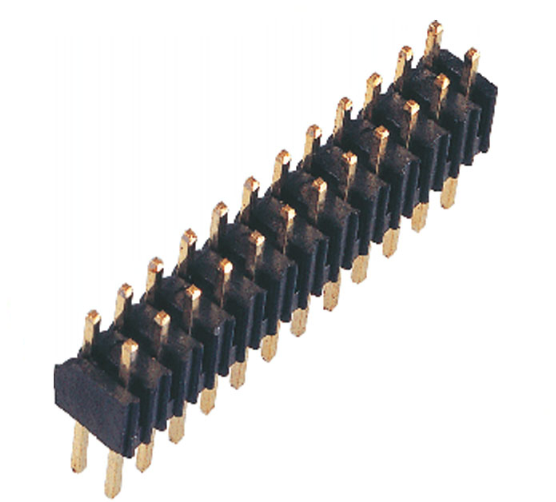

1.27mm pitch double row needle

PIN1.27-007

DIP VERTICAL / PIN CONNECTOR 1.7mm/2.54mm FEATURE ‧ 1.27mm pitch ‧ High temperature resistance APPLICATIONS ‧ Used in general connection devices in electronics, electrical appliances, meters, etc.


產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
工作溫度範圍/Operating temperature range-40℃ to +105℃
絕緣電阻/Insulation resistance

1000MΩ Min

耐壓/Withstand voltage

AC 500V/min

尺寸/Dimension1.7/2.54mm
額定電流/Rated current

1.0APM

接觸阻抗/Contact resistance

20mΩ Max

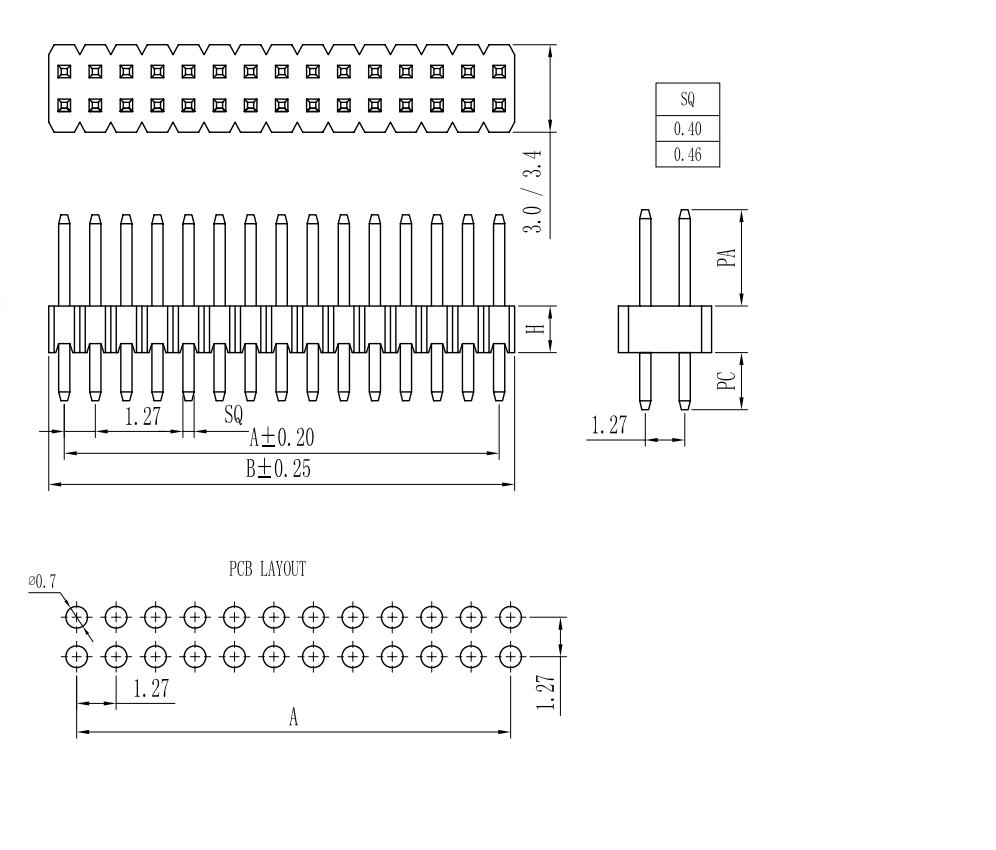

DIMENSIONS









Unit:mm

ModelDimensions

PIN1.27-007

PIN1.27-007



PIN1.27-007
