PIN 排針

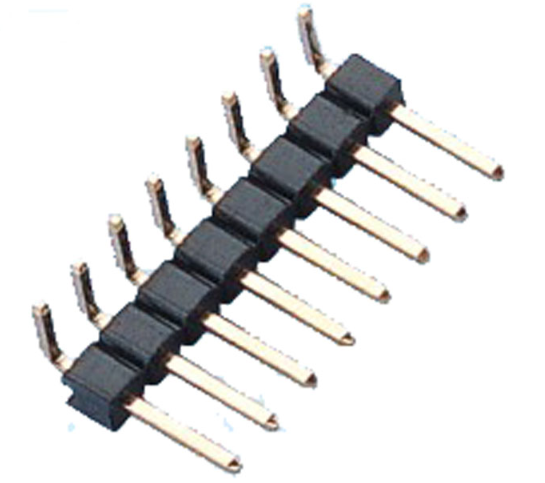

PIN2.5-015
2.5mm pitch single row needle

PIN2.5-015

Horizontal DIP / PIN CONNECTOR 3.30塑高 / 單排針 FEATURE ‧ 2.50mm pitch ‧ High temperature resistance APPLICATIONS ‧ Used in general connection devices in electronics, electrical appliances, meters, etc.


產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
工作溫度範圍/Operating temperature range-40℃ to +105℃
絕緣電阻/Insulation resistance

1000MΩ Min

耐壓/Withstand voltage

AC 500V/min

尺寸/Dimension3.30mm
額定電流/Rated current

3.0APM

接觸阻抗/Contact resistance

20mΩ Max

DIMENSIONS













Unit:mm

ModelDimensions

PIN2.5-015

PIN2.5-015



PIN2.5-015
