PIN 排針

PIN2.54-019

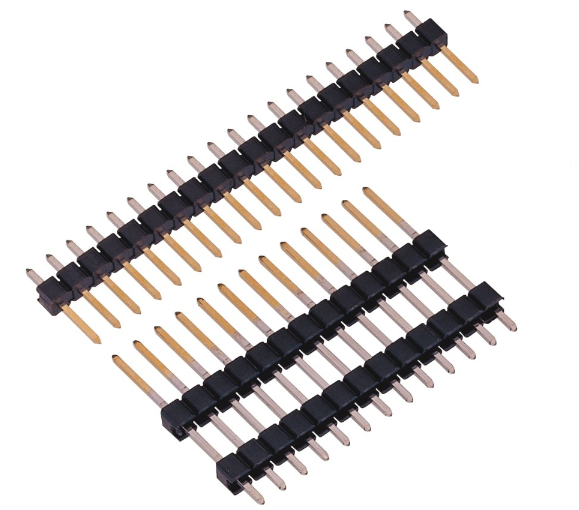

2.54mm pitch single row pin

PIN2.54-019

Horizontal DIP / PIN CONNECTOR 1.5mm、1.7mm、2.0mm、2.54mm塑高 / 單排針 FEATURE ‧ 2.54mm pitch ‧ High temperature resistance APPLICATIONS ‧ Used in general connection devices in electronics, electrical appliances, meters, etc.


產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
工作溫度範圍/Operating temperature range-40℃ to +105℃
絕緣電阻/Insulation resistance

1000MΩ Min

耐壓/Withstand voltage

AC 500V/min

尺寸/Dimension

1.5/1.7/2.0/2.54mm

額定電流/Rated current

3.0APM

接觸阻抗/Contact resistance

20mΩ Max

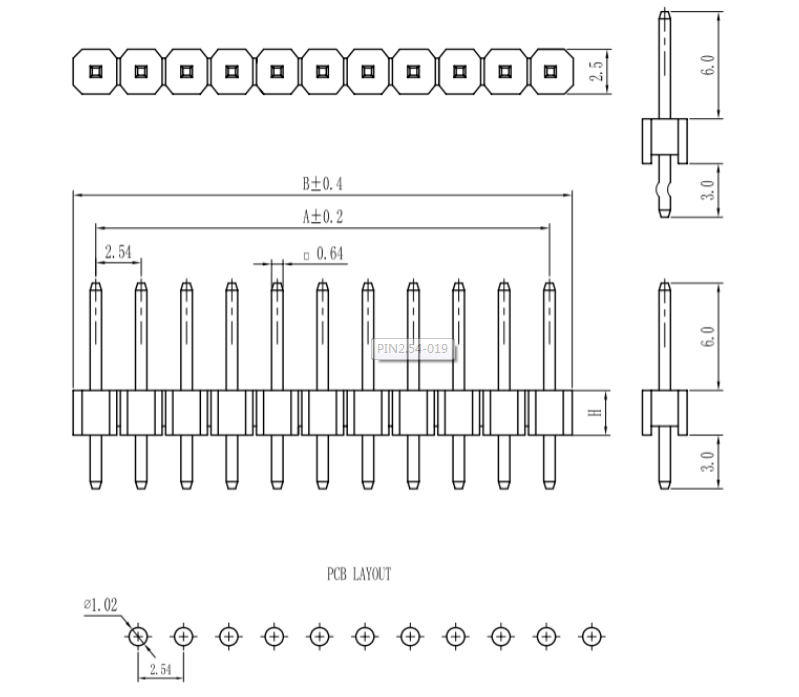

DIMENSIONS















Unit:mm

ModelDimensions

PIN2.54-019

PIN2.54-019



PIN2.54-019
