ROW MOTHER 排母

F0.8-9S

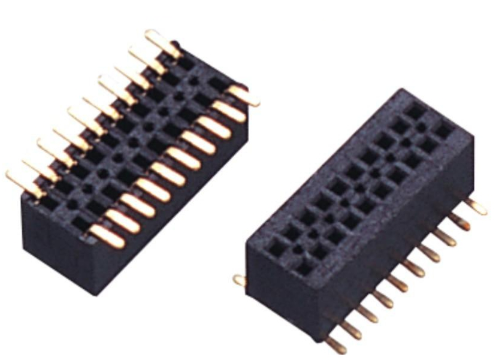

0.8mm pitch double row female

F0.8-9S

Vertical SMT / 排母連接器 3.1mm塑高 / 雙排排母 FEATURE ‧ 0.8mm pitch ‧ U type APPLICATIONS ‧ Used in PCB circuit boards in electronics, electrical appliances, and meters.


產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
工作溫度範圍/Operating temperature range-40℃ to +105℃
絕緣電阻/Insulation resistance

1000MΩ Min

耐壓/Withstand voltage

AC 500V/min

尺寸/Dimension

3.1mm

額定電流/Rated current

0.75APM

接觸阻抗/Contact resistance

20mΩ Max

DIMENSIONS





















Unit:mm

ModelDimensions

F0.8-9S

F0.8-9S



F0.8-9S
