D-SUB CONNECTOR D-SUB連接器

D-SUB-9PB-1
Personal computer terminal D-Sub DB15 male

D-SUB-9PB-1

個人電腦終端 DB9公頭 FEATURE ‧ 30.70mm*12.50mm ‧ Gold-plated contacts have long service life ‧ There are 15, 25 and 37 needles APPLICATIONS Computers, industrial control equipment, image workstations, microwave TX/RX, base stations, electronic medical equipment


產品說明

COMMON SPECIFICATIONS


CharacteristicsSpecification
插入損耗值/Voltage rating1M-18GHZ
大電壓值/Current rating300VDC-1000VDC
大電流值/Withstanding Voltage5Amps
電流量溫度特性/Insulation resistance5000PF NPO Z5U/X7R
溫度範圍/Temperature range-55°- +125°

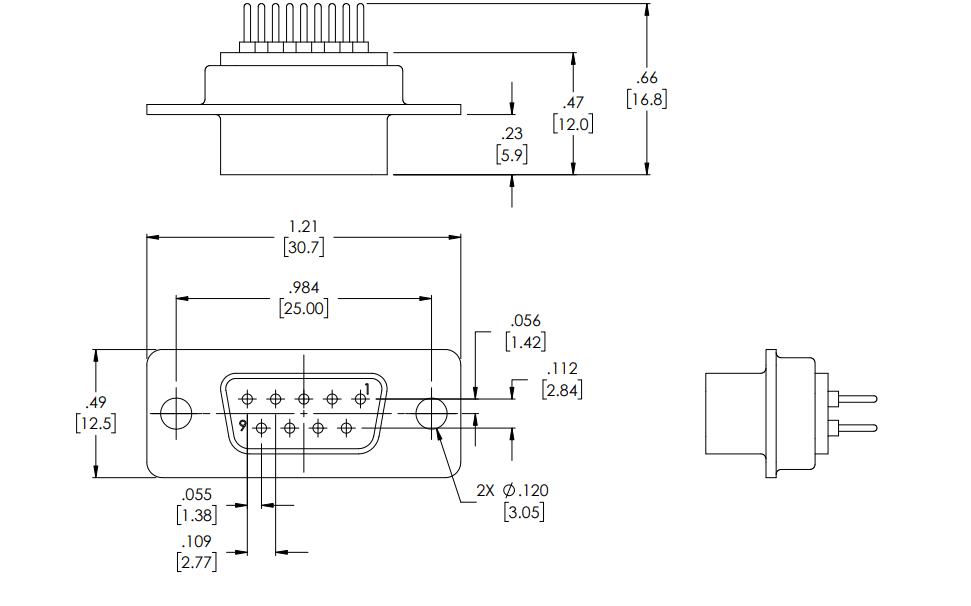

DIMENSIONS





















Unit:mm

ModelDimensions

D-SUB-9PB-1D-SUB-9PB-1



D-SUB-9PB-1
