D-SUB CONNECTOR D-SUB連接器

D-SUB-9PE
DB9 female connector for field termination

D-SUB-9PE

現場端接的 DB9 母頭 FEATURE ‧ 31.00mm*38.10mm ‧ The thickness of the panel can be installed up to 0062 inches ‧ No crimping or soldering required APPLICATIONS Computers, industrial control equipment, image workstations, microwave TX/RX, base stations, electronic medical equipment


產品說明

COMMON SPECIFICATIONS


CharacteristicsSpecification
插入損耗值/Voltage rating1M-18GHZ
大電壓值/Current rating300VDC-1000VDC
大電流值/Withstanding Voltage5Amps
電流量溫度特性/Insulation resistance5000PF NPO Z5U/X7R
溫度範圍/Temperature range-55°- +125°

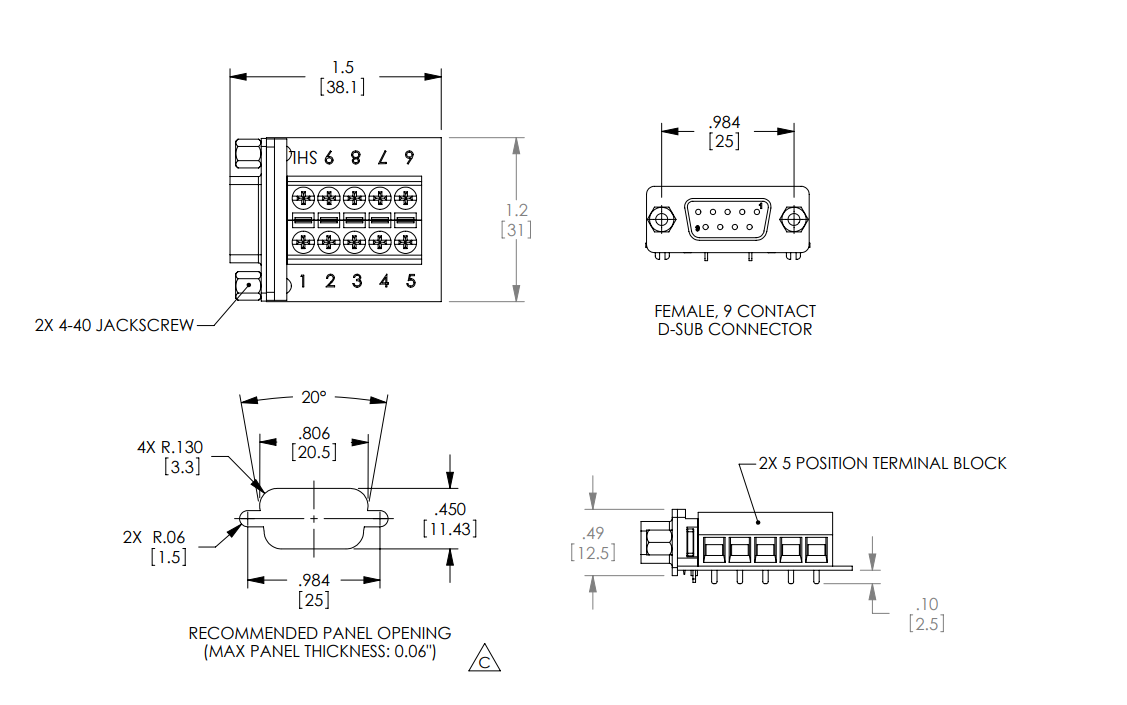

DIMENSIONS





















Unit:mm

ModelDimensions

D-SUB-9PED-SUB-9PE



D-SUB-9PE
