防水USB插座

USBM-1467
Micro USB horizontal sticker 5-contact female socket

USBM-1467

防水Micro FEATURE ‧ 8.61mm*4.83mm ‧ 180 degrees SMD ‧ 5-contact female socket APPLICATIONS ‧ Used in mobile, audio-visual, automotive electronics, multimedia, electrical appliances, Electronic toys visible interphone MP3, MP4, DVD


產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
额定电流/Current Rating1.8A
额定电压/Voltage Rating30VAC
接触电阻/Contact Resistance30 mΩ Max
温度/temperature range-20℃~60℃
绝缘电阻/Insulation Resistance100 MΩ Min

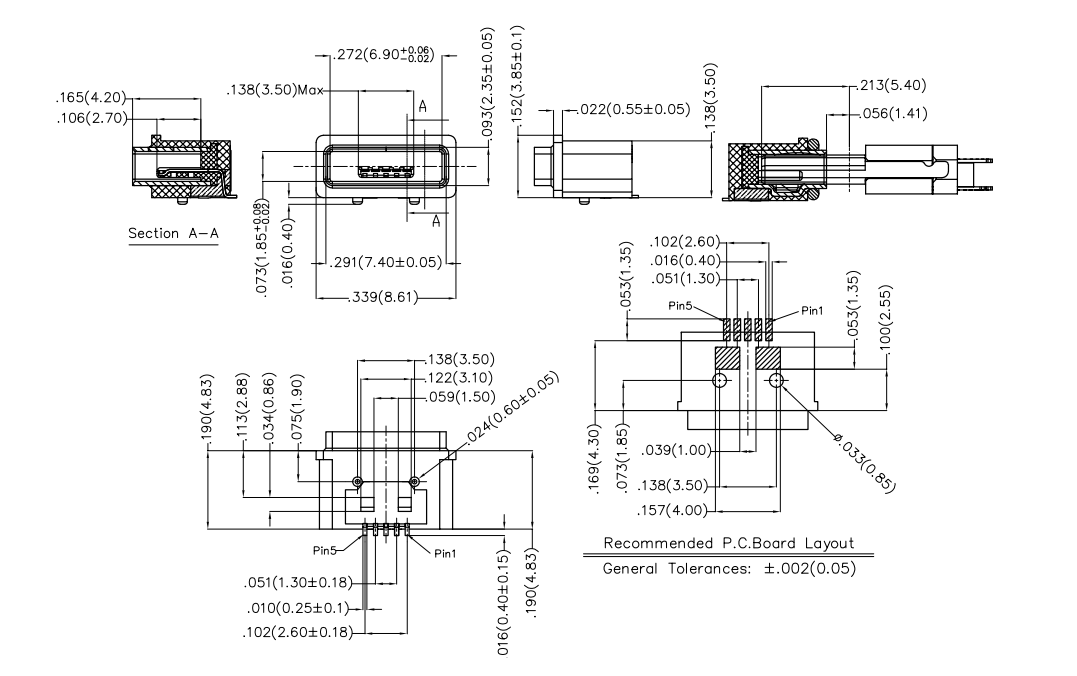

DIMENSIONS

Unit:mm

ModelDimensions

USBM-1467

USBM-1467

USBM-1467

Unit:mm

Unit:mm
