ROW MOTHER 排母

F2.0-OB

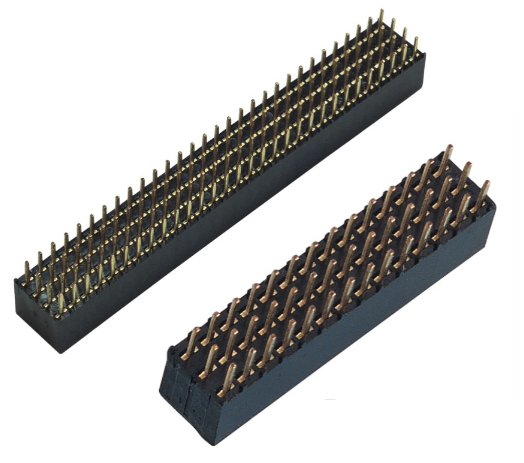

2.00mm pitch three-row female

F2.0-OB

Vertical DIP / 排母連接器 6.35mm塑高 / 三排排母 FEATURE ‧ 2.00mm pitch ‧ Y type APPLICATIONS ‧ Used in PCB circuit boards in electronics, electrical appliances, and meters.


產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
工作溫度範圍/Operating temperature range-40℃ to +105℃
絕緣電阻/Insulation resistance

1000MΩ Min

耐壓/Withstand voltage

AC 500V/min

尺寸/Dimension

6.35mm

額定電流/Rated current

1.0APM

接觸阻抗/Contact resistance

20mΩ Max

DIMENSIONS























Unit:mm

ModelDimensions

F2.0-OB

F2.0-OB



F2.0-OB
