FPC cable series
FPC-008
同面排線
FEATURE
‧ 0.50mm
‧ Co-directional cable
‧ Flexible flat
APPLICATIONS
‧Smart home/home appliances, shared equipment, medical equipment, digital electronics, mobile phones/computers, printers
產品說明
COMMON SPECIFICATIONS
| Characteristics | Specification |
|---|
| 觸點最大電流/Maximum contact current | 0.50A |
|---|
| 電壓-最大/Voltage-Maximum | 60V |
|---|
| 耐電壓/Withstand voltage | 200V AC r.m.s |
|---|
| 温度/temperature range | -40ºC~+85ºC |
|---|
| 插拔次數/Mating times | 40 |
|---|

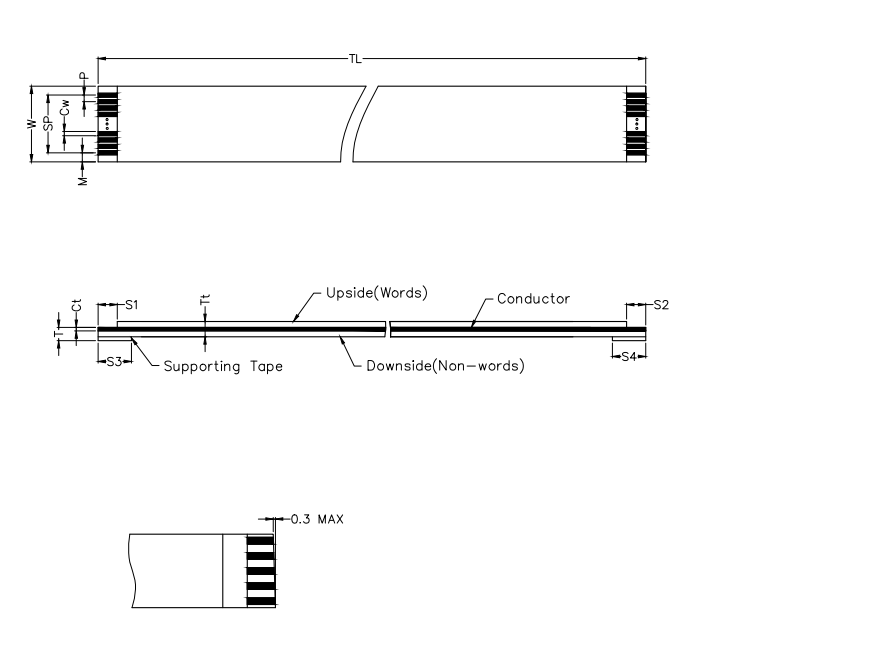

DIMENSIONS
Unit:mm
| Model | Dimensions |
|---|
FPC-008 |  |
Unit:mm
Unit:mm
