ROTARY POTENTIOMETER 旋轉電位器

RK166 series
Potentiometer/Rotary Potentiometer

RK166 series

電位器/旋轉電位器 MAIN FUNCTIONS Page turning, frequency modulation, dimming, tuning quantity, speed adjustment, temperature adjustment, menu selection. APPLICATIONS Mouse, earphone, radio, electronic toy, electronic cigarette.


產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
操作力矩/Shaft Rotation Force20gf.cm~200gf.cm
絕緣電阻/Insulation resistance100 MΩ min at 500 VDC.
耐電壓/Withstand Voltage1 minute at AC 500V
回轉壽命/Rotational life15,000 cycles

DIMENSIONS

Unit:mm

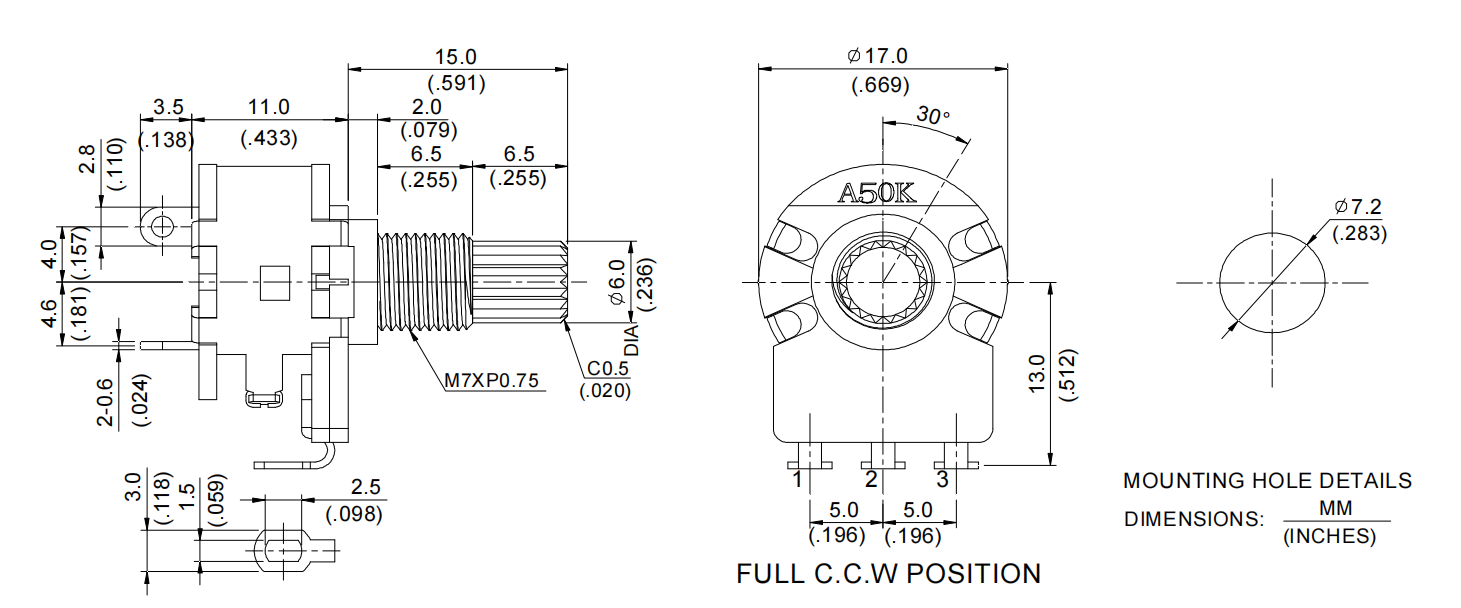

ModelDimensions

RK166NH01RK166 series


RK166 series

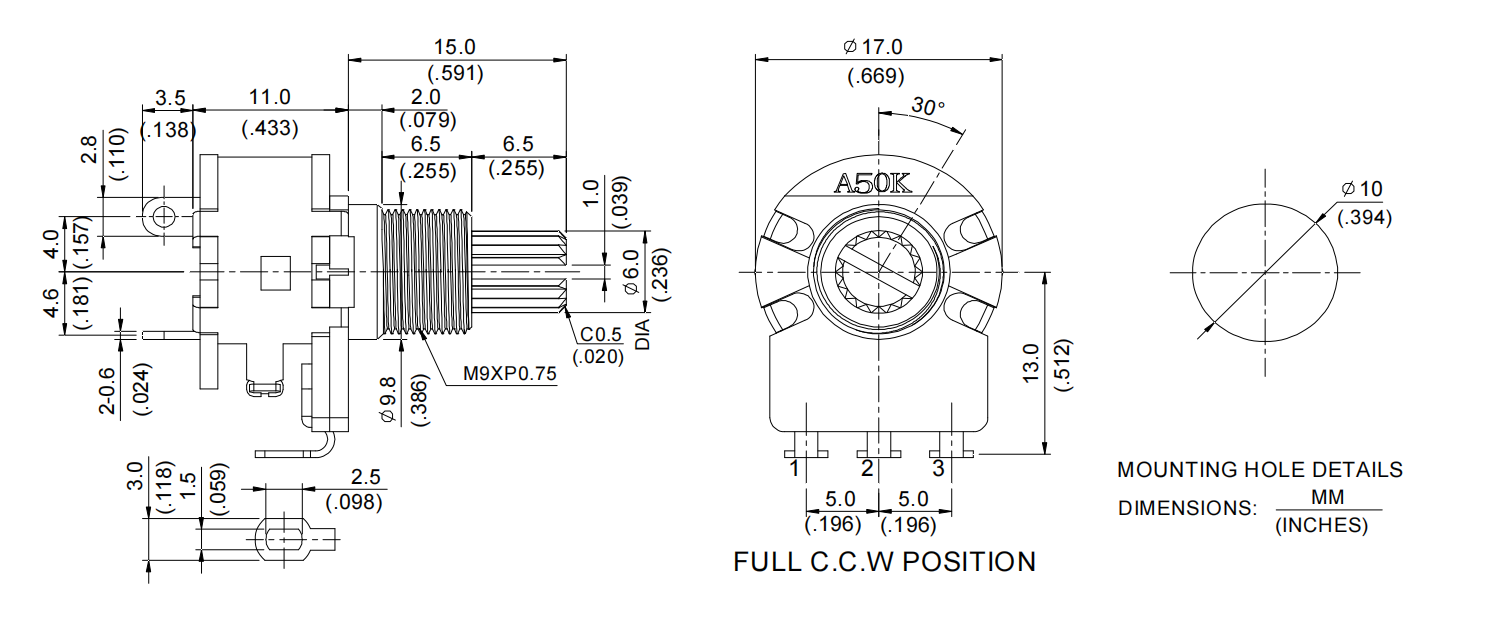

ModelDimensions

RK166NHT01

RK166 series


RK166 series

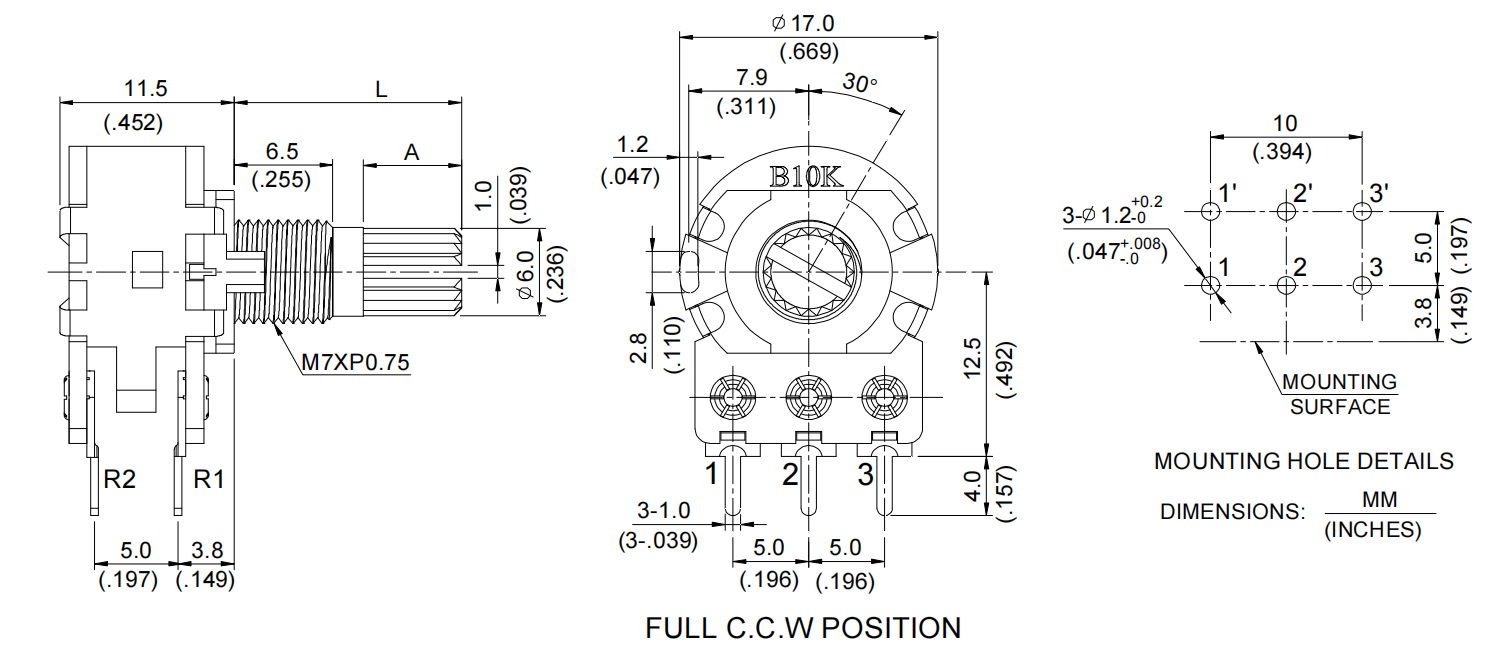

ModelDimensions

RK166GH01RK166 series


RK166 series

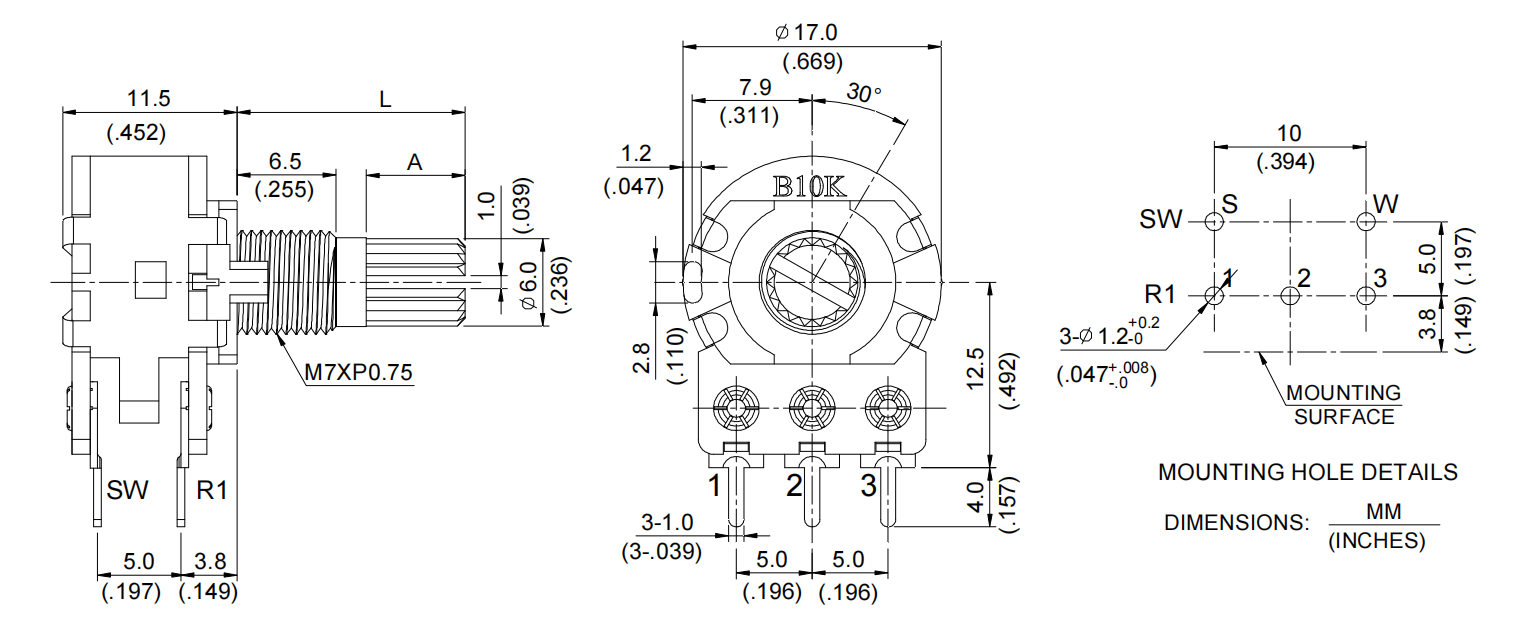

ModelDimensions

RK166SNH01

RK166 series


RK166 series

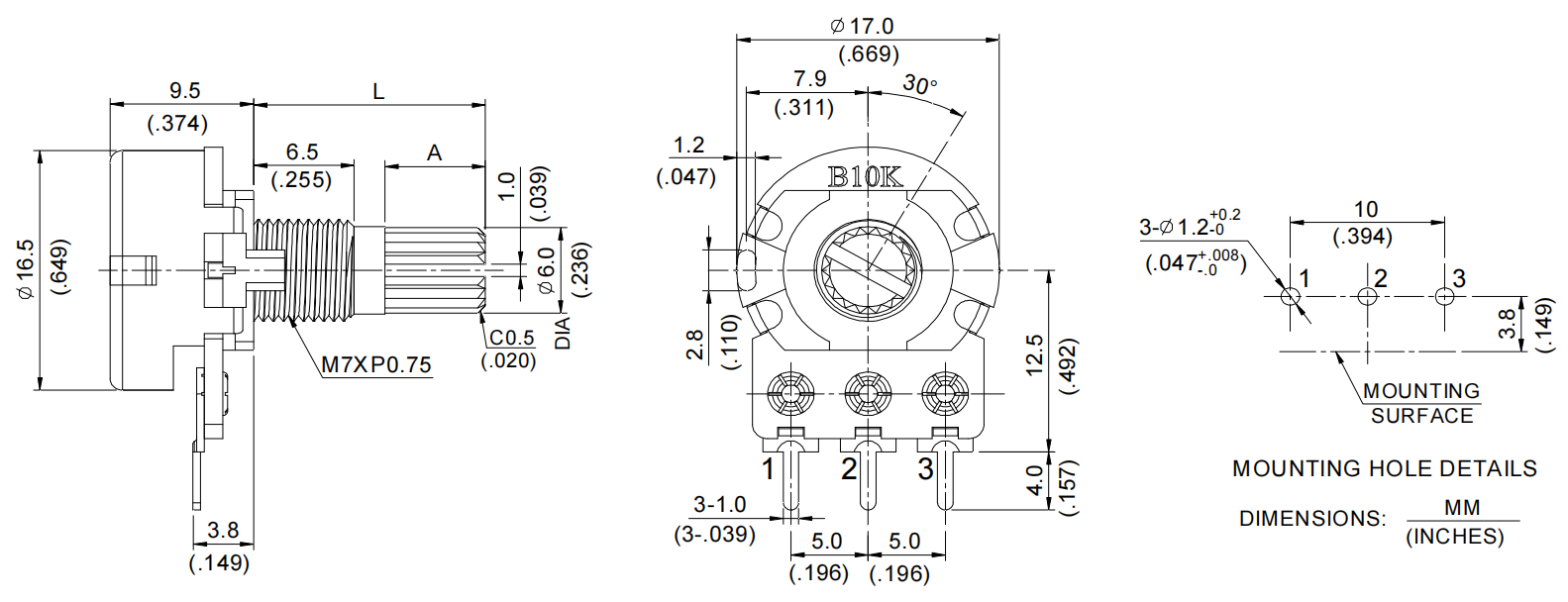

ModelDimensions

RK166NV01

RK166 series


RK166 series

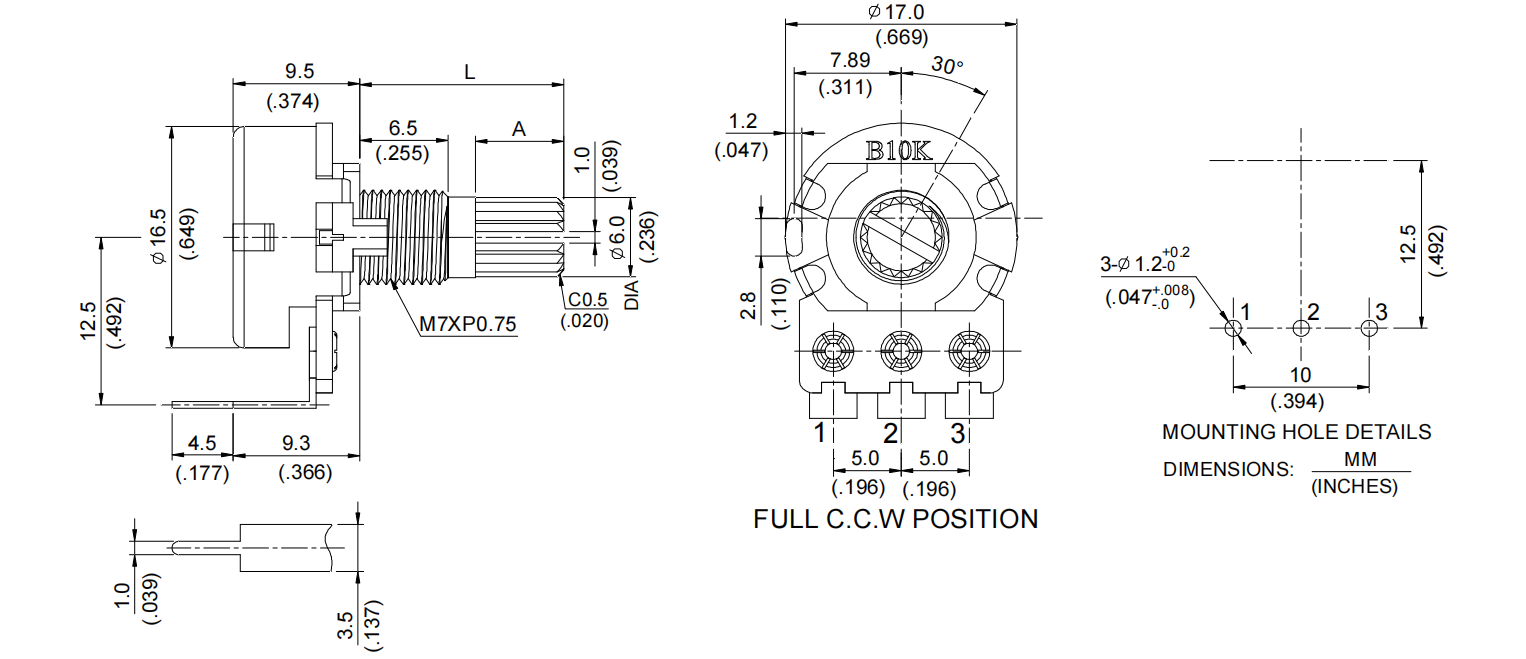

ModelDimensions

RK166NV02RK166 series


RK166 series
ModelDimensions

RK166SNVTB01RK166 series


RK166 series
ModelDimensions

RK166SNVTB01

RK166 series


RK166 series
