SLIDE POTENTIOMETER 滑動電位器

SK05 series
Potentiometer/Slide potentiometer

SK05 series

電位器/滑動電位器 MAIN FUNCTIONS Page turning, frequency modulation, dimming, tuning quantity, speed adjustment, temperature adjustment, menu selection. APPLICATIONS Mouse, earphone, radio, electronic toy, electronic cigarette.


產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
操作力矩/Shaft Rotation Force5gf.cm~90gf.cm
絕緣電阻/Insulation resistance50 MΩ min at 100 VDC.
耐電壓/Withstand Voltage1 minute at AC 100V
回轉壽命/Rotational life5,000 cycles

DIMENSIONS

Unit:mm

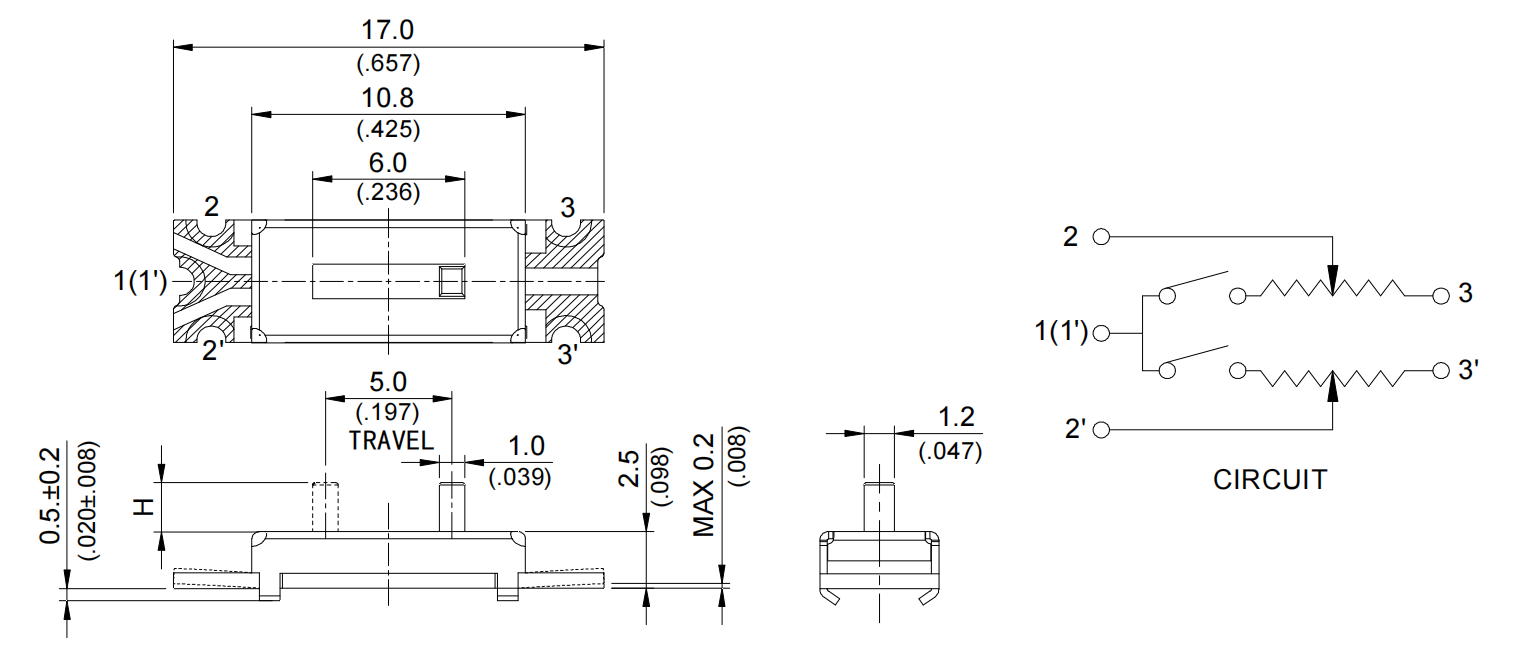

ModelDimensions

SK05NW01SK05 series


SK05 series

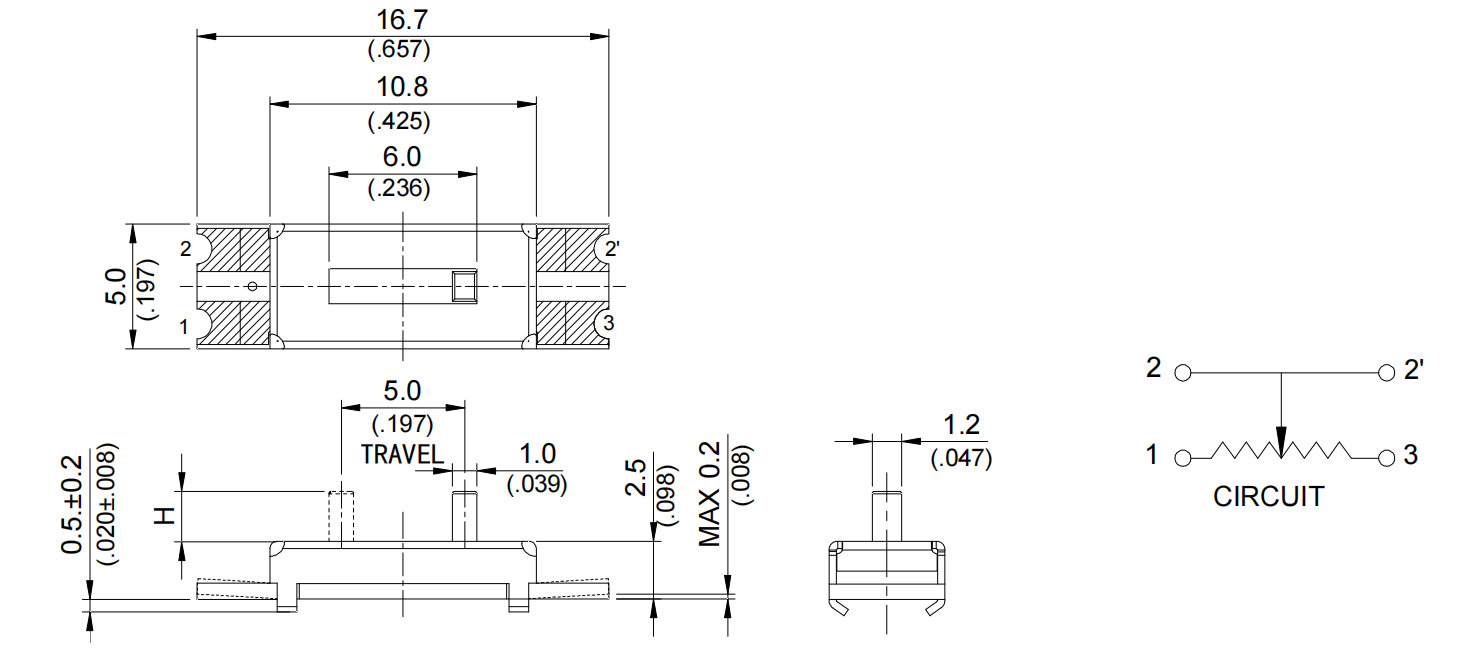

ModelDimensions

SK05SNW01

SK05 series


SK05 series

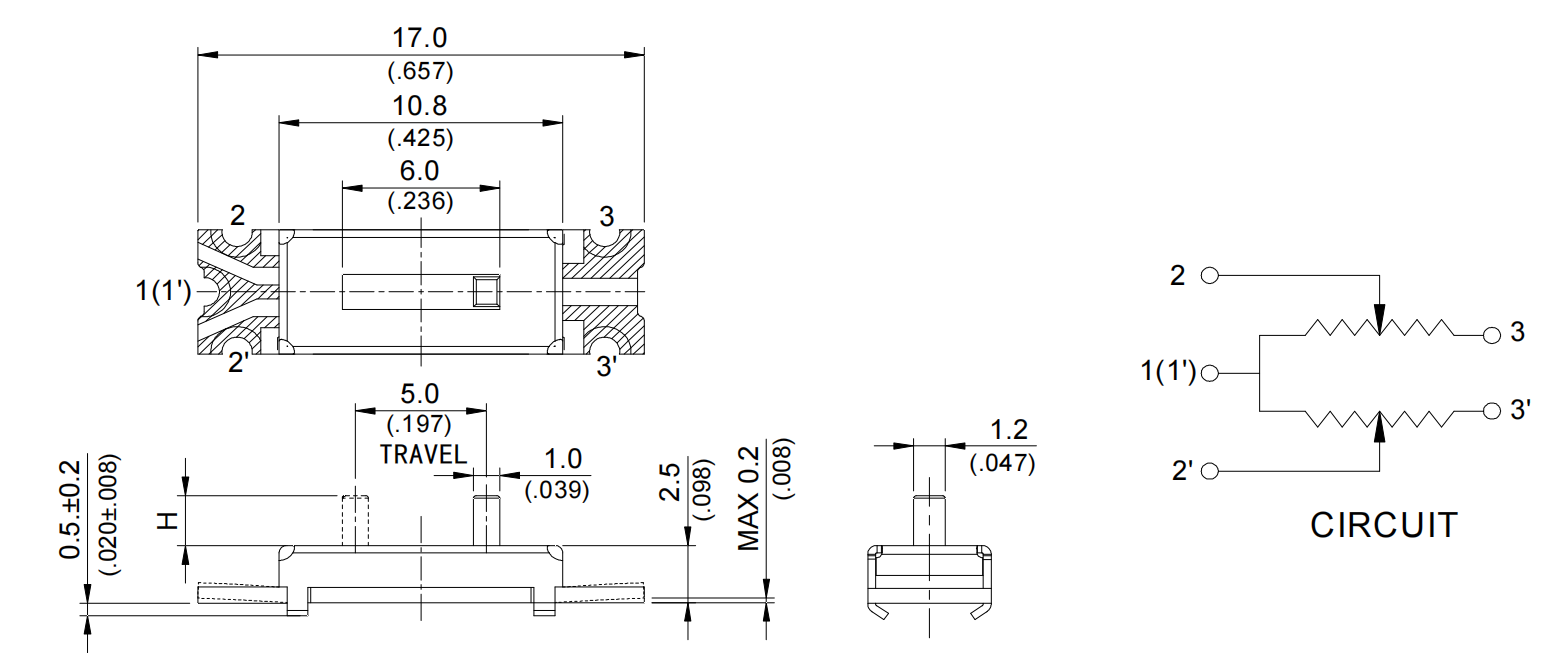

ModelDimensions

SK05GW01SK05 series


SK05 series

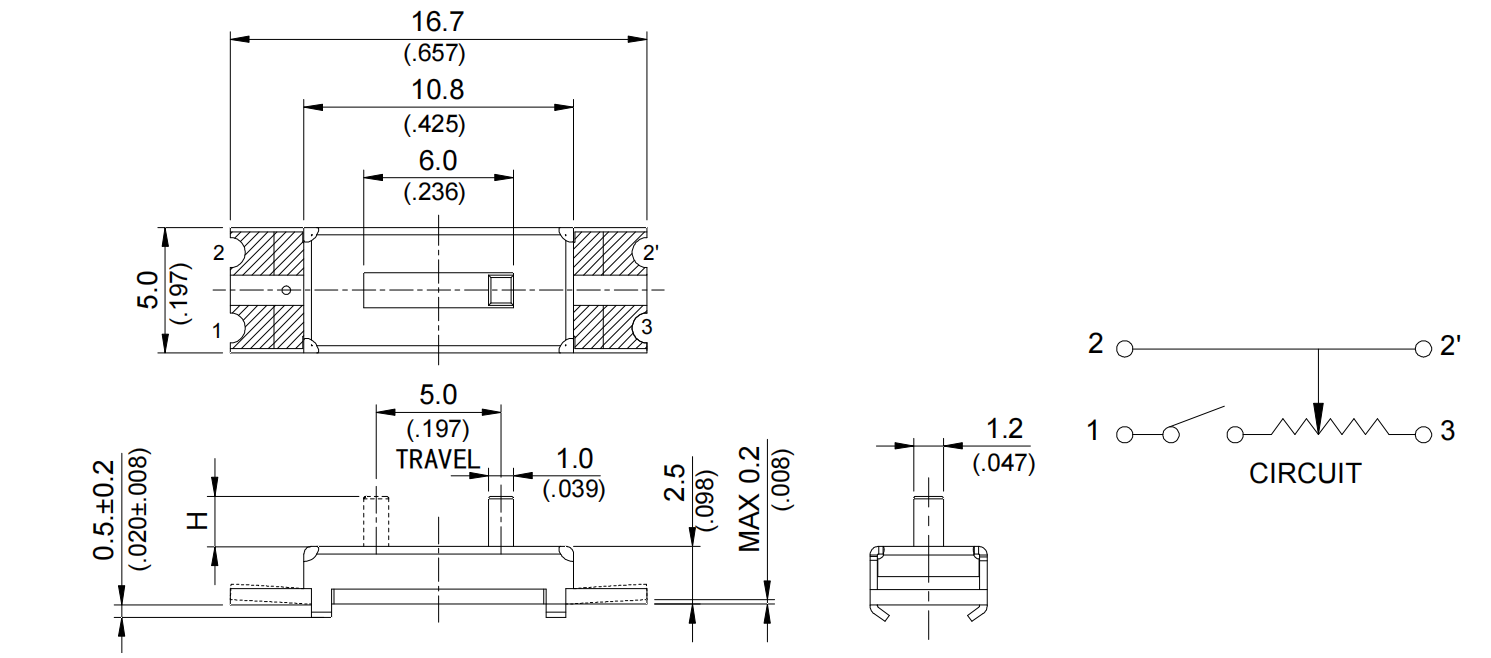

ModelDimensions

SK05SGW01

SK05 series


SK05 series
