SLIDE POTENTIOMETER 滑動電位器

SK304 series
Potentiometer/Slide potentiometer

SK304 series

電位器/滑動電位器 MAIN FUNCTIONS Page turning, frequency modulation, dimming, tuning quantity, speed adjustment, temperature adjustment, menu selection. APPLICATIONS Mouse, earphone, radio, electronic toy, electronic cigarette.


產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
操作力矩/Shaft Rotation Force15gf.cm~150gf.cm
絕緣電阻/Insulation resistance10 MΩ min at 250 VDC.
耐電壓/Withstand Voltage1 minute at AC 300V
回轉壽命/Rotational life15,000 cycles

DIMENSIONS

Unit:mm

ModelDimensions

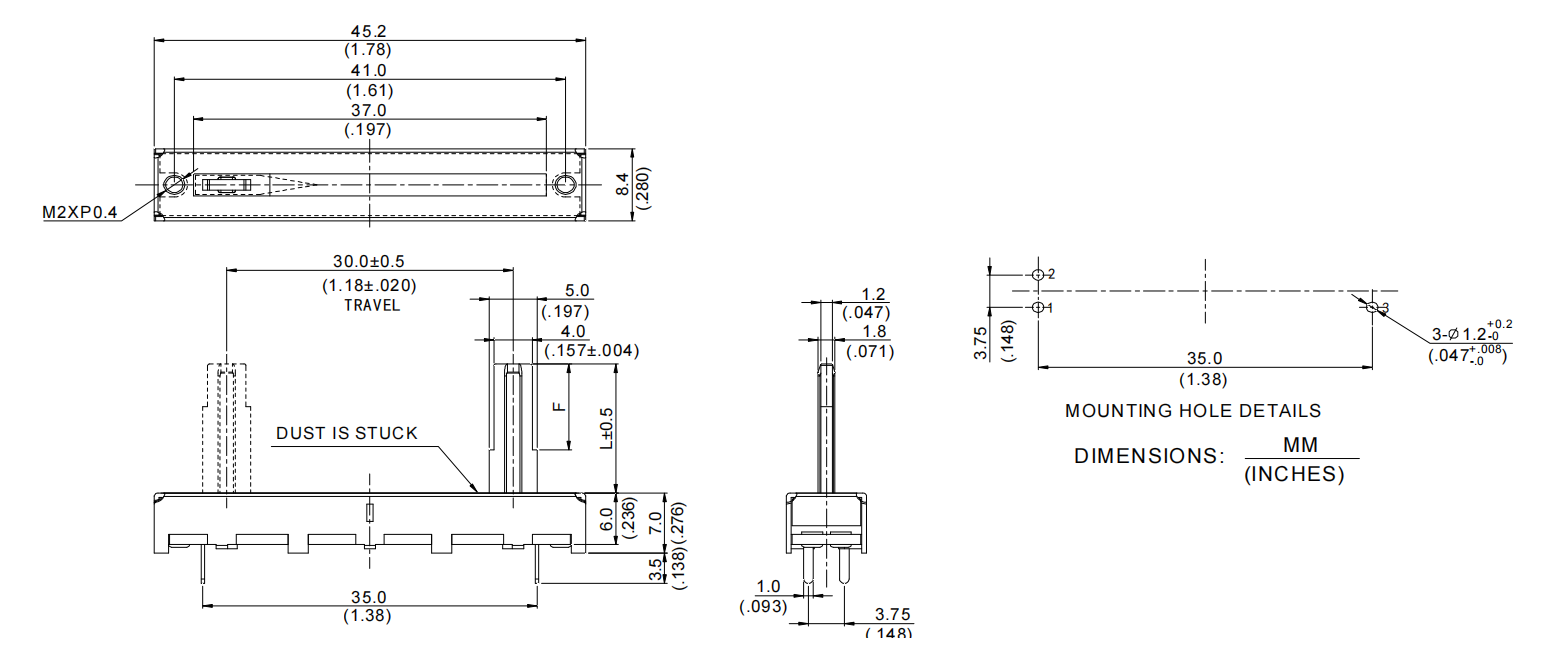

SK304NH01SK304 series


SK304 series
ModelDimensions

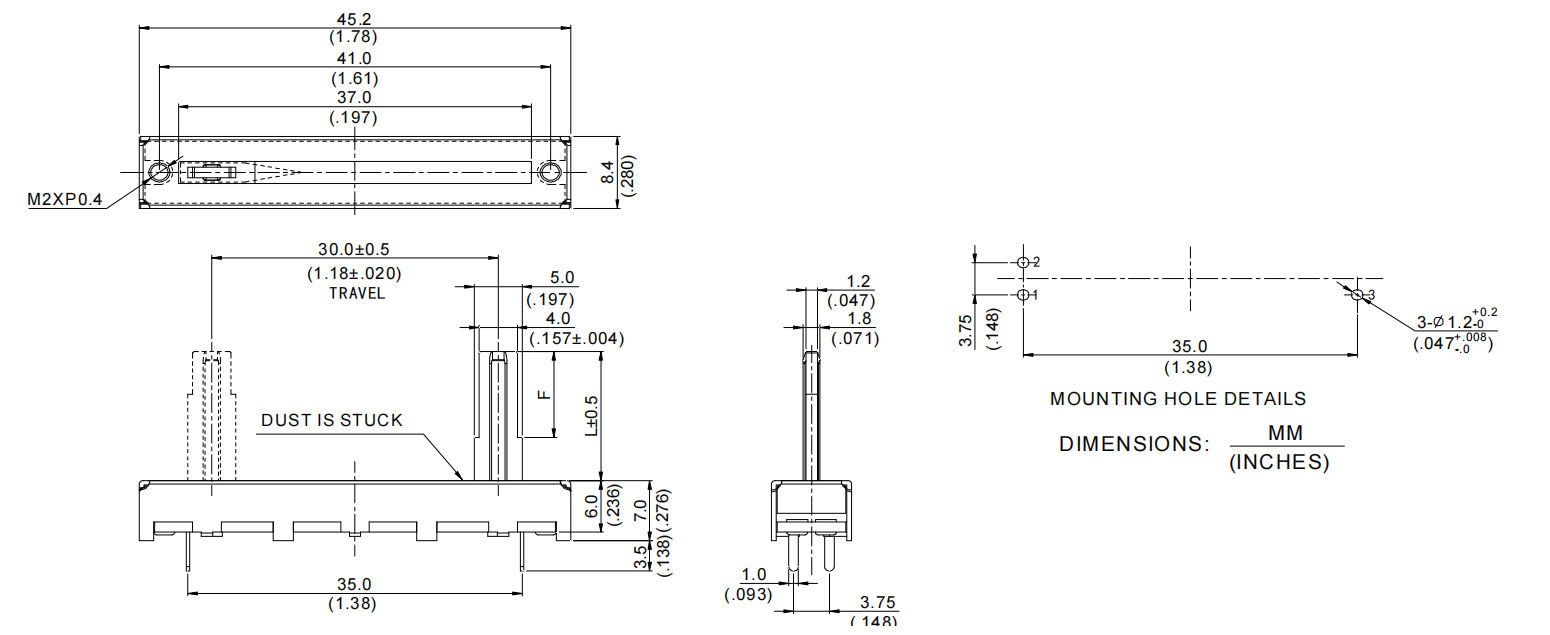

SK304NH01-1C

SK304 series


SK304 series
