SLIDE POTENTIOMETER 滑動電位器

SK305 series
Potentiometer/Slide potentiometer

SK305 series

電位器/滑動電位器 MAIN FUNCTIONS Page turning, frequency modulation, dimming, tuning quantity, speed adjustment, temperature adjustment, menu selection. APPLICATIONS Mouse, earphone, radio, electronic toy, electronic cigarette.


產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
操作力矩/Shaft Rotation Force18gf.cm~40gf.cm
絕緣電阻/Insulation resistance100 MΩ min at 100 VDC.
耐電壓/Withstand Voltage1 minute at AC 100V
回轉壽命/Rotational life15,000 cycles

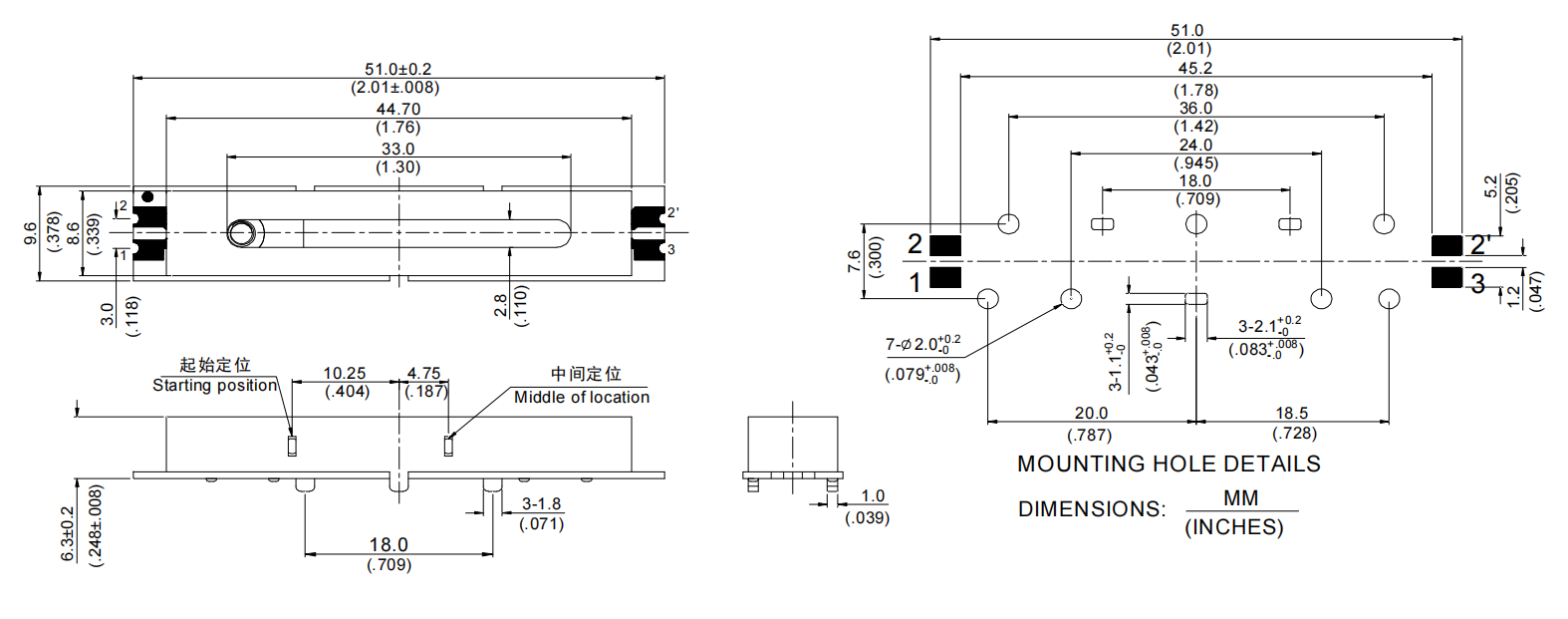

DIMENSIONS

Unit:mm

ModelDimensions

SK305NW01SK305 series


SK305 series
