ANTENNA 射頻跳線

CAE-002
RF jumper series

CAE-002

射頻跳線 FEATURE ‧ 130mm ‧ MHF I vs. SMA ‧ RF coaxial cable APPLICATIONS ‧Painters, scanners, photocopiers, stereos, LCD appliances, fax machines, different types of DVD players


產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
阻抗/impedance50 ohm
工作電壓/Operating Voltage1000V
長度/lengthL=130mm
温度/temperature range-55ºC~+150ºC
工作頻率/working frequency0-6.0 GHZ

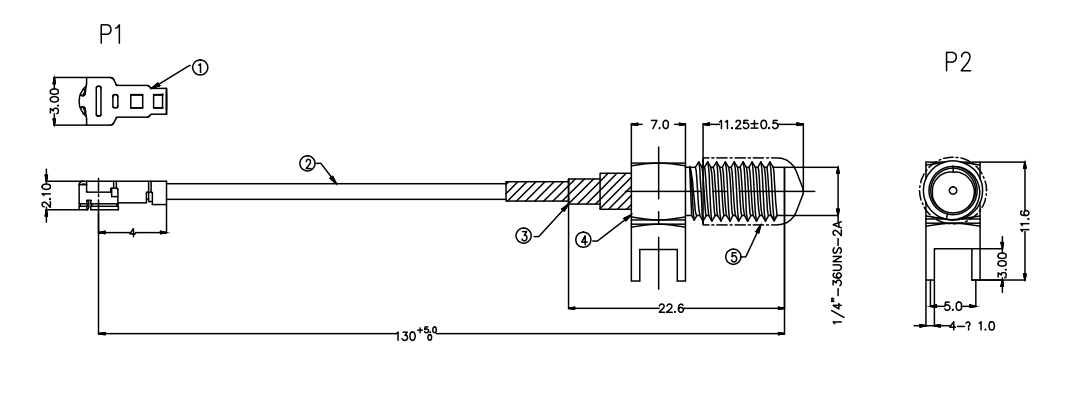

DIMENSIONS

Unit:mm

ModelDimensions

CAE-002CAE-002

CAE-002

Unit:mm

Unit:mm
