BATTERY BATTERY CONNECTOR Battery電池連接器

BC-261
Battery battery connector series

BC-261

Battery電池連接器 FEATURE ‧ 2.00mm ‧ 3-12PIN ‧ DIP APPLICATIONS ‧Used in toy airplanes, electric car battery charging ports, power sockets, small household appliances battery interfaces, laptop computers, mobile phones, etc.


產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
電流/CURRENT RATING7A
耐壓/WITHSTAND VOLTAGE500V
絕緣電阻/INSULATION RESISTANCE500 ΜΩ MIN
接触电阻/CONTACT RESISTANCE30 mΩ MAX
工作溫度/OPERATION TEMPERATURE-40°C TO +105°C

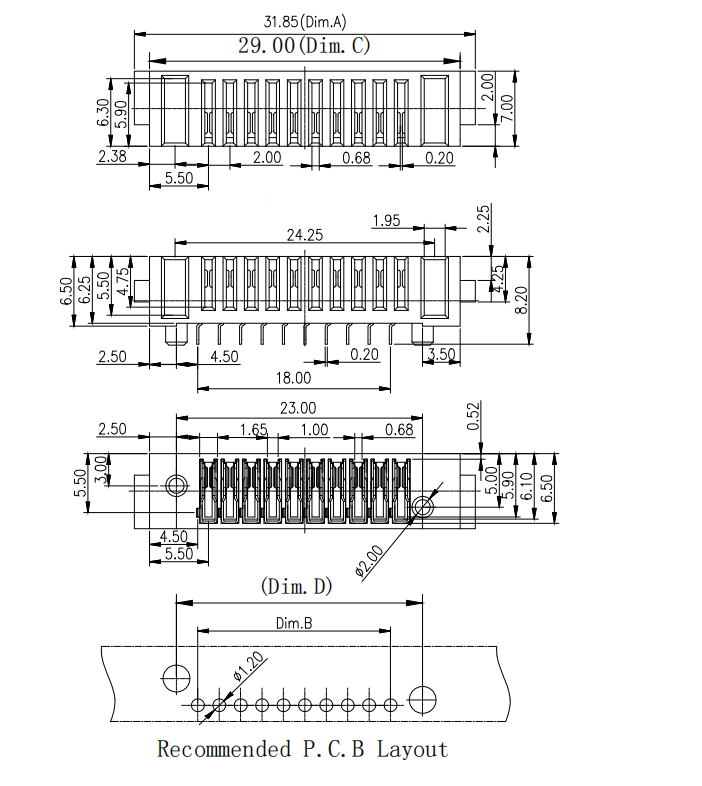

DIMENSIONS

Unit:mm

ModelDimensions

BC-261BC-261

BC-261

Unit:mm

Unit:mm
