防水微動開關

M17 series
M17 series
Waterproof micro switch series

M17 series

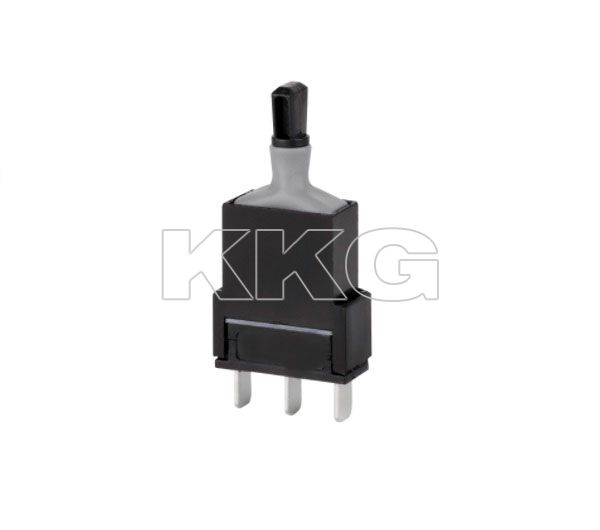

IP67防水微動開關 FEATURE ‧ 25.50mm*13.20mm ‧ DIP ‧ Reflow soldering APPLICATIONS ‧ Mainly used in the three-dimensional design of mobile phones, CD players, wireless phones, MP3 players, digital laptops, DVDs, digital cameras, etc...


產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
工作溫度範圍/Operating temperature range-40°C ~ +85°C
操作力/Operating force200gf
機械壽命/Mechanical Life200,000 Cycles
接觸電阻/Contact Resistance50MΩ
絕緣電阻/Insulation resistance100 MΩ Mim. 250V DC
承受電壓/Withatand Voltage0.1A/12VDC

DIMENSIONS

ModelDimensions

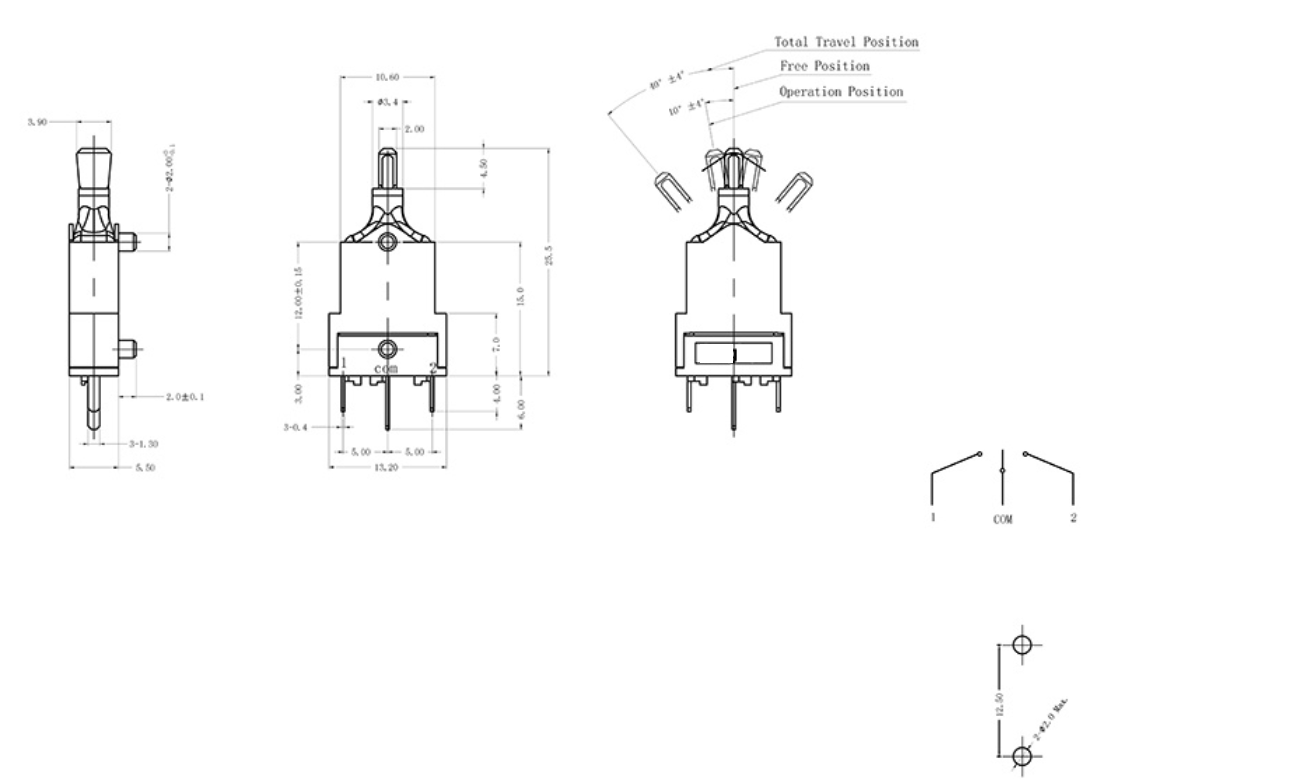

M17-1M17 series


M17 series

DIMENSIONS


ModelDimensions

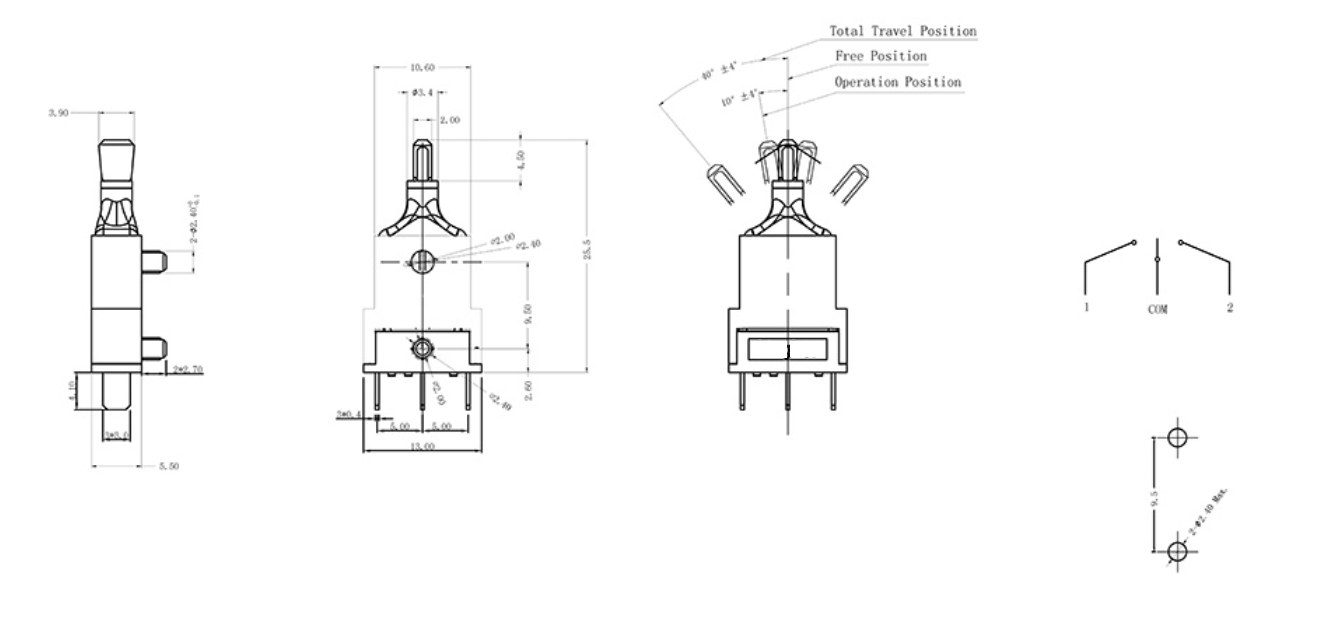

M17-2M17 series


M17 series
