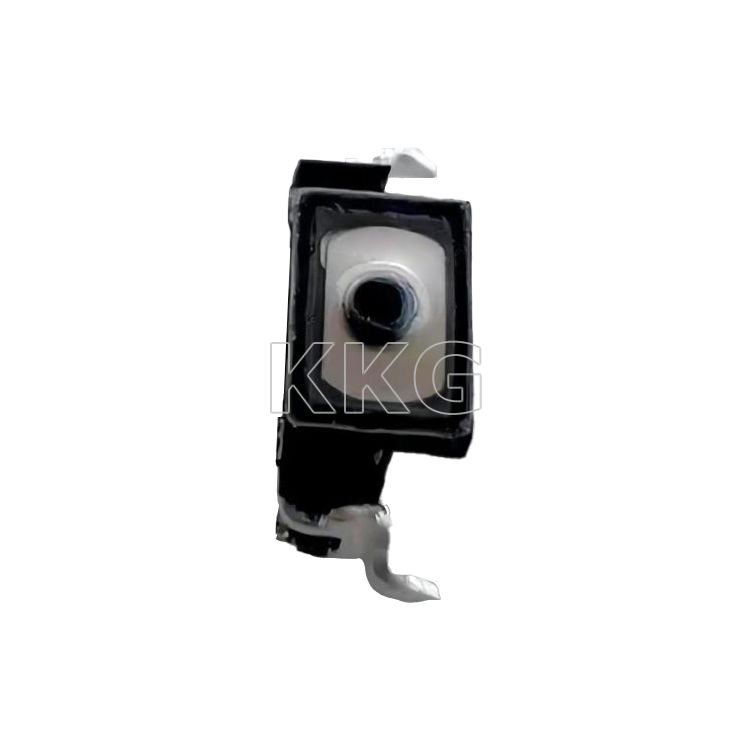

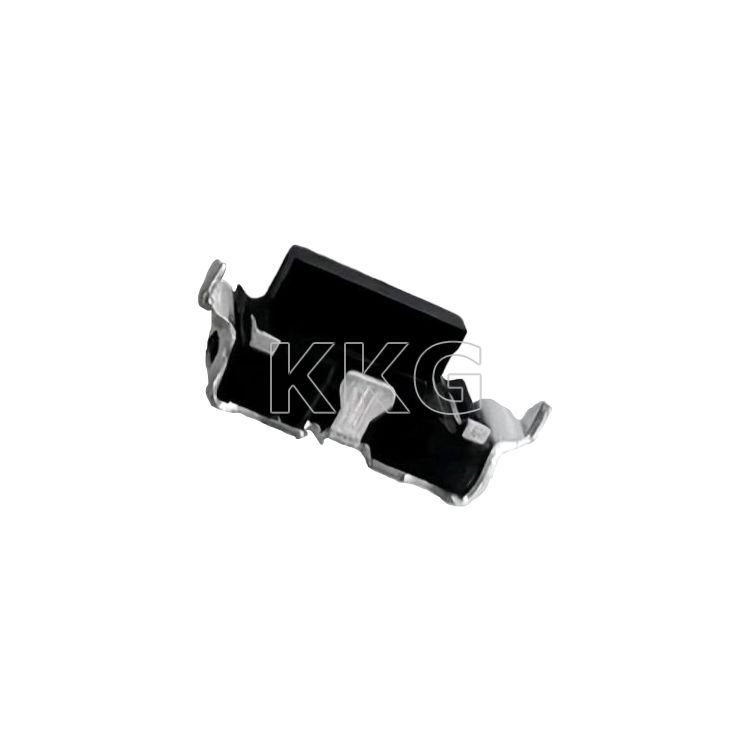

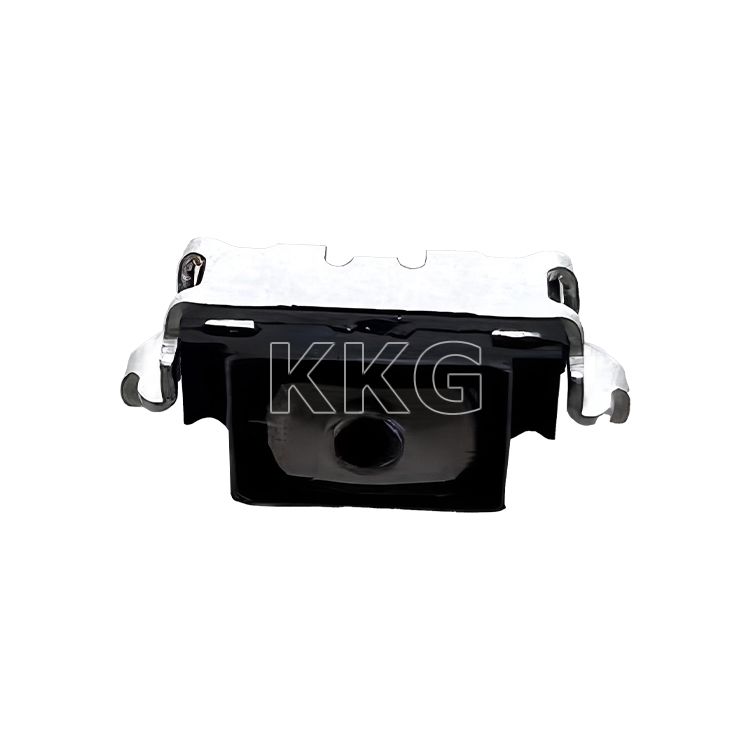

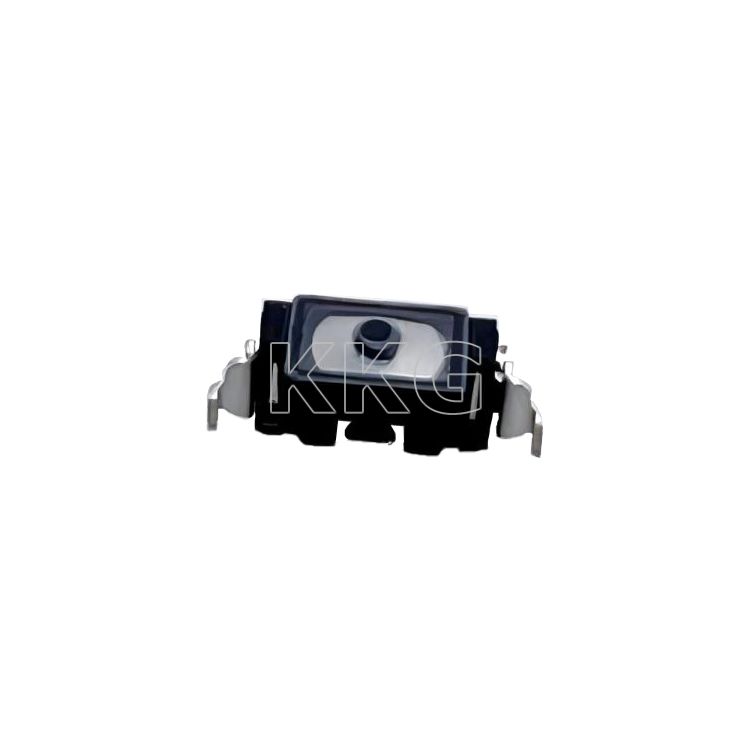

Tact Switch
TK-2416H
SMT VERTICAL Type
3.4mm*1.65mm H=1.97mm TACT SWITCH
FEATURE
surface mounting type..
‧Reflow solderable.
APPLICATIONS
‧ For Audio、OA equipment、Instrumentation、Communication、Consumer electronics etc.
產品說明
COMMON SPECIFICATIONS
| Characteristics | Specification |
|---|
| 工作溫度範圍/Operating temperature range | -20℃ to +70℃ |
|---|
| 操作力/Operating force | 160gf |
|---|
| 行程/Travel | 0.15mm |
|---|
| 尺寸/Dimension | 3.00mm*2.40mm
|
|---|
| 使用壽命/Operating life | 100,000 cycles |
|---|
| 最大額定值/Maximum ratings | DC12V 50mA |
|---|
| 絕緣電阻/Insulation resistance | 100MΩ min |
|---|
| 耐電壓/Voltage proof | 1 minute 250V AC |
|---|
DIMENSIONS
Unit:mm
| Model | Dimensions |
|---|
TK-2416H
|  |
