TOUCH SWITCH 輕觸開關

TK-1066 Series
TK-1066 Series
TK-1066 Series

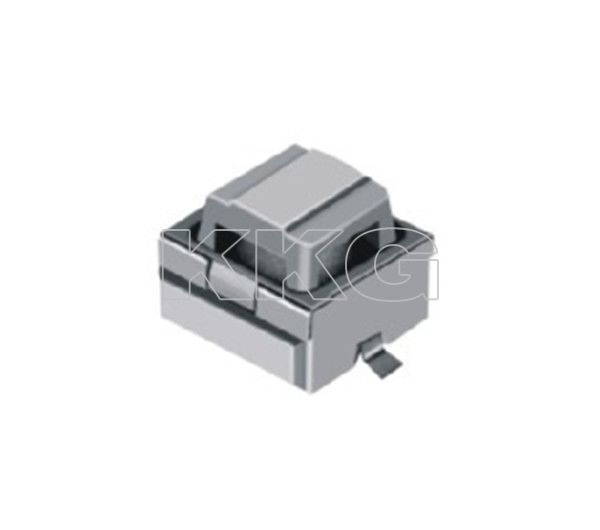

Ultraminiature SMT Tact Switch

TK-1066 Series

SMT VERTICAL Type, 防水輕觸開關 FEATURE 6.00mm*6.00mm, surface mounting type.. ‧Reflow solderable. APPLICATIONS ‧ For Audio、OA equipment、Instrumentation、Communication、Consumer electronics etc.

檔案下載 產品詢價

產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
工作溫度範圍/Operating temperature range-20℃ to +70℃
操作力/Operating force100gf   160gf   260gf
行程/Travel1.3mm
尺寸/Dimension6.00*6.00mm
使用壽命/Operating life100,000 cycles
最大額定值/Maximum ratingsDC12V 0.5A
絕緣電阻/Insulation resistance100MΩ min
耐電壓/Voltage proof1 minute 250V AC


DIMENSIONS

Unit:mm


ModelDimensions

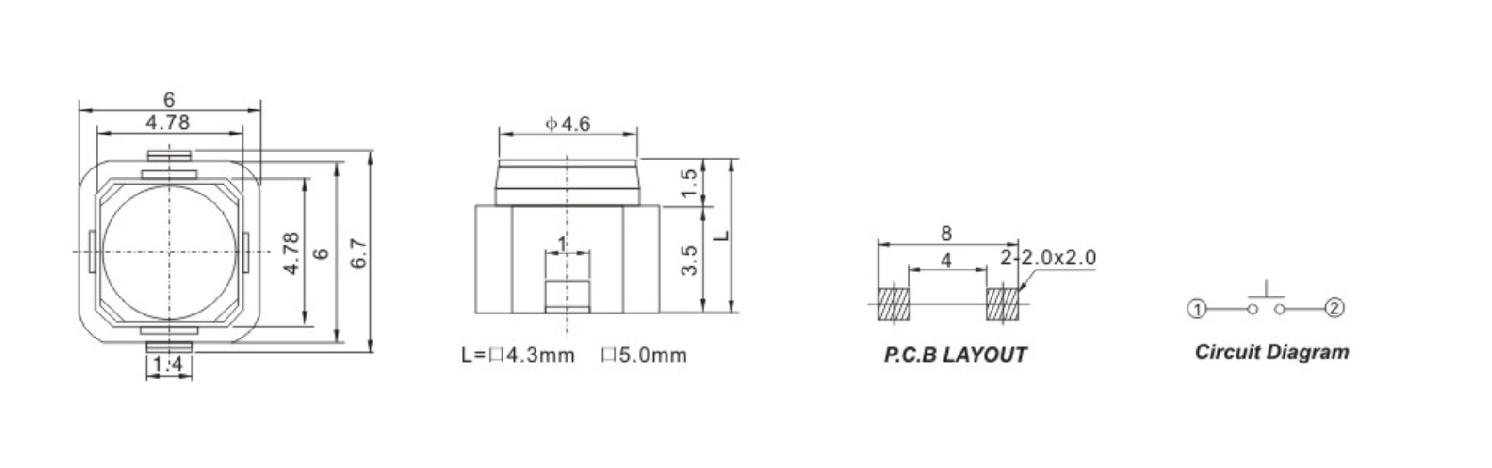

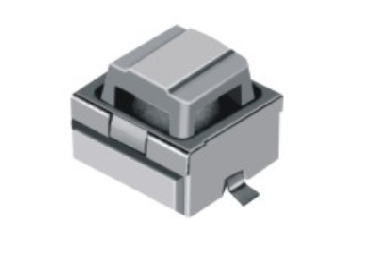

TK-1066TK-1066 Series

TK-1066 Series



ModelDimensions

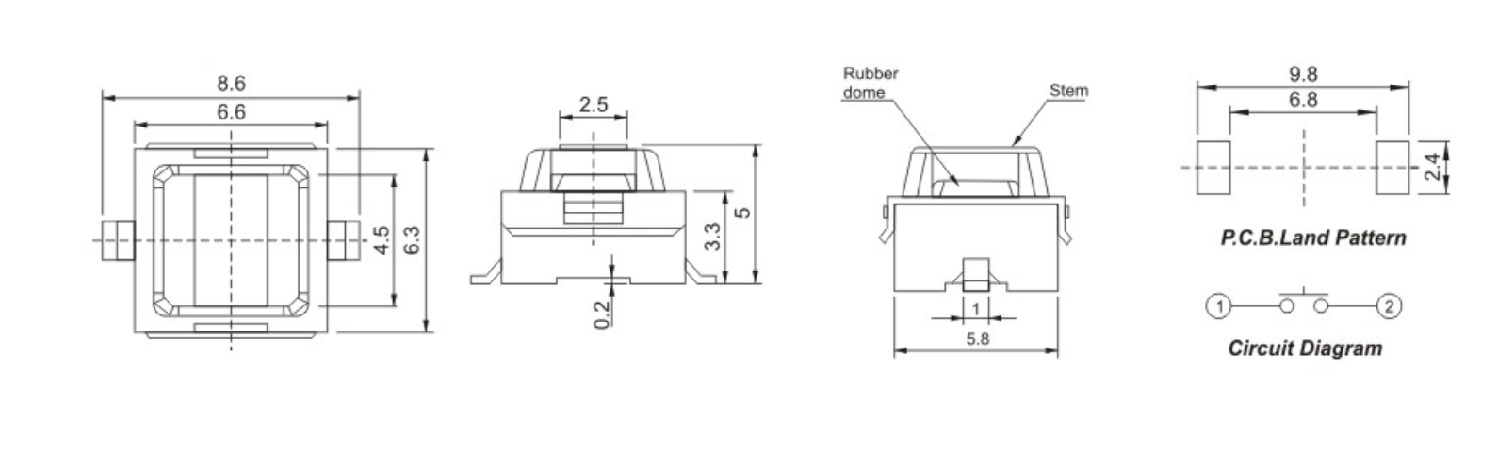

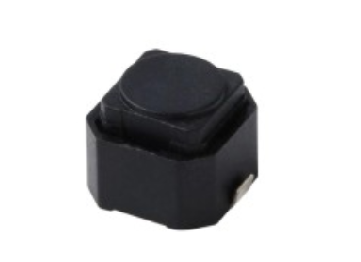

TK-1066BTK-1066 SeriesTK-1066 Series
