TOUCH SWITCH 輕觸開關

TK-1245
Micro-Miniature Right Angle SMT Tact swtich

TK-1245

SMT VERTICAL Type,沈板貼片輕觸開關 4.5mm*2.2mm H=2.6mm FEATURE ‧4.5mm*2.2mm, surface mounting type.. ‧Reflow solderable. APPLICATIONS ‧ For Audio、OA equipment、Instrumentation、Communication、Consumer electronics etc.


產品說明

COMMON SPECIFICATIONS


CharacteristicsSpecification
工作溫度範圍/Operating temperature range-30℃ to +85℃
操作力/Operating force160gf、260gf
行程/Travel0.25mm
尺寸/Dimension4.5*2.2mm
使用壽命/Operating life100,000 cycles
最大額定值/Maximum ratingsDC12V 50mA
絕緣電阻/Insulation resistance100MΩ min
耐電壓/Voltage proof1 minute 250V AC

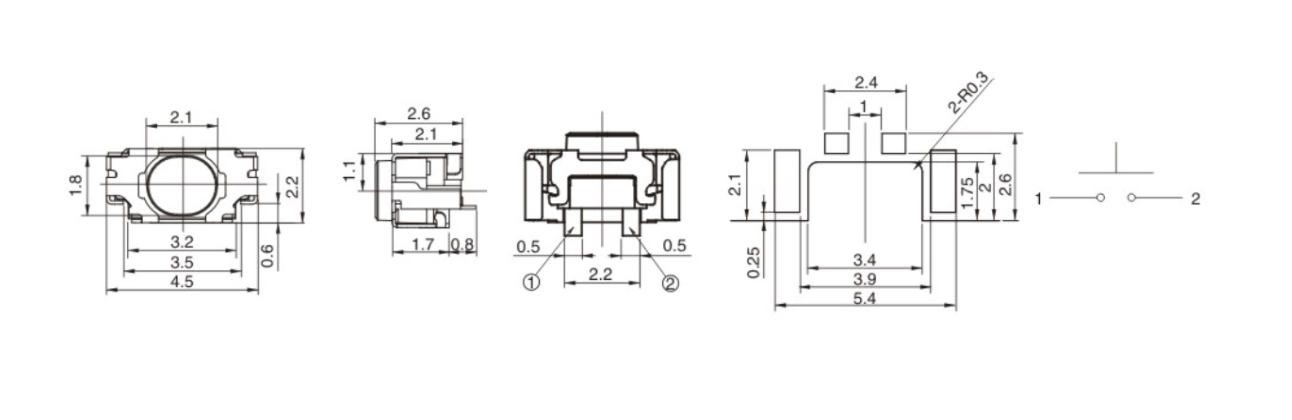

DIMENSIONS

Unit:mm

ModelDimensions




TK-1245

TK-1245





TK-1245

Unit:mm


Unit:mm
