Tact Switch
TK-6617C
SMT VERTICAL Type, 輕觸開關
6mm*6mm
FEATURE
‧3.0x2.8x1.4mm, surface mounting type..
‧Reflow solderable.
APPLICATIONS
‧ For Audio、OA equipment、Instrumentation、Communication、Consumer electronics etc.
產品說明
COMMON SPECIFICATIONS
Characteristics | Specification |
---|
工作溫度範圍/Operating temperature range | -20℃ to +70℃ |
---|
操作力/Operating force | 100、160gf |
---|
行程/Travel | 0.25mm |
---|
尺寸/Dimension | 6*6mm |
---|
使用壽命/Operating life | 100,000 cycles |
---|
最大額定值/Maximum ratings | DC12V 50mA |
---|
絕緣電阻/Insulation resistance | 100MΩ min |
---|
耐電壓/Voltage proof | 1 minute 250V AC |
---|

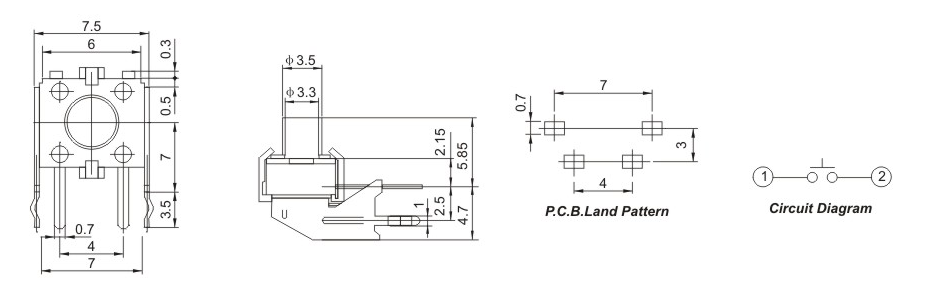

DIMENSIONS
Unit:mm
Model | Dimensions |
---|
TK-6617C | |
