KEYBOARD SWITCH 鍵盤開關

PK150T
KEYBOARD SWITCH

PK150T

No sense of breaking No sound,键盘开关 15.60mm * 15.60mm H = 15.2mm It has the advantages of good touch, long-term durability, high stability, strong sensitivity, No sense of breaking No sound application ·Suitable for mechanical keyboar


產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
工作溫度範圍/Operating temperature range-30℃ to +85℃
觸覺力/Operating force50±10gf
行程/Travel2.0mm
尺寸/Dimension15.60* 15.60mm
使用壽命/Operating life1,000,000 cycles
最大額定值/Maximum ratingsDC12V 10mA
絕緣電阻/Insulation resistance200MΩ min
耐電壓/Voltage proof1 minute 250V AC

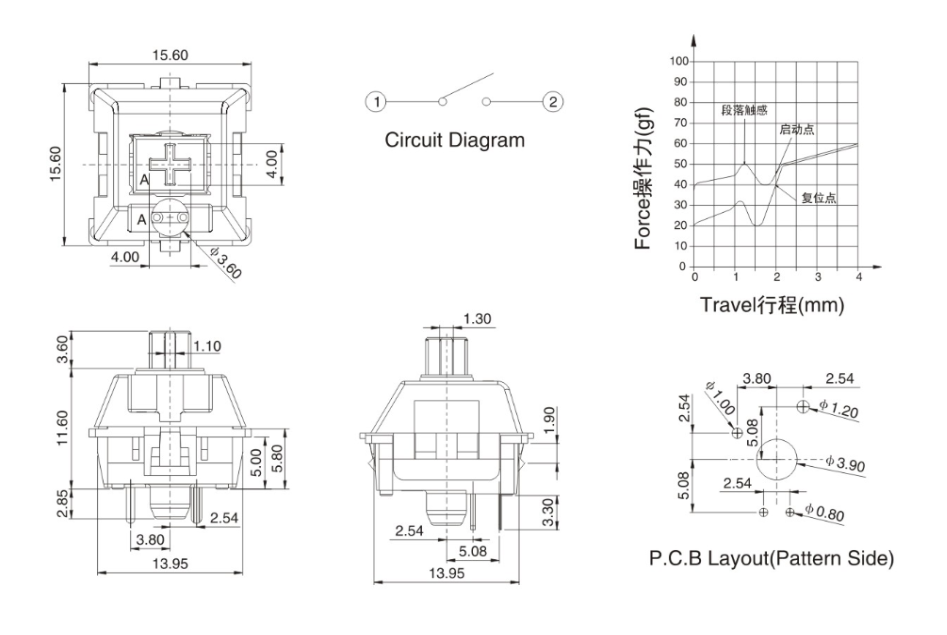

DIMENSIONS

Unit:mm

ModelDimensions

PK150T

PK150T



PK150T
