KEYBOARD SWITCH 鍵盤開關

PK-150F
KEYBOARD SWITCH

PK-150F

Dustproof type,键盘开关 15.60mm * 6.9mm H = 15.2mm It has the advantages of good touch, long-term durability, high stability, strong sensitivity, Dustproof type application ·Suitable for mechanical keyboar


產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
工作溫度範圍/Operating temperature range-30℃ to +85℃
触觉力/Tactile force50±10gf
行程/Travel2.0mm
尺寸/Dimension15.60* 6.9mm
使用壽命/Operating life1,000,000 cycles
最大額定值/Maximum ratingsDC12V 10mA
絕緣電阻/Insulation resistance100MΩ min
耐電壓/Voltage proof1 minute 250V AC

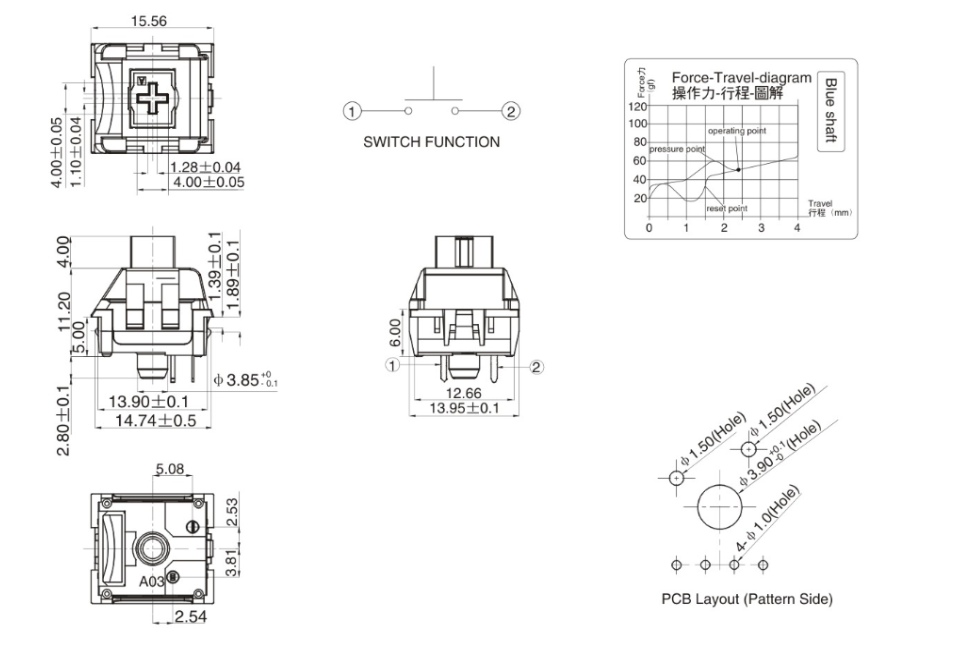

DIMENSIONS

Unit:mm

ModelDimensions

PK150F

PK-150F



PK-150F
