DETECTION SWITCH 檢測開關

DS-002SL
DETECTOR SWITCH

DS-002SL

檢測開關 8.35mm*5.7mm H=2.5mm The advantages of detection switch are smaller volume, more flexible design, longer service life and more functions for the design of brake mechanism. Application: Digital products, security, computer, communication products, household appliances, intelligent transportation, etc


產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
工作溫度範圍/Operating temperature range-25℃ ~80℃
操作力/Operating force40gf
尺寸/Dimension8.35mm* 5.7mm
使用壽命/Operating life100,000 cycles
最大額定值/Maximum ratingsDC3V 50mA
絕緣電阻/Insulation resistance100MΩ min
接触电阻/Contact Resistance
500mΩmax~1Ωmax

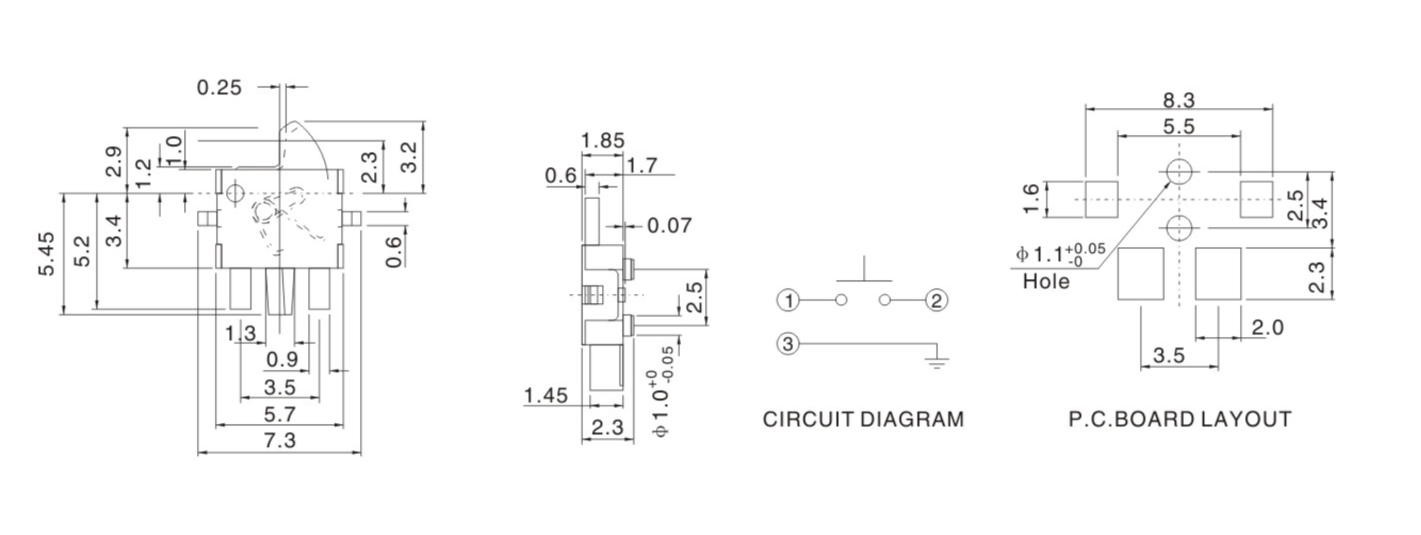

DIMENSIONS

Unit:mm

ModelDimensions

DS-002SL

DS-002SL



DS-002SL











X
