DETECTION SWITCH 檢測開關

DS-005S
DETECTOR SWITCH

DS-005S

檢測開關 3.5mm*2.8mm H=2.53mm The advantages of detection switch are smaller volume, more flexible design, longer service life and more functions for the design of brake mechanism. Application: Digital products, security, computer, communication products, household appliances, intelligent transportation, etc


產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
工作溫度範圍/Operating temperature range-25℃ ~80℃
操作力/Operating force40gf
尺寸/Dimension3.5mm* 2.8mm
使用壽命/Operating life50,000 cycles
最大額定值/Maximum ratingsDC5V 1mA
絕緣電阻/Insulation resistance100MΩ min
接触电阻/Contact Resistance
2Ωmax~5Ωmax

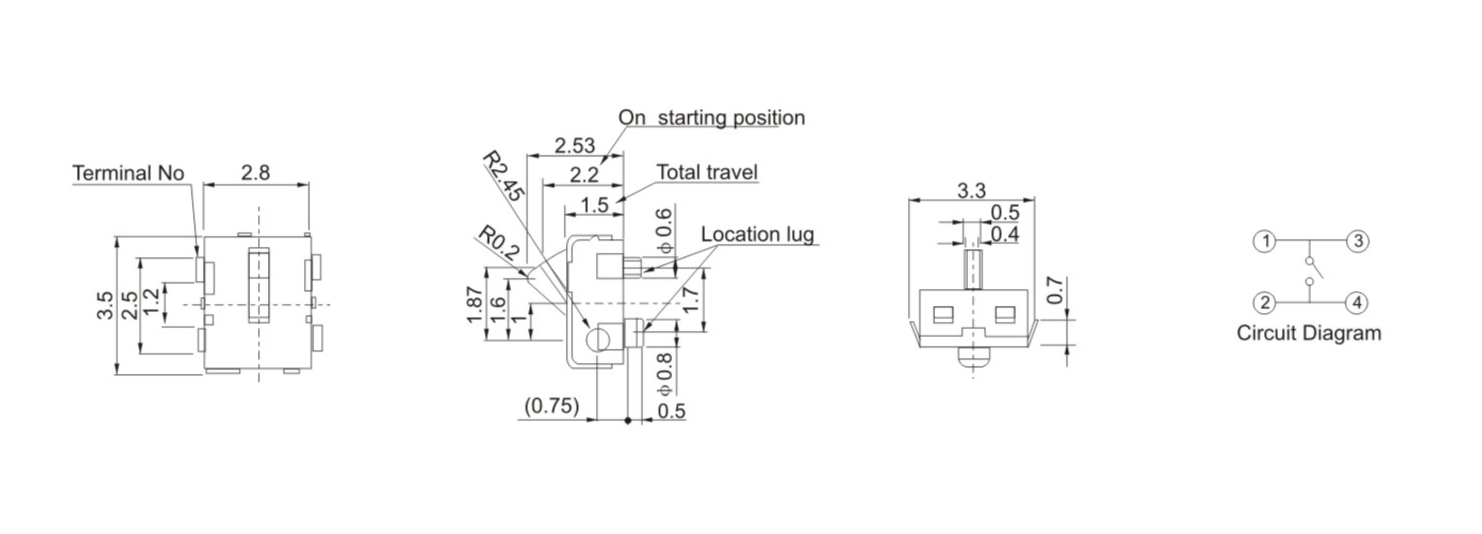

DIMENSIONS

Unit:mm

ModelDimensions

DS-005S

DS-005S

DS-005S
