DETECTION SWITCH 檢測開關

DS-032S
DETECTOR TACT SWITCH

DS-032S

檢測開關 4.50mm*6.00mm H=4.35mm The advantages of detection switch are smaller volume, more flexible design, longer service life and more functions for the design of brake mechanism. Application: Digital products, security, computer, communication products, household appliances, intelligent transportation, etc


產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
工作溫度範圍/Operating temperature range-25℃ ~ 80℃
觸覺力/Operating force50±10gf
行程/Travel2.0mm
尺寸/Dimension4.50* 6.00mm
使用壽命/Operating life100000 cycles
最大額定值/Maximum ratingsDC20V 50mA
絕緣電阻/Insulation resistance100MΩ min

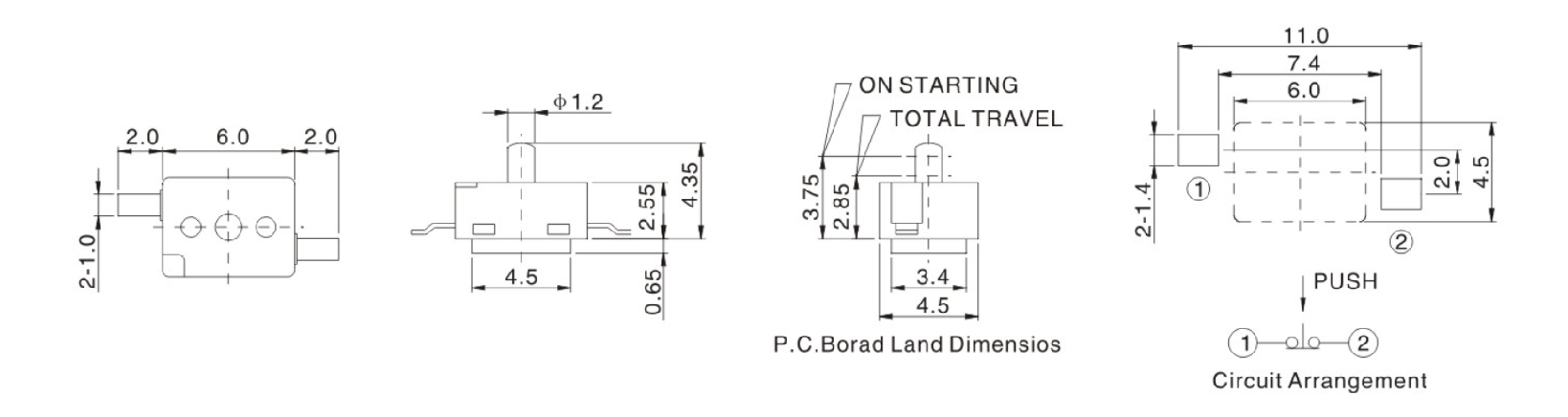

DIMENSIONS

Unit:mm

ModelDimensions

DS-032SDS-032S
