DETECTION SWITCH 檢測開關

DS-009D
DETECTOR SWITCH

DS-009D

檢測開關 5.60mm*7.50mm H=8.55mm The advantages of detection switch are smaller volume, more flexible design, longer service life and more functions for the design of brake mechanism. Application: Digital products, security, computer, communication products, household appliances, intelligent transportation, etc


產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
工作溫度範圍/Operating temperature range-25℃ ~80℃
操作力/Operating force25±10gf
尺寸/Dimension5.60* 7.50mm
使用壽命/Operating life100,000 cycles
最大額定值/Maximum ratingsDC5V 50mA
絕緣電阻/Insulation resistance100MΩ min
接触电阻/Contact Resistance
500MΩmax~1Ωmax

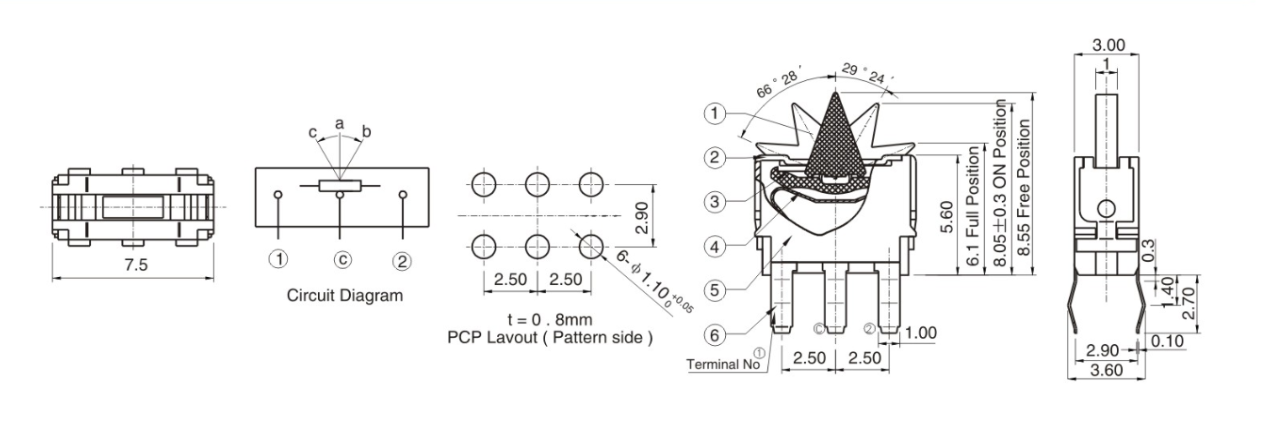

DIMENSIONS

Unit:mm

ModelDimensions

DS-009D

DS-009D



DS-009D

Unit:mm
