DETECTION SWITCH 檢測開關

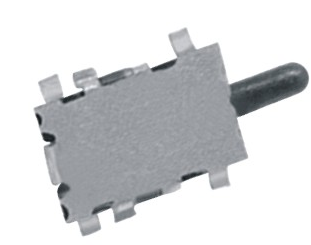

DS-010S
DETECTOR SWITCH

DS-010S

檢測開關 5.6mm*4mm*2.0mm The advantages of detection switch are smaller volume, more flexible design, longer service life and more functions for the design of brake mechanism. Application: Digital products, security, computer, communication products, household appliances, intelligent transportation, etc


產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
工作溫度範圍/Operating temperature range-25℃ ~80℃
操作力/Operating force35±15gf
尺寸/Dimension5.6mm* 4.0mm
使用壽命/Operating life100,000 cycles
最大額定值/Maximum ratings1mA 5VDC~50uA 3VDC
絕緣電阻/Insulation resistance100MΩ min
接触电阻/Contact Resistance
5Ωmax~10Ωmax

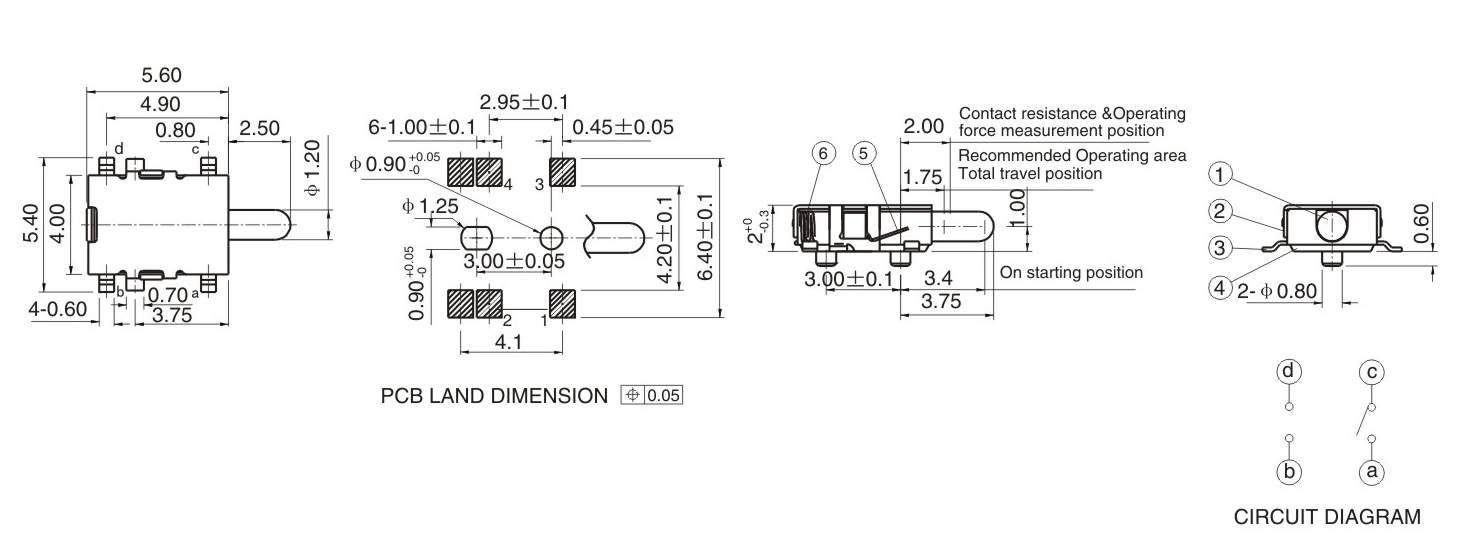

 DIMENSIONS

Unit:mm

ModelDimensions

DS-010S

DS-010S

DS-010S
