DETECTION SWITCH 檢測開關

DS-018SR/L

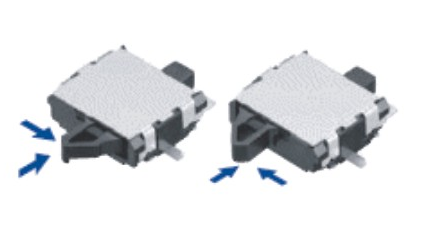

DETECTOR SWITCH

DS-018SR/L

檢測開關 5.6mm*4.7mm*1.9mm The advantages of detection switch are smaller volume, more flexible design, longer service life and more functions for the design of brake mechanism. Application: Digital products, security, computer, communication products, household appliances, intelligent transportation, etc


產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
工作溫度範圍/Operating temperature range-25℃ ~80℃
操作力/Operating force35±15gf
尺寸/Dimension

5.6mm* 4.7mm

使用壽命/Operating life100,000 cycles
最大額定值/Maximum ratings50mA 20VDC~100uA 3VDC
絕緣電阻/Insulation resistance100MΩ min
接触电阻/Contact Resistance
500mΩmax~1Ωmax

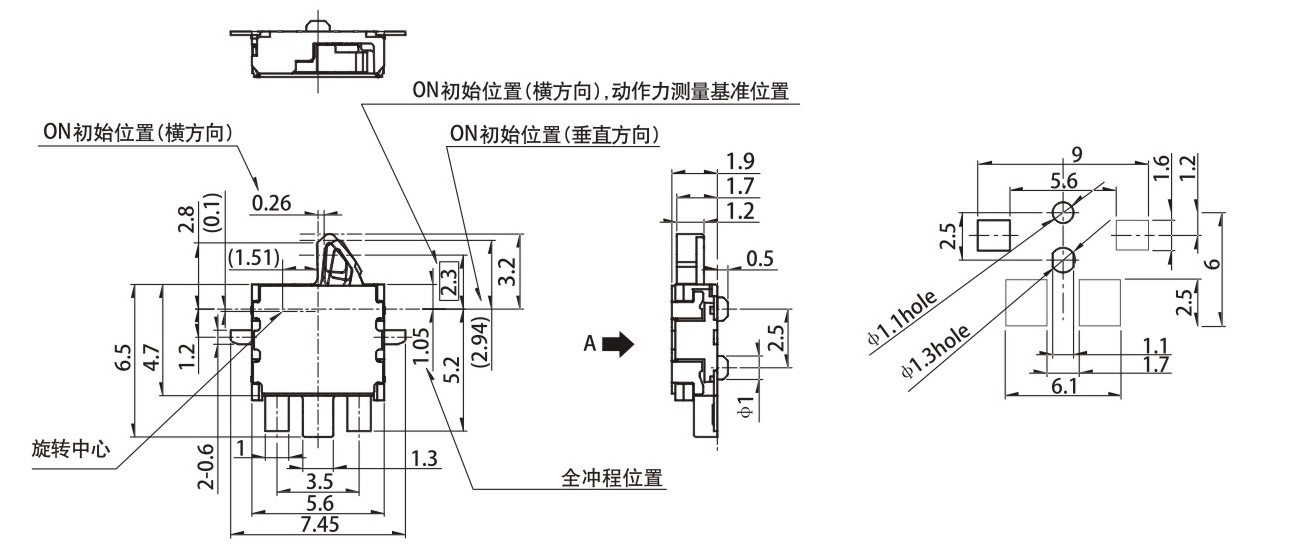

 DIMENSIONS

Unit:mm

ModelDimensions

DS-018SR/L

DS-018SR/L

DS-018SR/L
