SD卡座

SD-1962
SD Card Connectors

SD-1962

SD卡座 SD NO PUSH 4.0板上 FEATURE surface mounting type.. ‧Reflow solderable. Application: Digital products, computers, communication products, household appliances, etc.

檔案下載 產品詢價

產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
工作溫度範圍/Operating temperature range-25℃ ~90℃
接觸電阻/Contact resistance≤100mΩ
尺寸/Dimension27.75*21.2*2.9mm
使用壽命/Operating life5000 cycles
最大額定值/Maximum ratingsDC 5V 0.5A
絕緣電阻/Insulation resistance≥100MΩ
耐電壓/Voltage proof500V AC

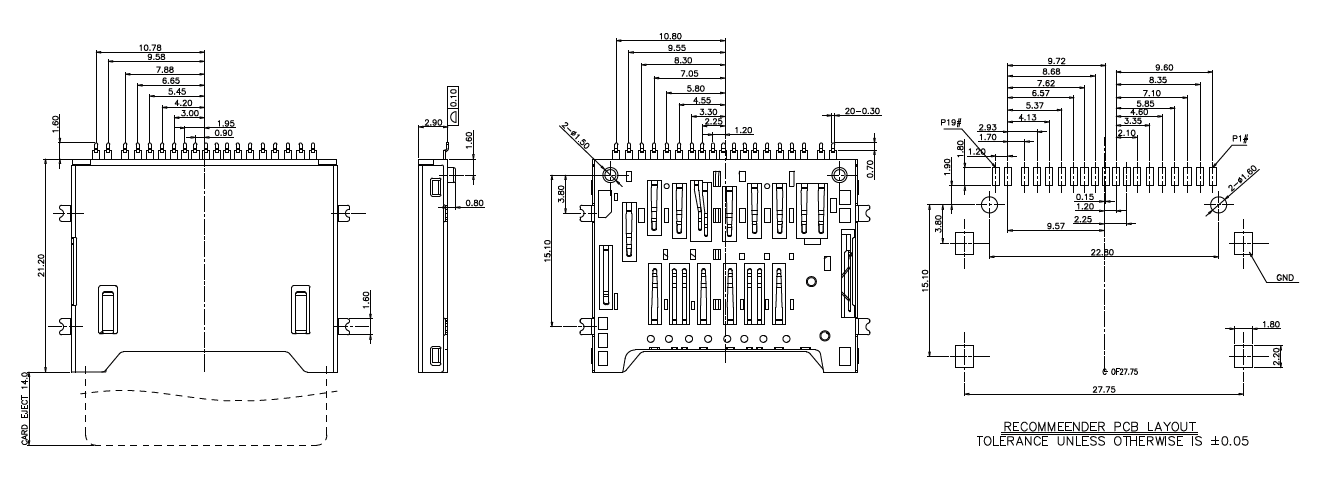

DIMENSIONS

Unit:mm

ModelDimensions




SD-1962SD-1962





SD-1962




Unit:mm



Unit:mm

Unit:mm
