SLIDE SWITCH 滑動開關

SK-1210
Sub-miniature Slide Switches

SK-1210

11.00mm*3.55mm 小型贴片撥動開關 Function ‧1P2T function ‧SMD design ‧2.7mm travel ‧Compact design APPLICATIONS The mouse keyboard, digital camera, bluetooth headset, car, mobile phone, the sound


產品說明

COMMON SPECIFICATIONS


Characteristics

Specification
工作溫度範圍/Operating temperature range-25℃ to +80℃
操作力/Operating force250gf
行程/Travel2.7mm
尺寸/Dimension11.00mm*3.55mm
使用壽命/Operating life100,00 cycles
最大額定值/Maximum ratingsDC4V 300mA
絕緣電阻/Insulation resistance100MΩ min
耐電壓/Voltage proof1 minute 500V AC

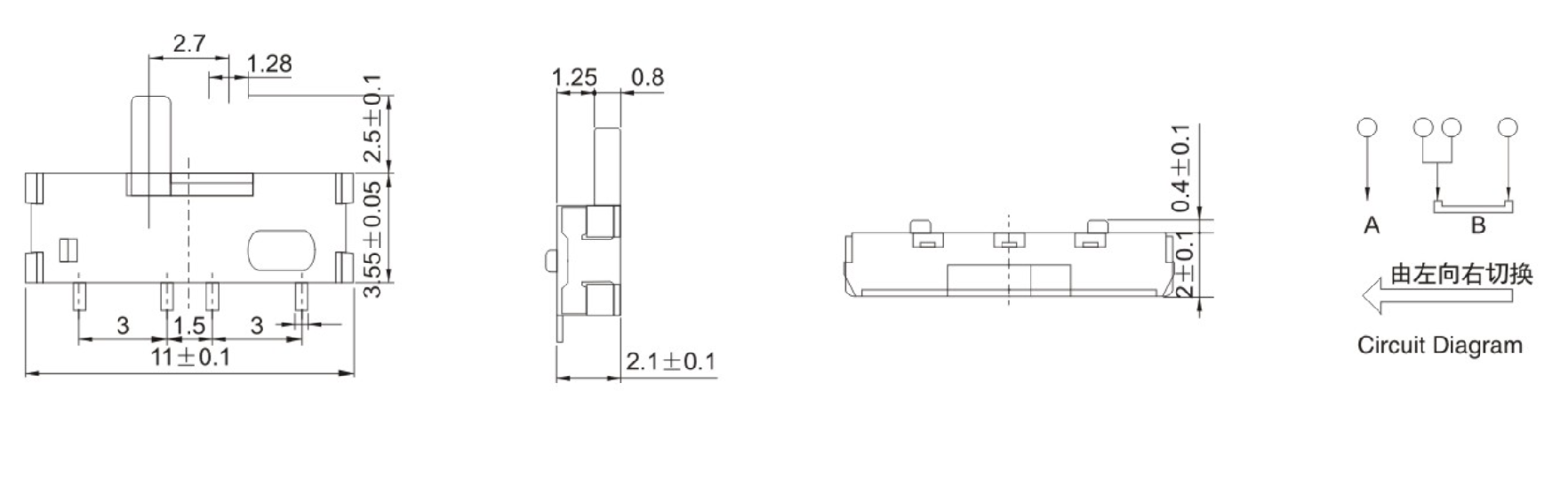

DIMENSIONS

Unit:mm

ModelDimensions




SK-1210SK-1210




SK-1210

Unit:mm


Unit:mm
