BUTTON 按鍵開關

PS-12E05A
HORIZONTAL PUSH SWITCH

PS-12E05A

卧式DIP,自锁/无锁 按键开关 11.8mm*11.9mm H=22mm FEATURE Small contact resistance, accurate operating force error, diversified specifications and other advantages Manual welding APPLICATIONS Audio and video products, digital products, remote control, communication products, household appliances, security products, toys, computer products, fitness equipment, medical equipment, cash detector, laser pen button, etc


產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
工作溫度範圍/Operating temperature range-10℃ to 70℃
操作力/Operating force90gf,250gf ,400gf
尺寸/Dimension11.80*11.90mm
使用壽命/Operating life100,000 cycles
最大額定值/Maximum ratingsDC30V 0.1A
行程/Travel

2.5mm

接触电阻/Contact Resistance
100Ωmax

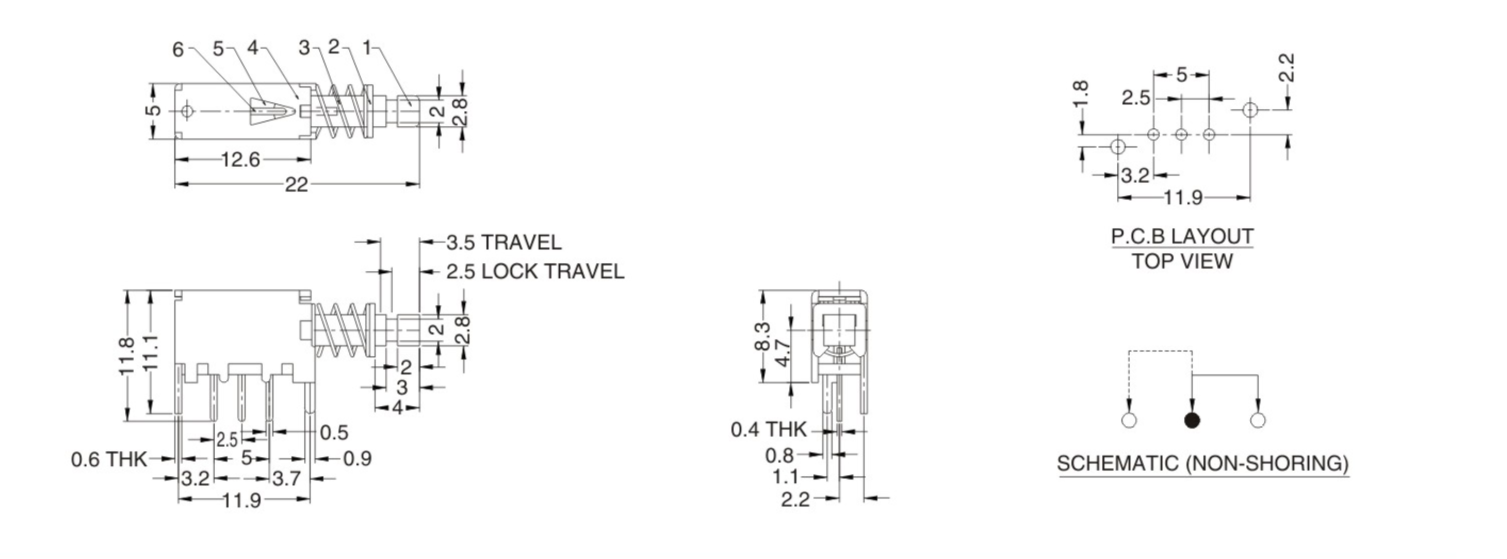

DIMENSIONS

Unit:mm

ModelDimensions

PS-12E05A

PS-12E05A

PS-12E05A
