CODING SWITCH 編碼開關

RS-04 series
RS-04 series
RS-04 series
RS-04 series
NEW MINI ROTARY DIP SWITCHES

RS-04 series

7.40mm*7.40mm 迷你旋转编码开关 FEATURE ‧7.20mm*7.20mm ‧vertical SMD ‧0-9 0-13 1-3 Position APPLICATIONS ‧ Mainly used in automotive electronics, multimedia audio, instruments and meters, household appliances, smart home, computer, medical equipment and other fields.


產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
接觸電阻/Contact resistance80mA
操作力/Operating force120gf±30gf
尺寸/Dimension7.40*7.40mm
使用壽命/Operating life25,000  cycles
絕緣電阻Insulation resistance100mA
防水等級/waterproof levelIP67

DIMENSIONS

Unit:mm

ModelDimensions

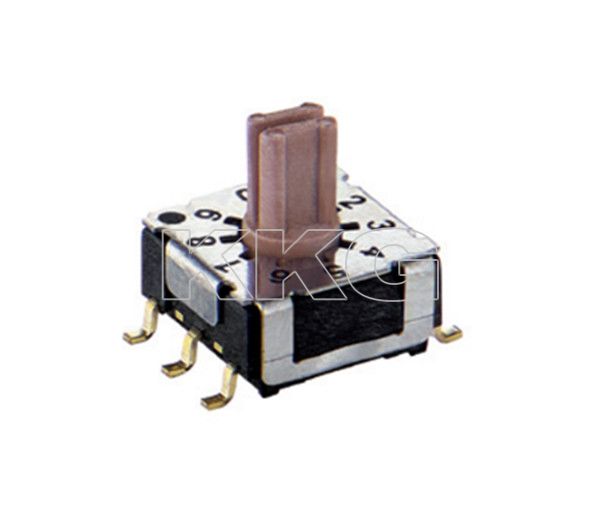

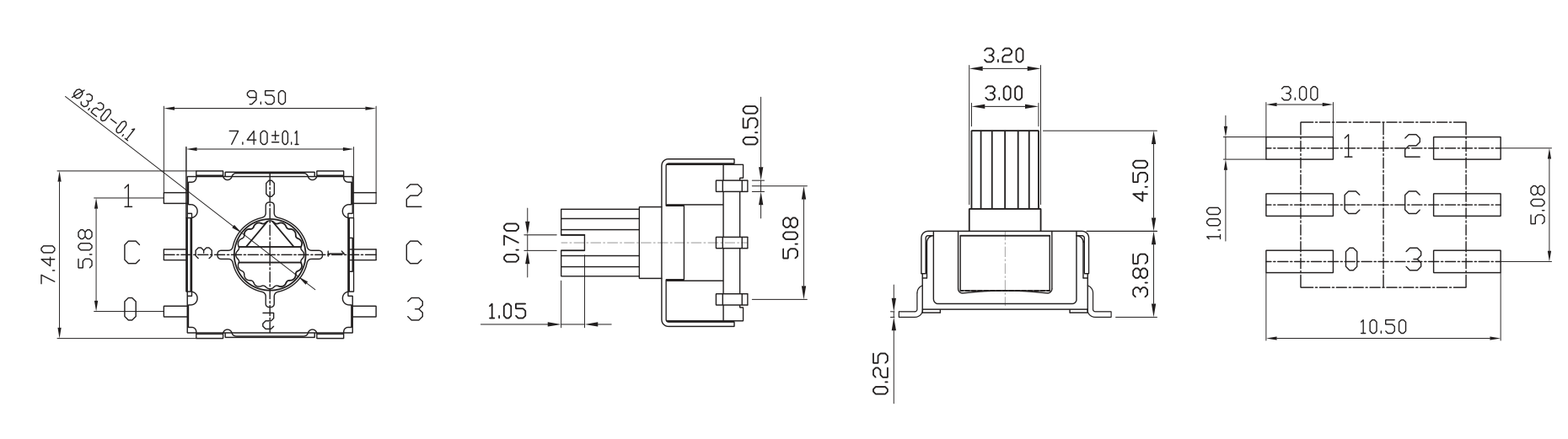

RS-04-01RS-04 series

RS-04 series

Unit:mm


Unit:mm

ModelDimensions

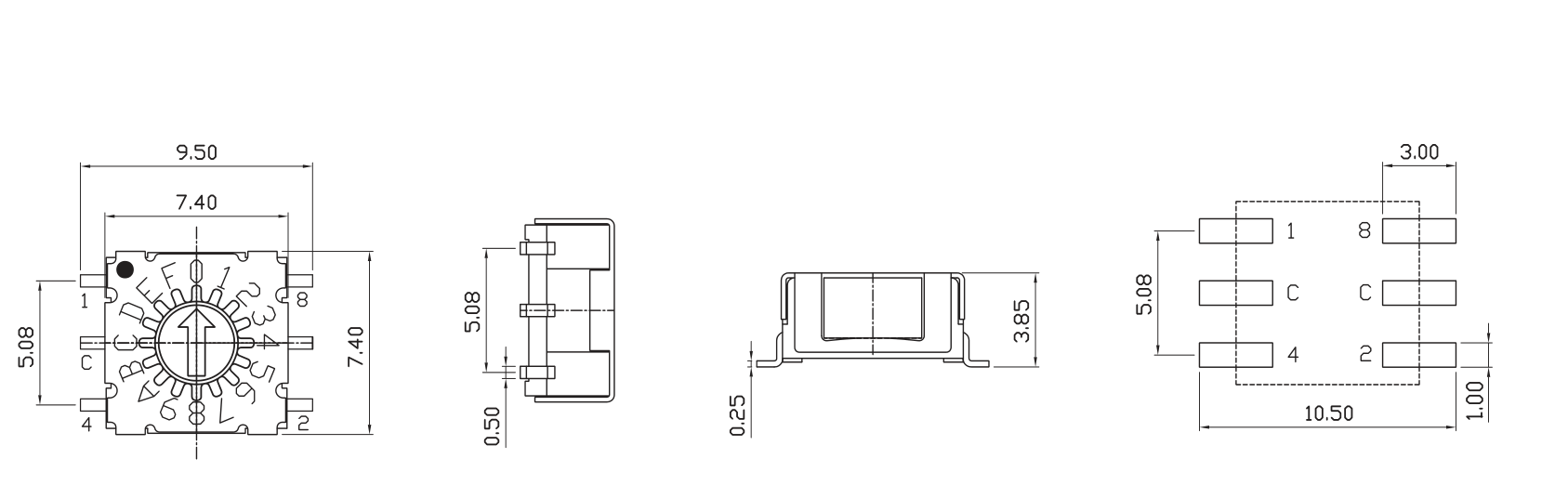

RS-04-02RS-04 series

RS-04 series


ModelDimensions

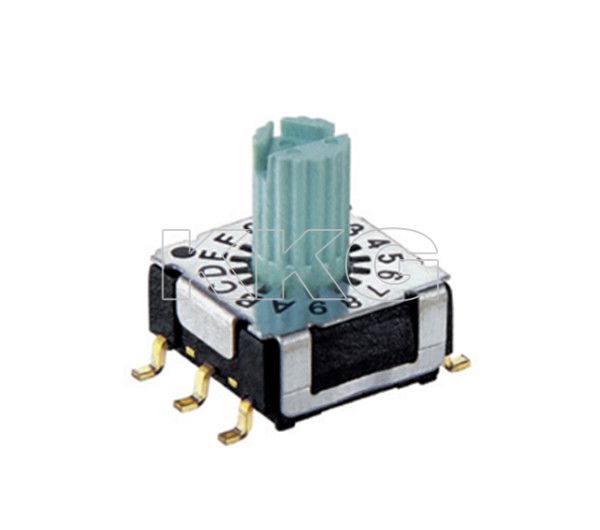

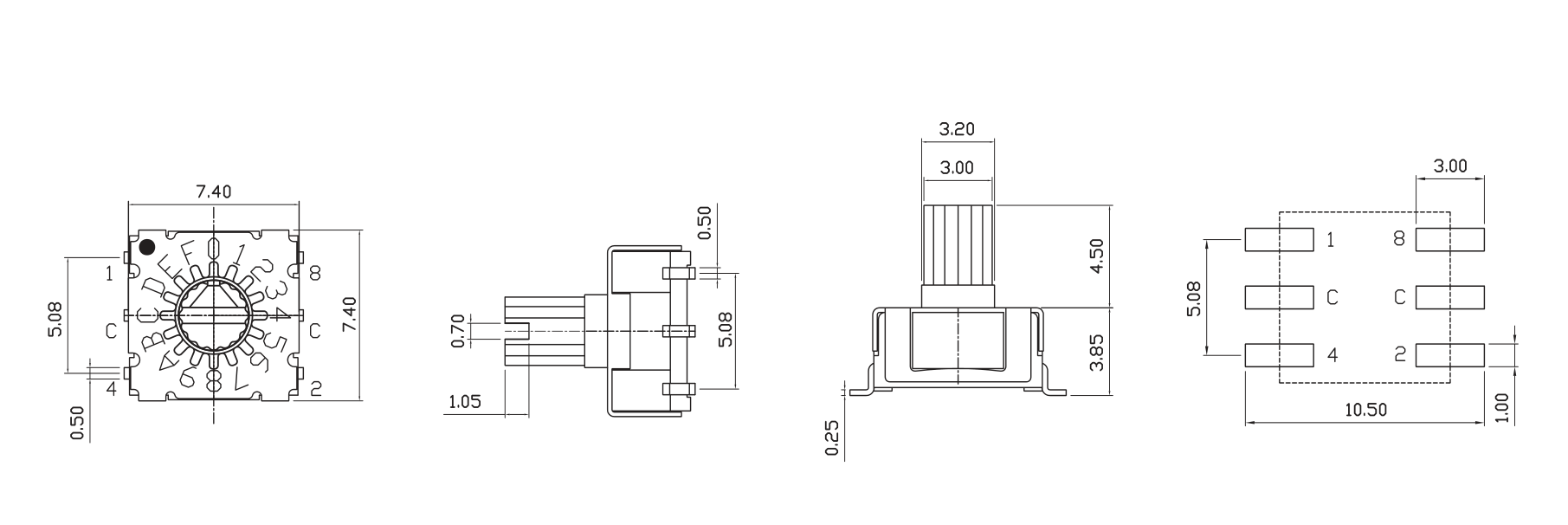

RS-04-03RS-04 series

RS-04 series


ModelDimensions

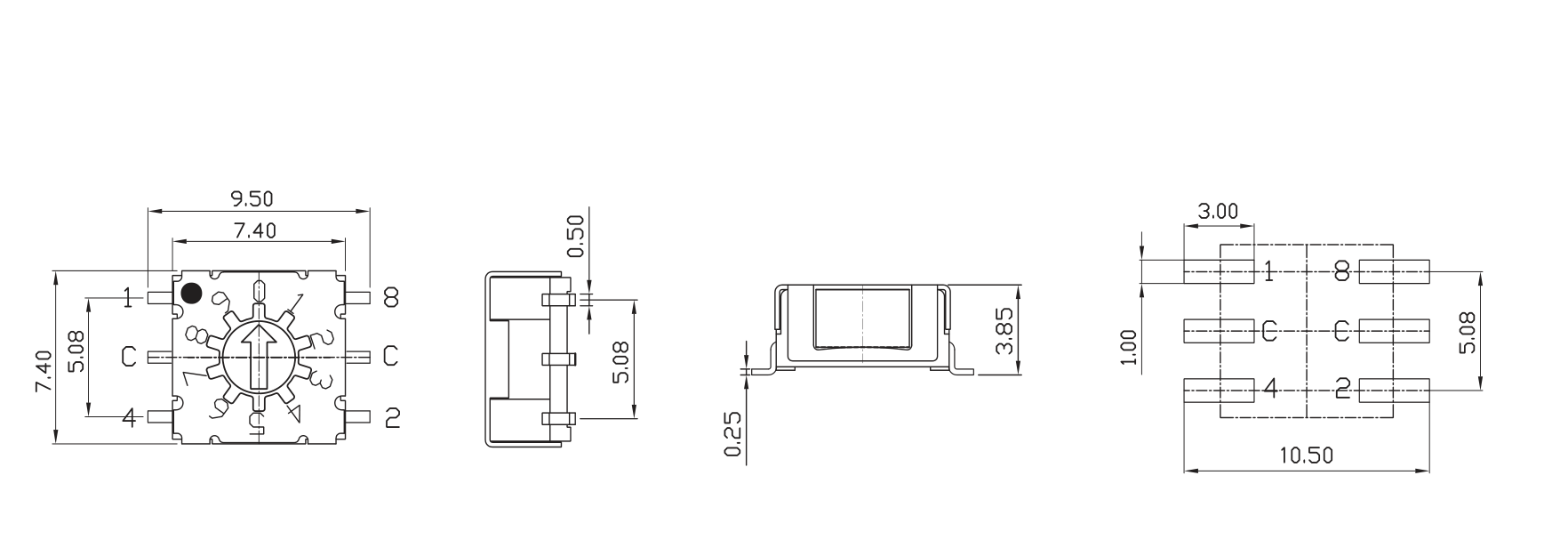

RS-04-04RS-04 series

RS-04 series



ModelDimensions

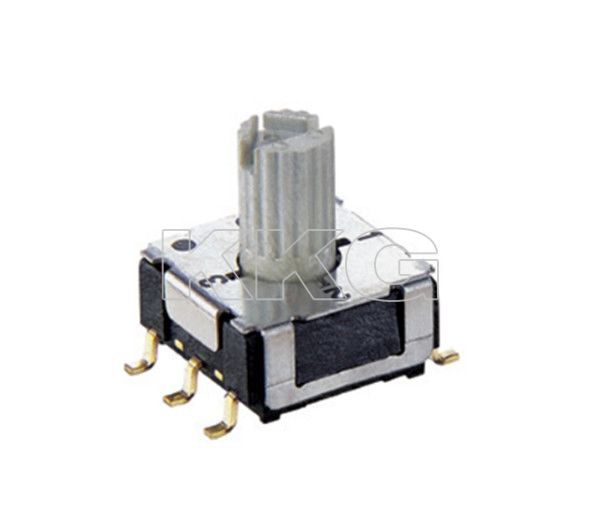

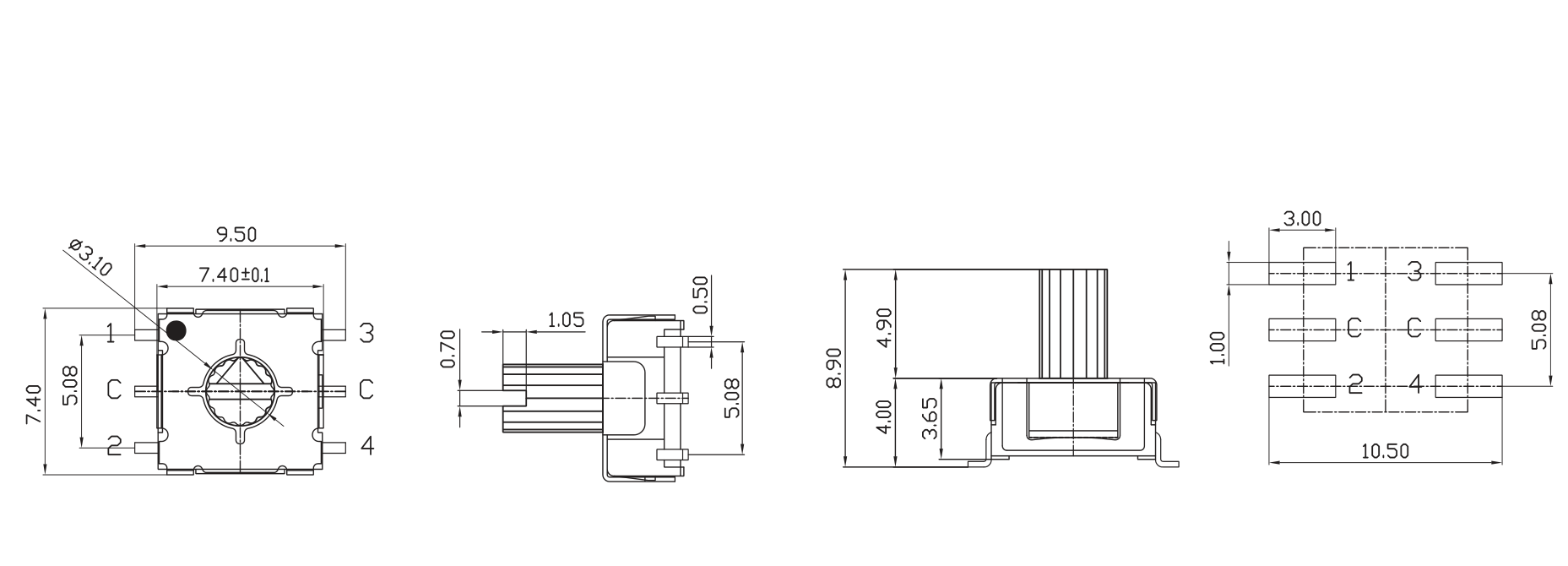

RS-04-05RS-04 series

RS-04 series


ModelDimensions

RS-04-06RS-04 series

RS-04 series
