CODING SWITCH 編碼開關

RS-02 series
RS-02 series
RS-02 series
RS-02 series

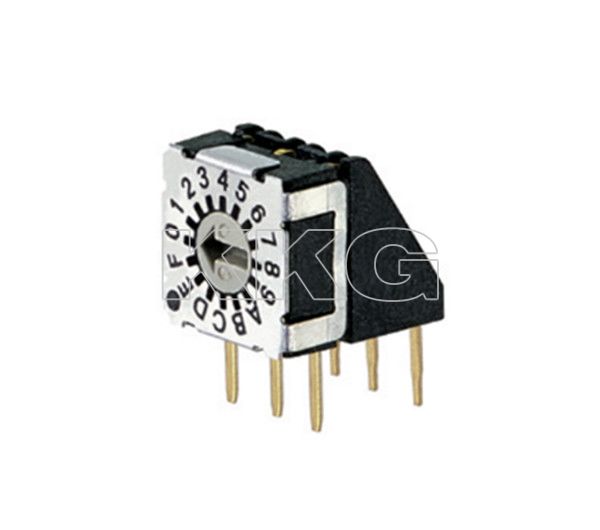

NEW MINI ROTARY DIP SWITCHES

RS-02 series

7.40mm*7.40mm 迷你旋转编码开关 FEATURE ‧7.40mm*7.40mm ‧horizontal DIP ‧0-9 0-F Position APPLICATIONS ‧ Mainly used in automotive electronics, multimedia audio, instruments and meters, household appliances, smart home, computer, medical equipment and other fields.


產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
接觸電阻/Contact resistance80mA
操作力/Operating force120gf±30gf
尺寸/Dimension7.40*7.40mm
使用壽命/Operating life25,000  cycles
絕緣電阻Insulation resistance100mA
防水等級/waterproof levelIP67

DIMENSIONS

Unit:mm

ModelDimensions

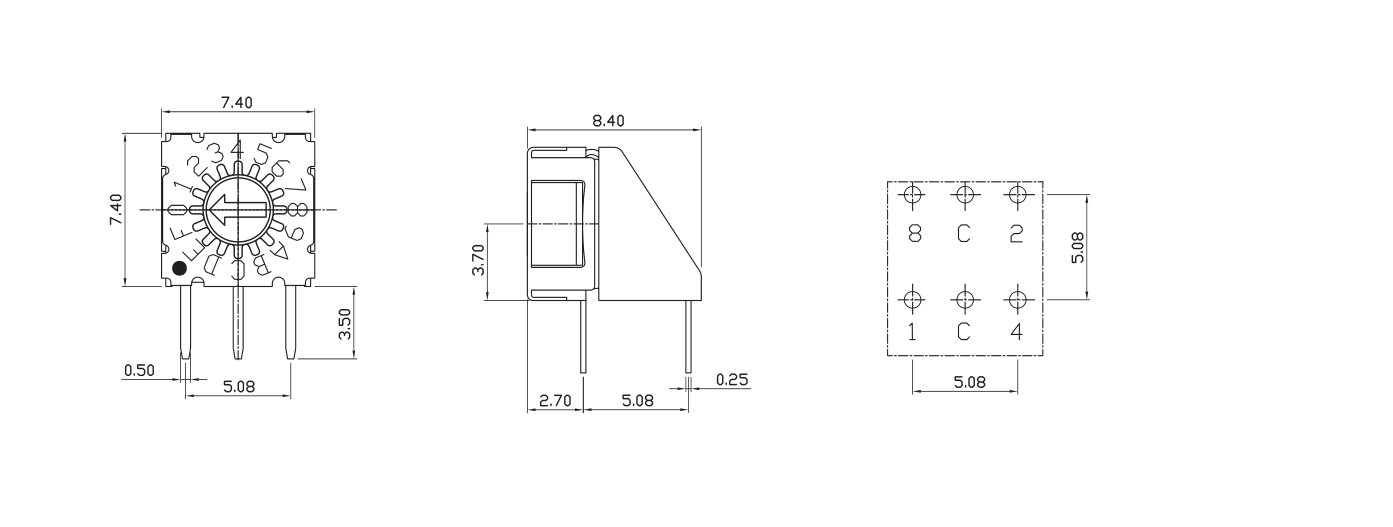

RS-02-01RS-02 series

RS-02 series

Unit:mm


Unit:mm

ModelDimensions

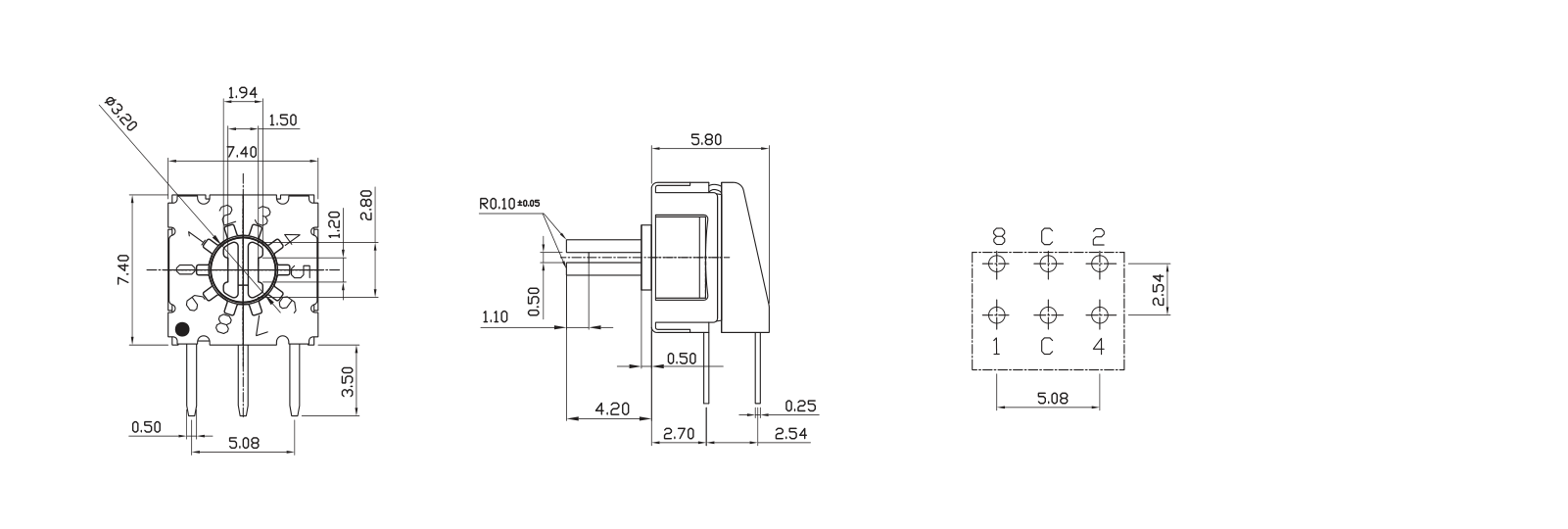

RS-02-02RS-02 series

RS-02 series


ModelDimensions

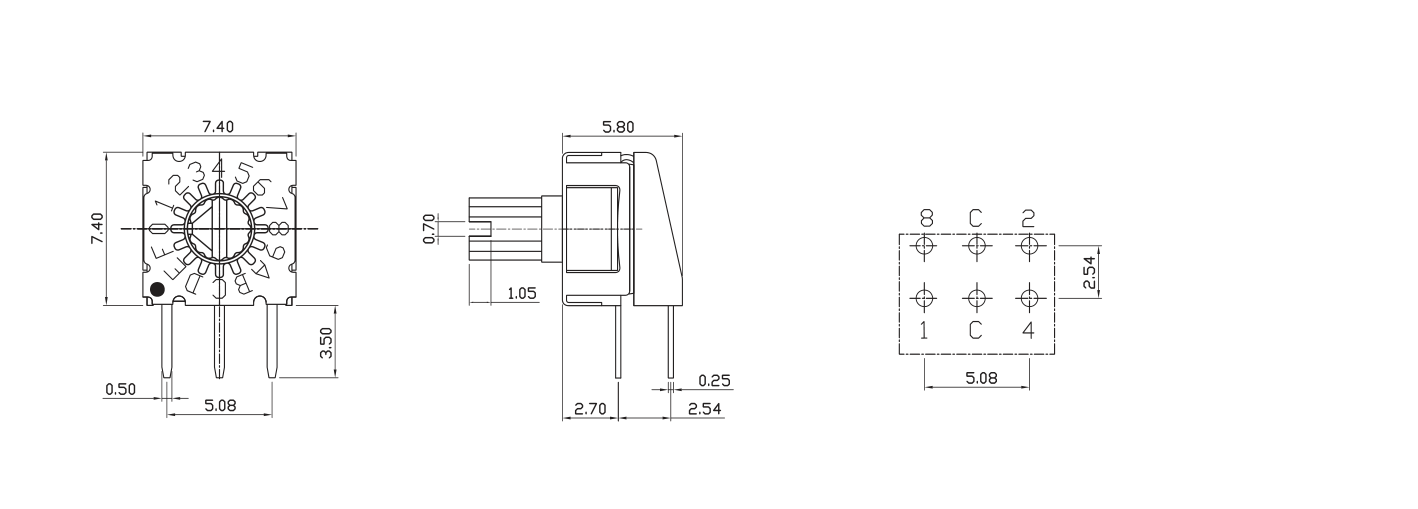

RS-02-03RS-02 series



RS-02 series


ModelDimensions

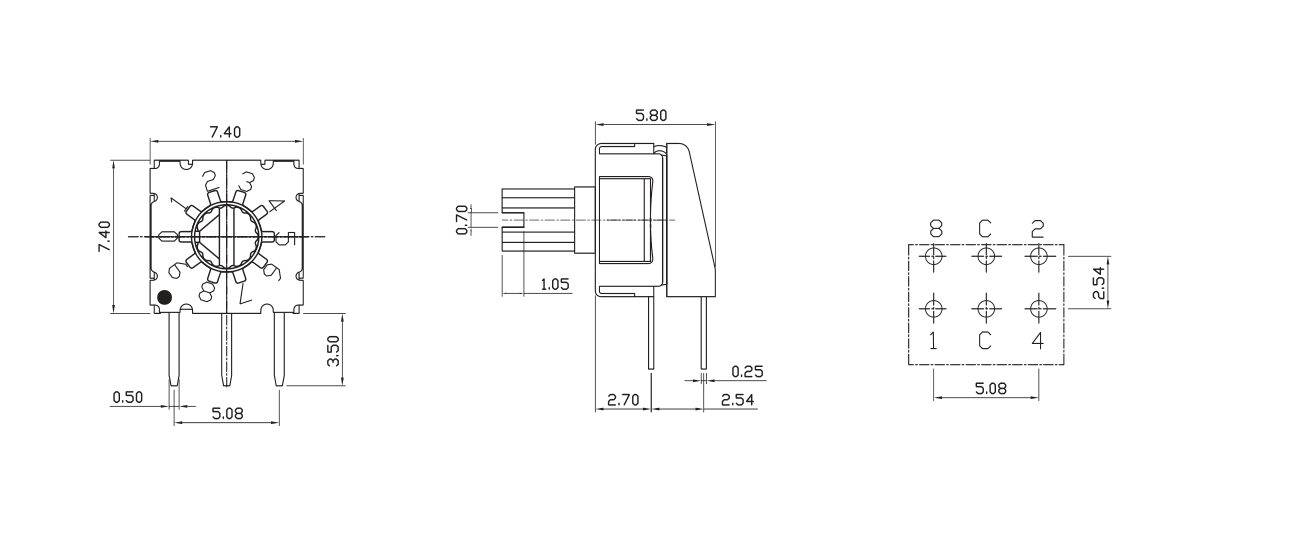

RS-02-04RS-02 series

RS-02 series



ModelDimensions

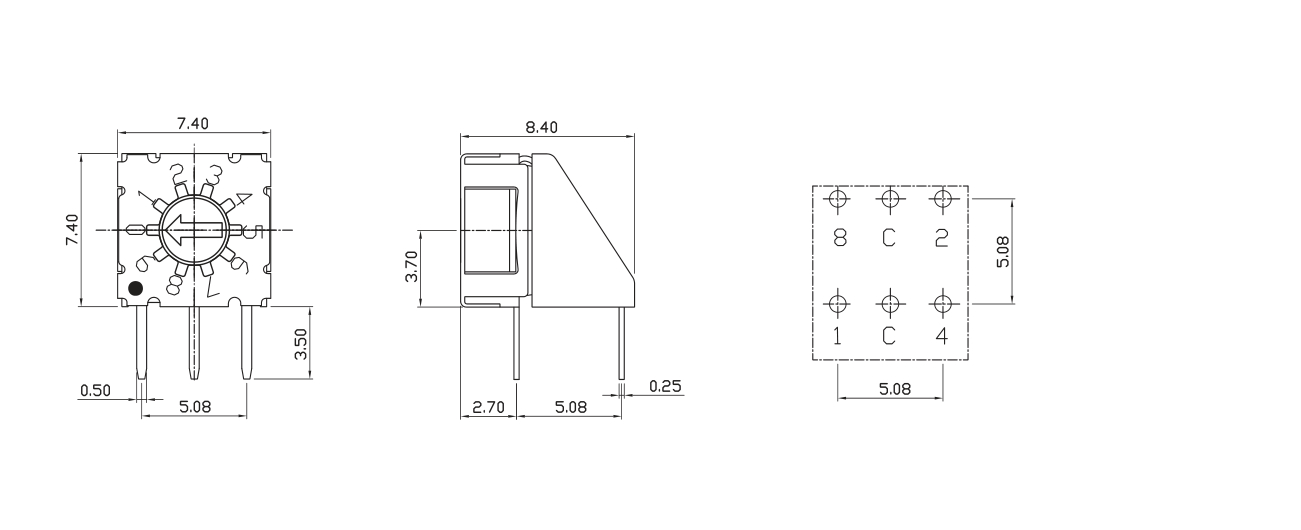

RS-02-05RS-02 series



RS-02 series
