CODING SWITCH 編碼開關

RS-03 series
RS-03 series
RS-03 series
RS-03 series
NEW MINI ROTARY DIP SWITCHES

RS-03 series

7.20mm*7.20mm 迷你旋转编码开关 FEATURE ‧7.20mm*7.20mm ‧0-9 Position APPLICATIONS ‧ Mainly used in automotive electronics, multimedia audio, instruments and meters, household appliances, smart home, computer, medical equipment and other fields.


產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
接觸電阻/Contact resistance80mA
操作力/Operating force120gf±30gf
尺寸/Dimension7.20*7.20mm
使用壽命/Operating life25,000  cycles
絕緣電阻Insulation resistance100mA
防水等級/waterproof levelIP67

DIMENSIONS

Unit:mm

ModelDimensions

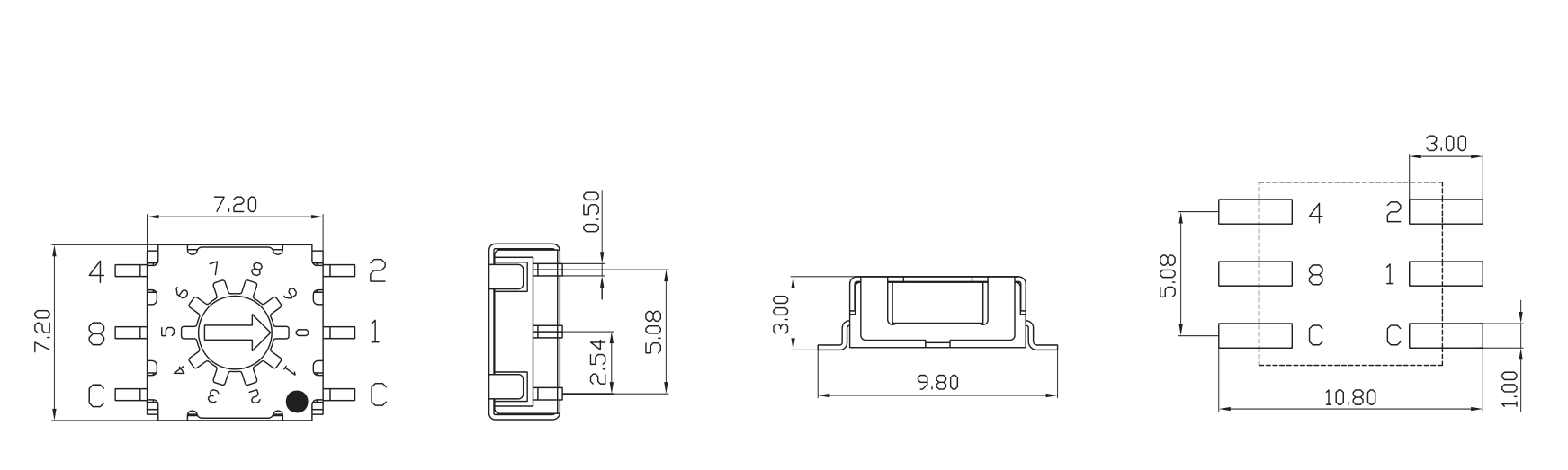

RS-03-01RS-03 series

RS-03 series

Unit:mm


Unit:mm

ModelDimensions

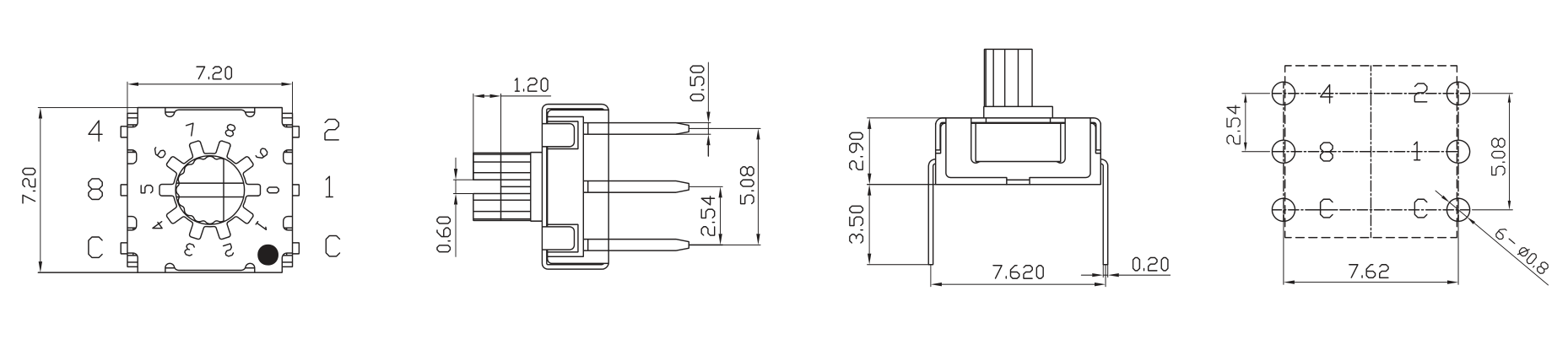

RS-03-02RS-03 series

RS-03 series


ModelDimensions

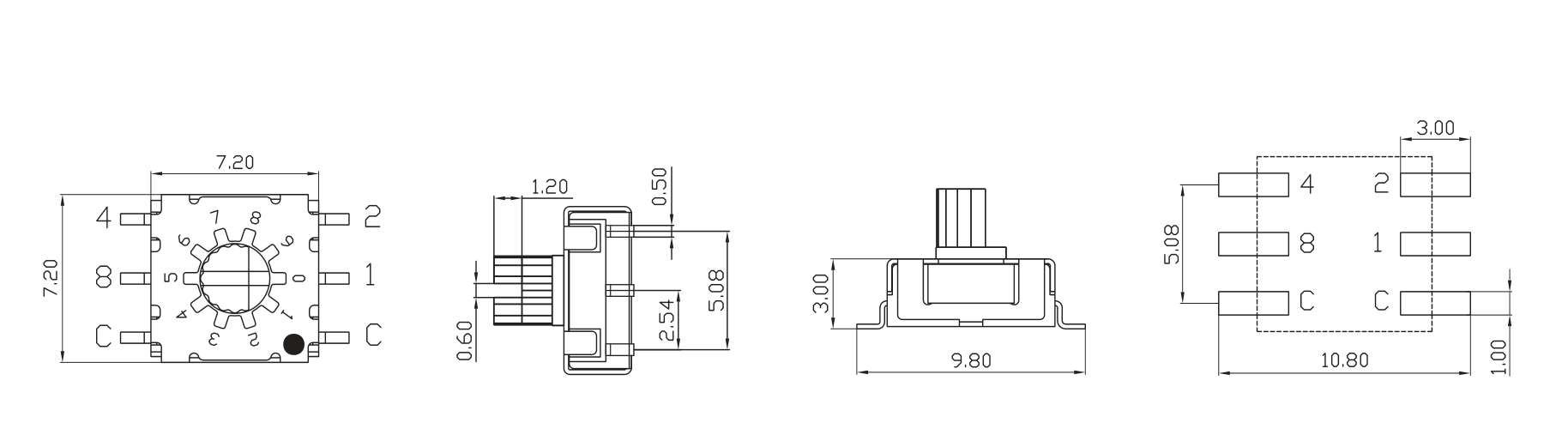

RS-03-03RS-03 series



RS-03 series


ModelDimensions

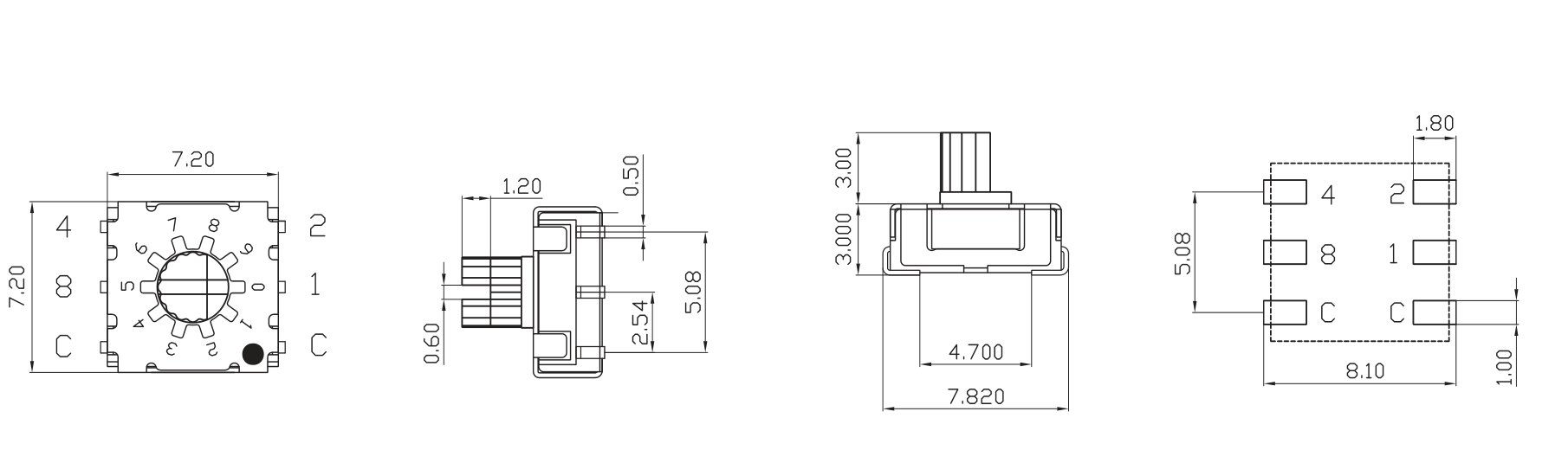

RS-03-04RS-03 series

RS-03 series



ModelDimensions

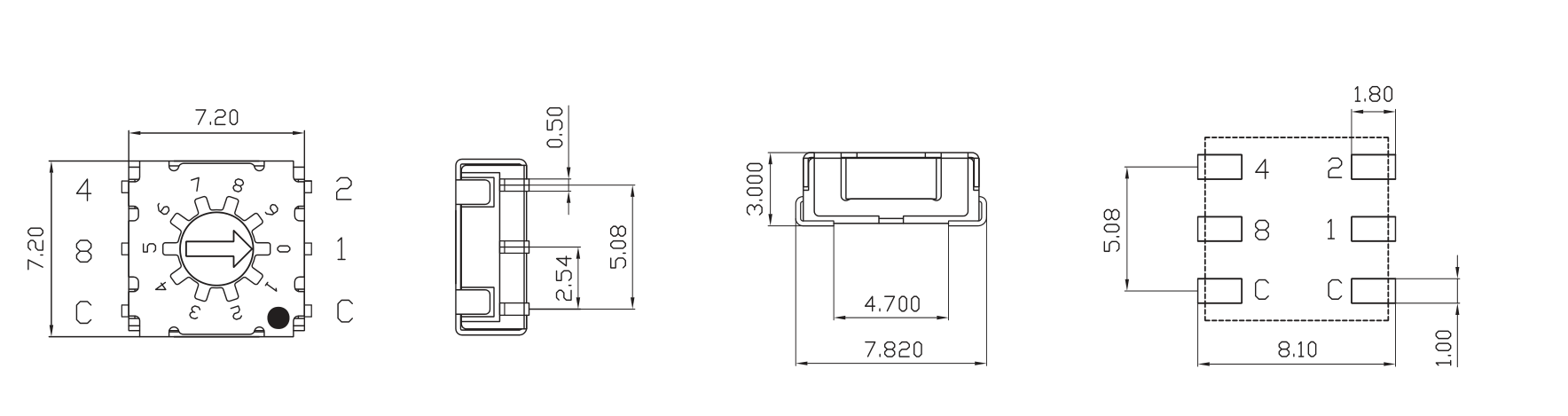

RS-03-05RS-03 series



RS-03 series
