防水鈕子開關

TG-SW2TE series
Waterproof Twizz switch

TG-SW2TE series

立式卧式DIP IP67 防水切换開關 FEATURE Small contact resistance, accurate operating force error, diversified specifications and other advantages miniature waterproof APPLICATIONS Suitable for consumer products, computer products, test instruments, communication equipment, etc


產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
CONTACT RATING Max 0.4 VA max @ 48 VAC or DC.
MECHANICAL LIFE minimum 40,000 operations.
CONTACT RESISTANCE50 m Ω max.
INSULATION RESISTANCE 1,000MΩmin.
DIELECTRIC STRENGTH  500 Vrms min.@sea level.
OPERATING TEMPERATURE-20°C to 85°C.

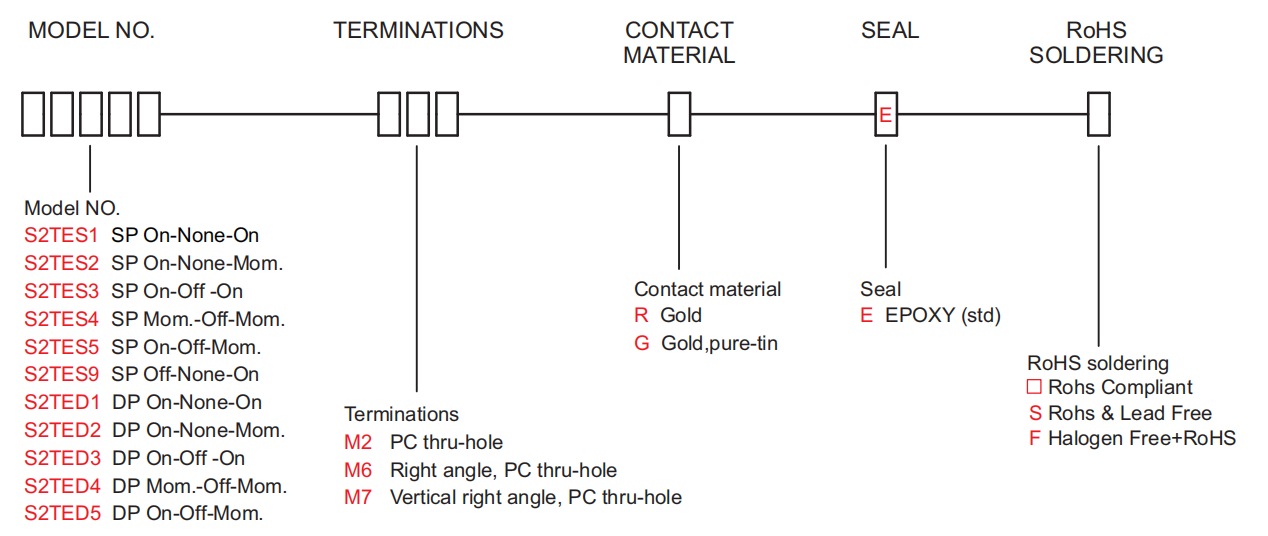

HOW  TO  ORDER

                          TG-SW2TE series

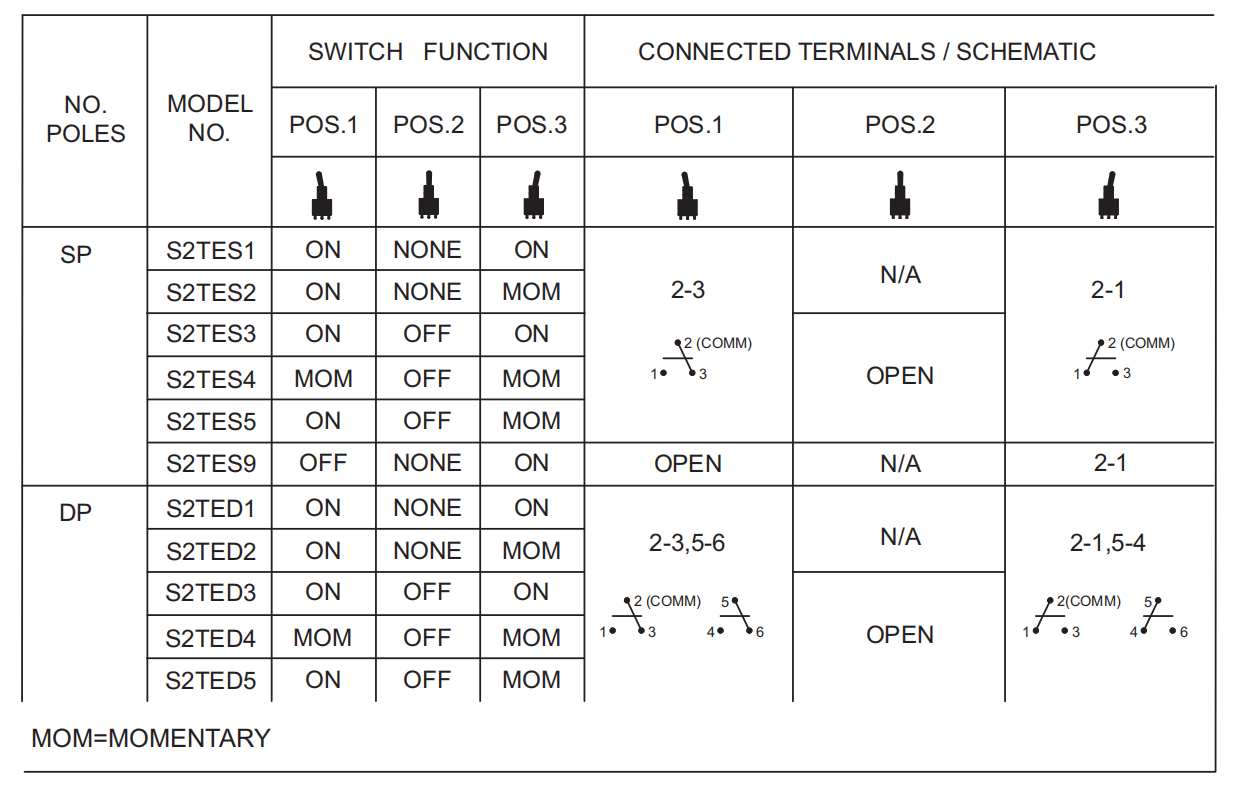

SWITCH  FUNCTION

                          TG-SW2TE series
