TOGGLE SWITCH 鈕子開關

TG-AW series
TG-AW series
TG-AW series
TG-AW series
TG-AW series

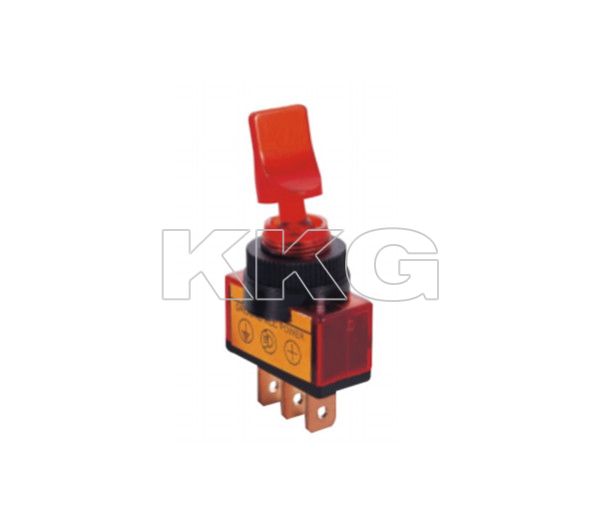

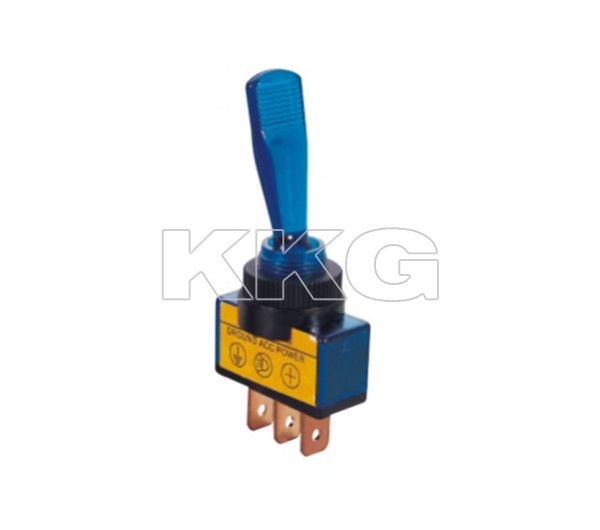

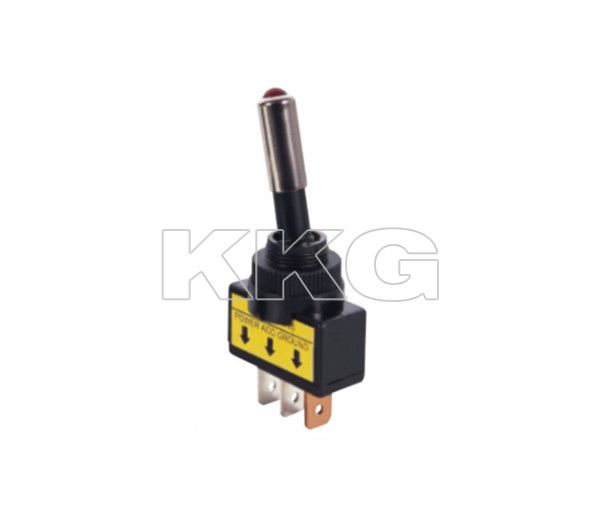

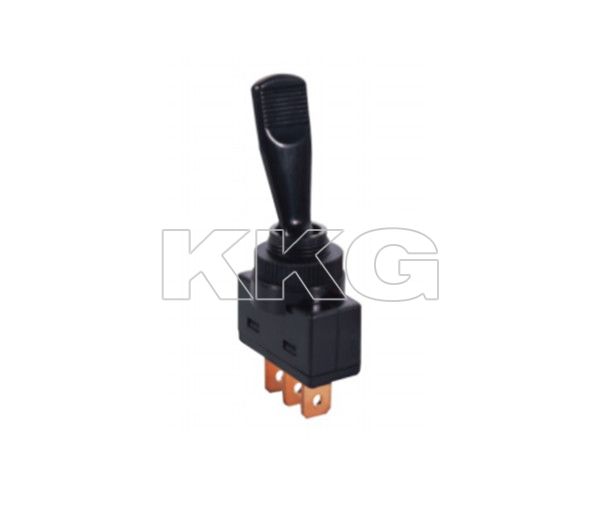

Illuminated toggle switch

TG-AW series

立式DIP 带灯切换開關 FEATURE Small contact resistance, accurate operating force error, diversified specifications and other advantages APPLICATIONS Suitable for consumer products, computer products, test instruments, communication equipment, etc


產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
Contact resistance  <50mΩ
Insulation resistance500VDC≥1000MΩ
Withstand voltage1500VAC
Electrical life1,0000 cycles
Mechanical life 4,0000 cycles
Operating temperature-25°C to 85°C.


DIMENSIONS

ModelDimensions

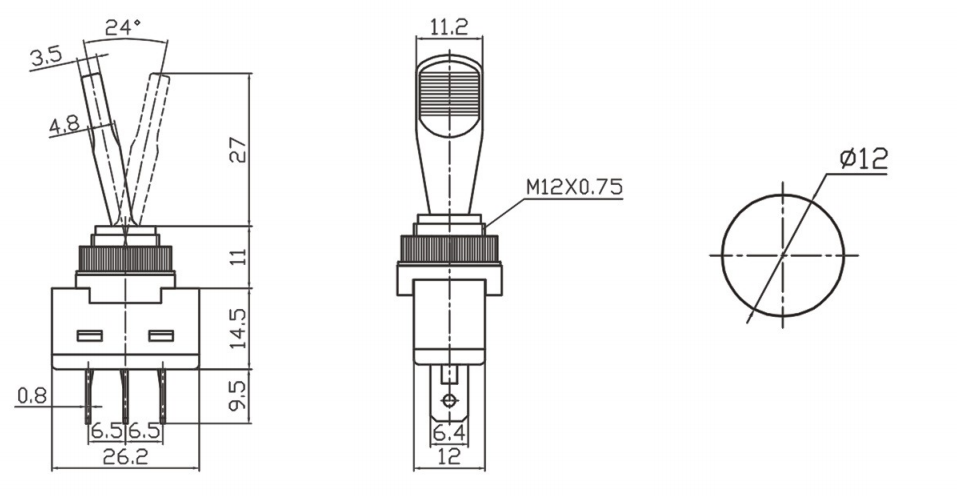

TG-AW-13D

TG-AW series


TG-AW series

ModelDimensions

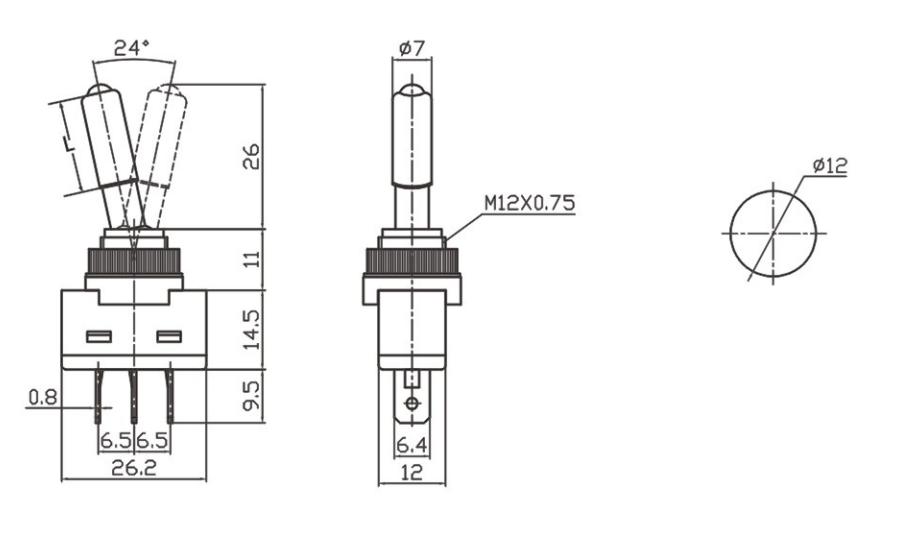

TG-AW-13

TG-AW series


TG-AW series

ModelDimensions

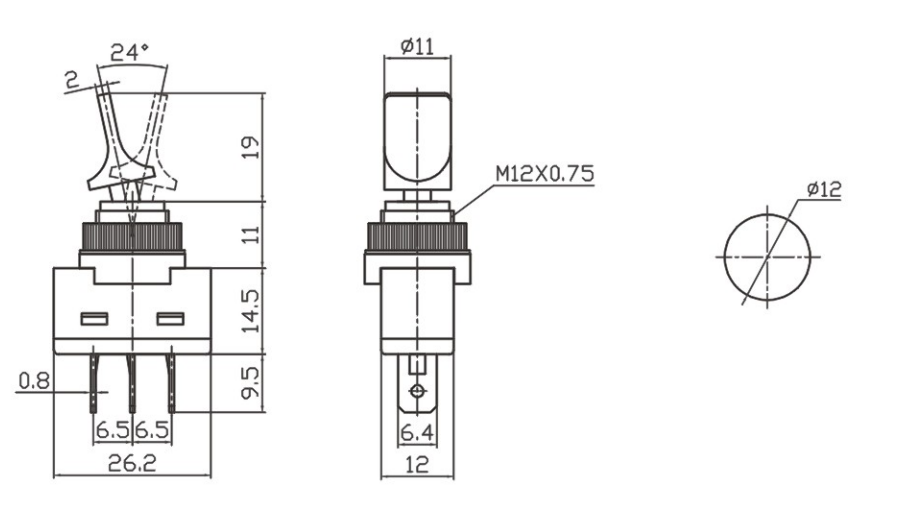

TG-AW-14D

TG-AW series


TG-AW series

ModelDimensions

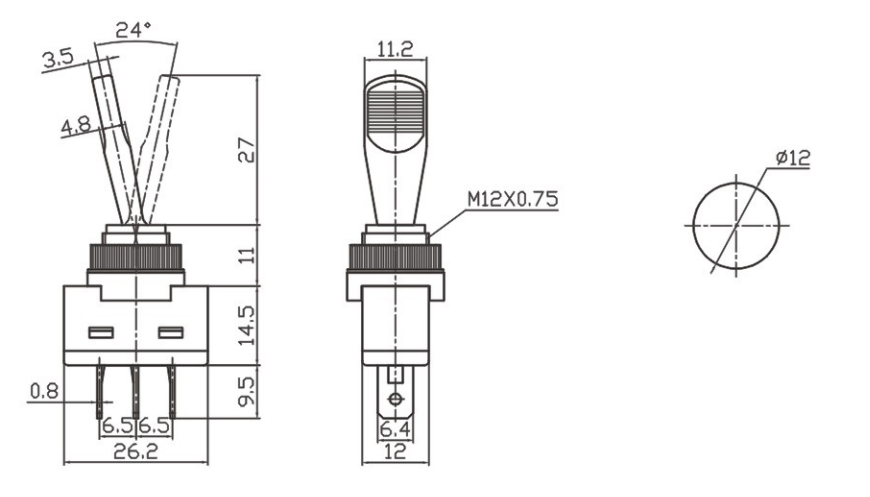

TG-AW-15D

TG-AW series


TG-AW series
